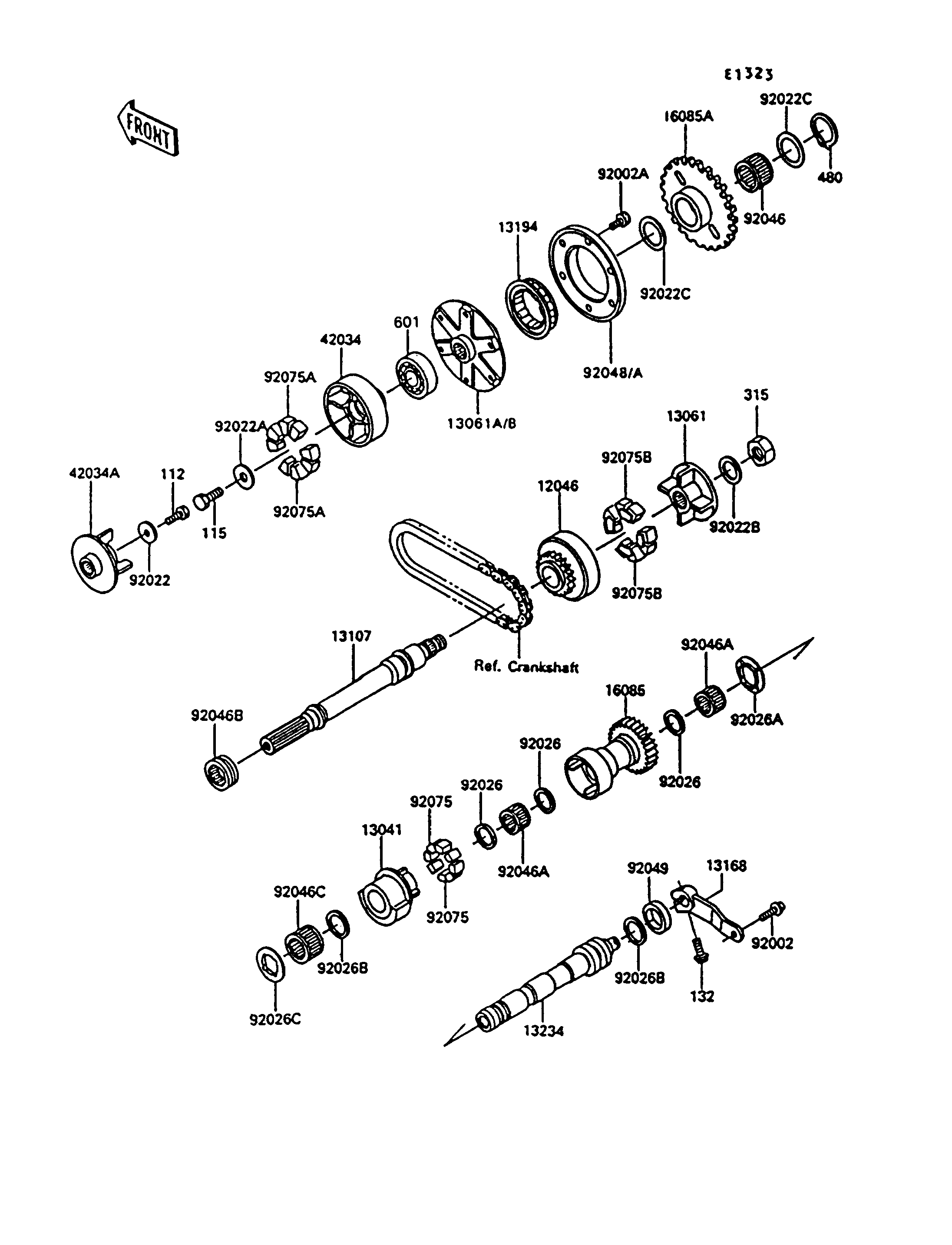

1994 Concours - Balancer

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,GENERATOR 12046 12046-1083 1
BALANCER 13041 13041-1064 1
BOSS,SPROCKET 13061 13061-1183 1
BOSS 13061B 13061-1264 1
SHAFT 13107 13107-1108 1
LEVER,BALANCER 13168 13168-1236 1
CLUTCH-ONEWAY 13194 13194-1086 1
SHAFT-COMP,BALNCER 13234 13234-1072 1
GEAR,BALANCER 16085 16085-1139 1
GEAR,ONEWAY CLUTCH 16085A 16085-1173 1
COUPLING 42034 42034-1055 1
COUPLING 42034A 42034-1056 1
BOLT,6X16 92002 92002-1439 1
BOLT,SOCKET,6X12 92002A 92002-1796 6
WASHER,6X19.5X2 92022 92022-1517 1
WASHER,8X22X3 92022A 92022-1518 1
WASHER,16X26X2 92022B 92022-1519 1
WASHER,25.3X32X0.5 92022C 92022-225 2
SPACER,21.3X24.3X1.5 92026 92026-1213 3
SPACER,T=1.5 92026A 92026-1214 1
SPACER,21.3X26X1 92026B 92026-1223 2
SPACER 92026C 92026-1271 1
BEARING-NEEDLE,K253020S 92046 92046-1022 1
BEARING-NEEDLE,K21X25X17V2 92046A 92046-1105 2
BEARING-NEEDLE,RNA4903 92046B 92046-1109 1
BEARING-NEEDLE 92046C 92046-1155 1
RACE,ONEWAY CLUTCH 92048A 92048-1068 1
SEAL-OIL,S192705 92049 92049-1174 1
DAMPER,BALANCER 92075 92075-1709 8
DAMPER,COUPLING 92075A 92075-1790 4
DAMPER,COUPLING 92075B 92075-1810 4
BOLT-UPSET 112 112G0616 1
BOLT-SMALL-UPSET 115 115G0820 1
BOLT-FLANGED-SMALL 132 132J0620 1
NUT-HEX-FINE 315 315G1600 1
CIRCLIP-TYPE-C,25MM 480 480J2500 1
BEARING-BALL,#6203 601 601A6203 1
