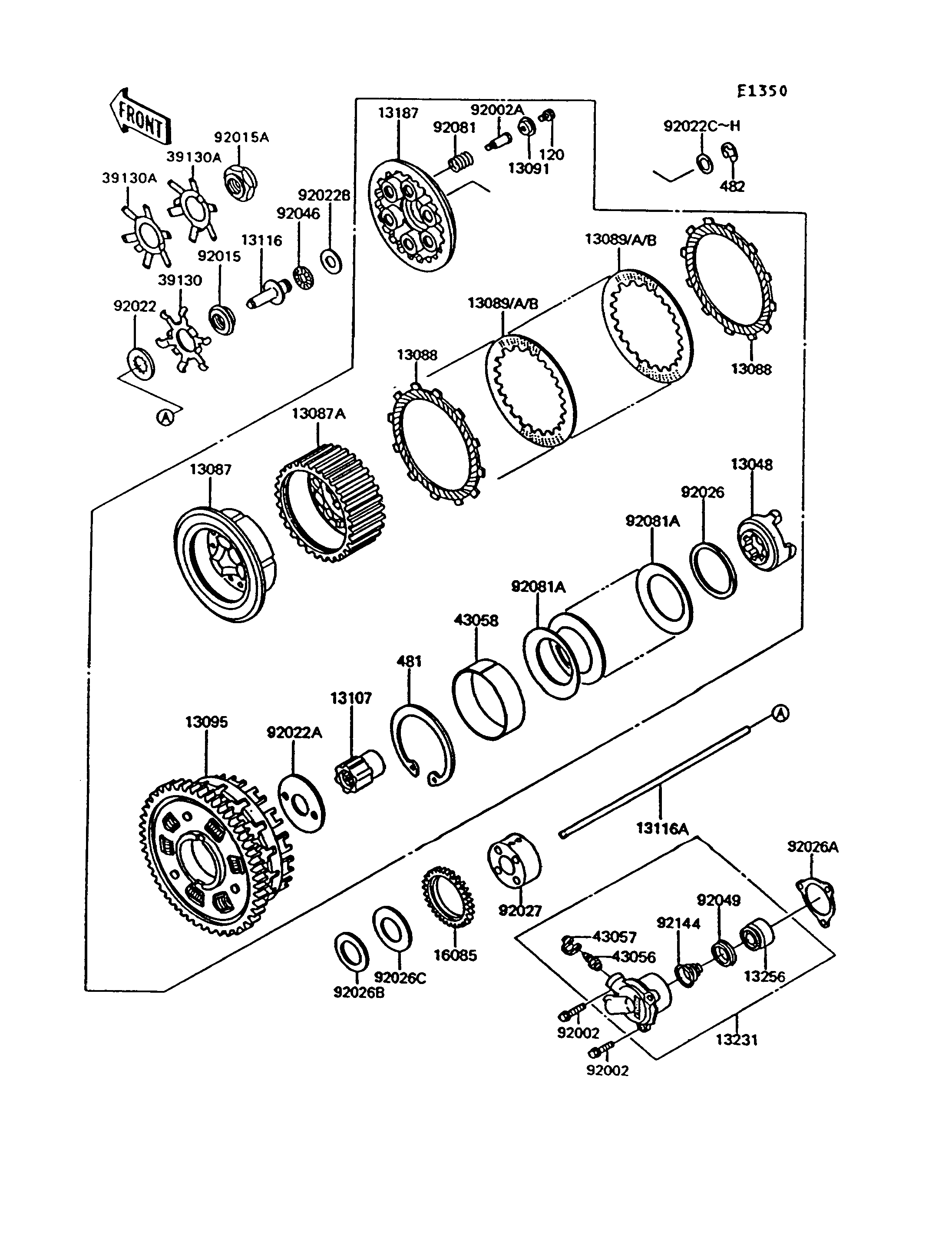

1994 Concours - Clutch

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAM-DAMPER 13048 13048-1007 1
HUB-CLUTCH 13087 13087-1071 1
HUB-CLUTCH 13087A 13087-1072 1
PLATE-FRICTION 13088 13088-1051 9
PLATE-CLUTCH,T=2.3 13089 13089-1004 AR
PLATE-CLUTCH,T=2.6 13089A 13089-1067 AR
PLATE-CLUTCH,T=2.0 13089B 13089-1068 AR
HOLDER,CLUTCH SPRING 13091 13091-1041 6
HOUSING-COMP-CLUTCH 13095 13095-1146 1
SHAFT,CLUTCH 13107 13107-1299 1
ROD-PUSH,CLUTCH 13116 13116-1119 1
ROD-PUSH,CLUTCH 13116A 13116-1140 1
PLATE-CLUTCH OPERATING 13187 13187-1055 1
RELEASE-ASSY-CLUTCH 13231 13231-1067 1
PISTON 13256 13256-1052 1
GEAR,OIL PUMP 16085 16085-1108 1
SPRING-LEAF 39130A 39130-1071 2
BREATHER-BRAKE 43056 43056-1052 1
CAP-BREATHER 43057 43057-1001 1
RING 43058 43058-1059 1
BOLT,6X25 92002 92002-1344 3
BOLT,CLUTCH 92002A 92002-1639 6
NUT 92015A 92015-1929 1
WASHER,TOOTHED,25X40X5 92022 92022-1114 1
WASHER,CLUTCH THRUST 92022A 92022-1221 1
WASHER,15.1X29X1.0 92022B 92022-1463 1
WASHER,15.1X23X1.0 92022C 92022-1750 AR
WASHER,15.1X23X0.8 92022D 92022-1751 AR
WASHER,15.1X23X1.2 92022E 92022-1752 AR
WASHER,15.1X23X1.4 92022F 92022-1753 AR
WASHER,15.1X23X1.6 92022G 92022-1754 AR
WASHER,15.1X23X1.8 92022H 92022-1755 AR
SPACER,59X70X3.5 92026 92026-1043 1
SPACER,CLUTCH RELEASE 92026A 92026-1263 1
SPACER,25X45X2.0 92026B 92026-1306 1
SPACER,25X62X2.0 92026C 92026-1307 1
COLLAR 92027 92027-1710 1
BEARING-NEEDLE,AXK1102 92046 92046-1052 1
SEAL-OIL,PISTON 92049 92049-1165 1
SPRING,CLUTCH 92081 92081-1114 6
SPRING 92081A 92081-1906 7
SPRING,CLUTCH RELEASE 92144 92144-1084 1
BOLT-SOCKET,6X16 120 120Q0616 6
CIRCLIP 481 481J9500 1
CIRCLIP-TYPE-E,12MM 482 482J0200 1
