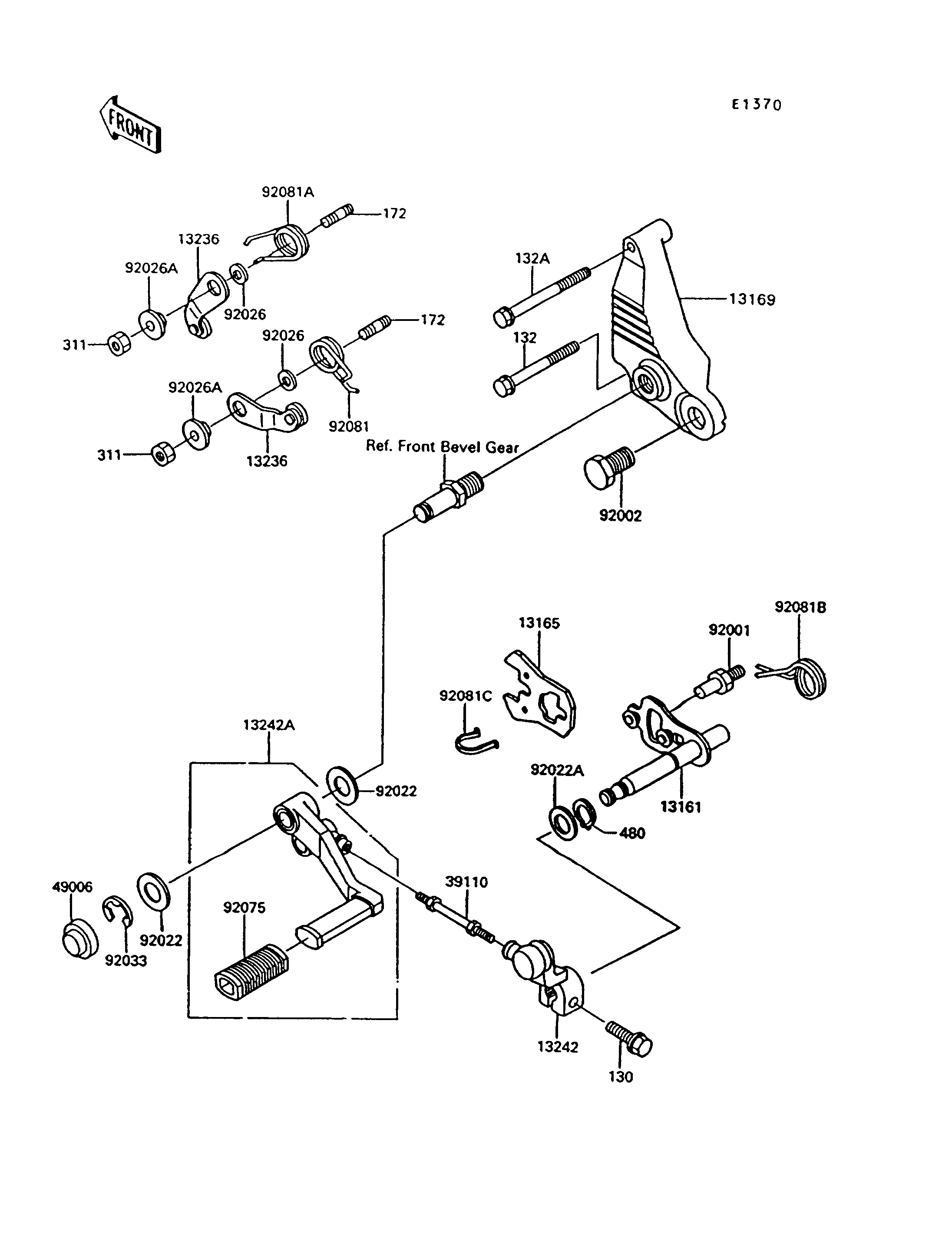

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1123 | 1 | ||
| PAWL | 13165 | 13165-1120 | 1 | ||
| PLATE,CHANGE PEDAL | 13169 | 13169-1663 | 1 | ||
| LEVER-COMP,GEAR POSITION | 13236 | 13236-1103 | 2 | ||
| LEVER-ASSY-CHANGE | 13242 | 13242-1195 | 1 | ||
| LEVER-ASSY-CHANGE,PEDAL | 13242A | 13242-1213 | 1 | ||
| ROD-ASSY-TIE,CHANGE PEDAL | 39110 | 39110-1071 | 1 | ||
| BOOT,CHANGE LEVER | 49006 | 49006-1061 | 1 | ||
| BOLT,RETURN SPRING | 92001 | 92001-1455 | 1 | ||
| BOLT | 92002 | 92002-1816 | 1 | ||
| WASHER,12.5X22X1.2 | 92022 | 92022-1593 | 2 | ||
| WASHER,13.3X18X1 | 92022A | 92022-1772 | 1 | ||
| SPACER,6.3X12X1.0 | 92026 | 92026-094 | 2 | ||
| SPACER | 92026A | 92026-1217 | 2 | ||
| RING-SNAP,TYPE-E,10MM | 92033 | 92033-1178 | 1 | ||
| DAMPER,CHANGE PEDAL | 92075 | 92075-1175 | 1 | ||
| SPRING | 92081 | 92081-1645 | 1 | ||
| SPRING | 92081A | 92081-1742 | 1 | ||
| SPRING,CHANGE PEDAL RETURN | 92081B | 92081-1750 | 1 | ||
| SPRING,CHANGE LEVER | 92081C | 92081-1829 | 1 | ||
| BOLT-FLANGED,6X20,BLACK | 130 | 130S0620 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0660 | 1 | ||
| BOLT-FLANGED-SMALL | 132A | 132J0670 | 1 | ||
| BOLT-STUD,6X14 | 172 | 172G0614 | 2 | ||
| NUT-HEX,6MM | 311 | 311G0600 | 2 | ||
| CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 |
| LEVER-COMP-CHANGE SHAFT | |
| REF # | 13161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAWL | |
| REF # | 13165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CHANGE PEDAL | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP,GEAR POSITION | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-CHANGE | |
| REF # | 13242 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-CHANGE,PEDAL | |
| REF # | 13242A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-TIE,CHANGE PEDAL | |
| REF # | 39110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,CHANGE LEVER | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,RETURN SPRING | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,12.5X22X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,13.3X18X1 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,6.3X12X1.0 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,TYPE-E,10MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CHANGE PEDAL | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CHANGE PEDAL RETURN | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CHANGE LEVER | |
| REF # | 92081C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X20,BLACK | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-STUD,6X14 | |
| REF # | 172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,13MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
