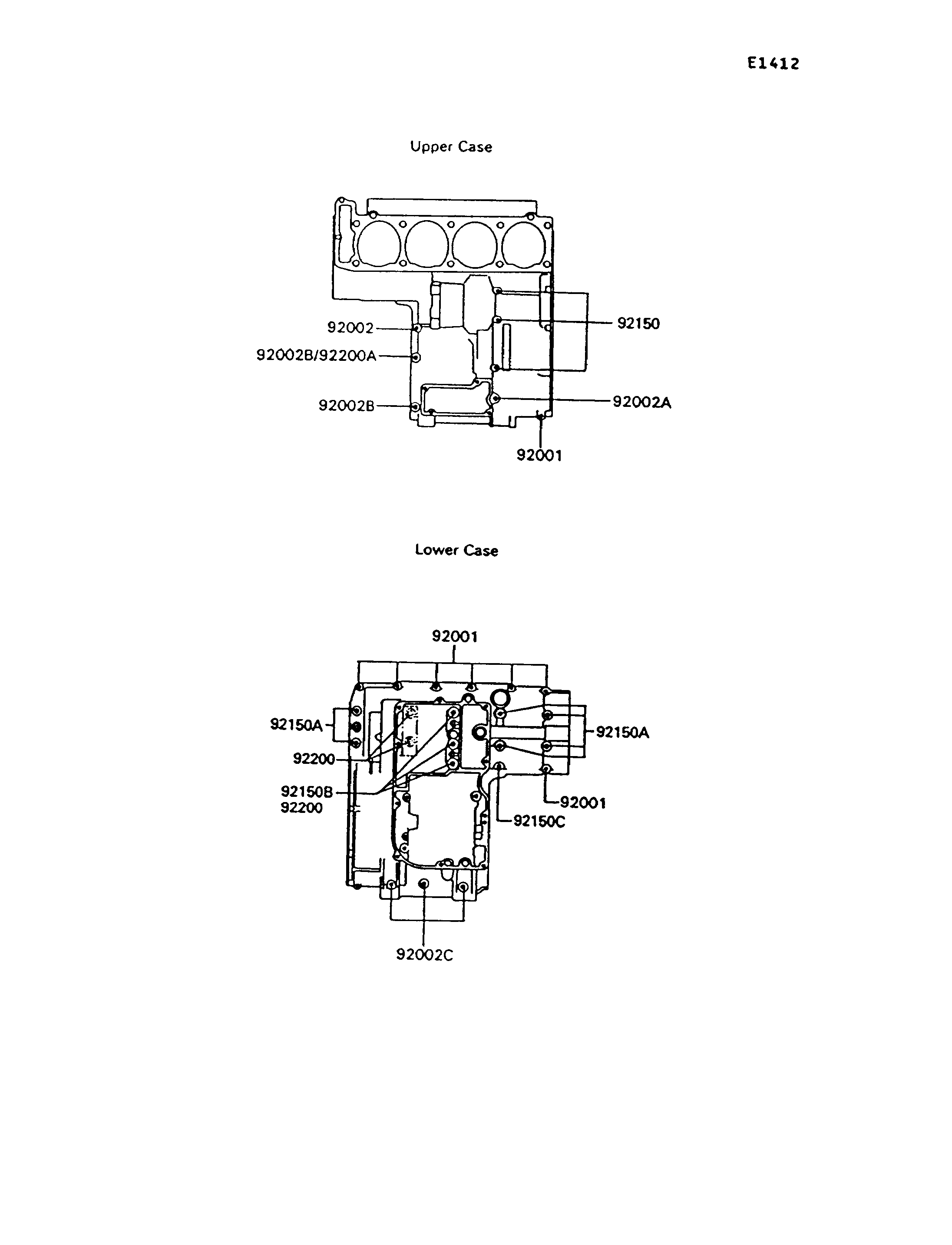

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,6X38 92001 92001-1899 8
BOLT,6X55 92002 92002-1054 1
BOLT,6X85 92002A 92002-1306 1
BOLT,8X63 92002B 92002-1308 2
BOLT,6X120 92002C 92002-1654 3
BOLT,6X115 92150 92150-1140 3
BOLT,9X90 92150A 92150-1364 6
BOLT,9X140 92150B 92150-1365 3
BOLT,7X38 92150C 92150-1367 1
WASHER,9.5X18X1.2 92200 92200-1037 5
WASHER,8.5X16X1.2 92200A 92200-1063 1
