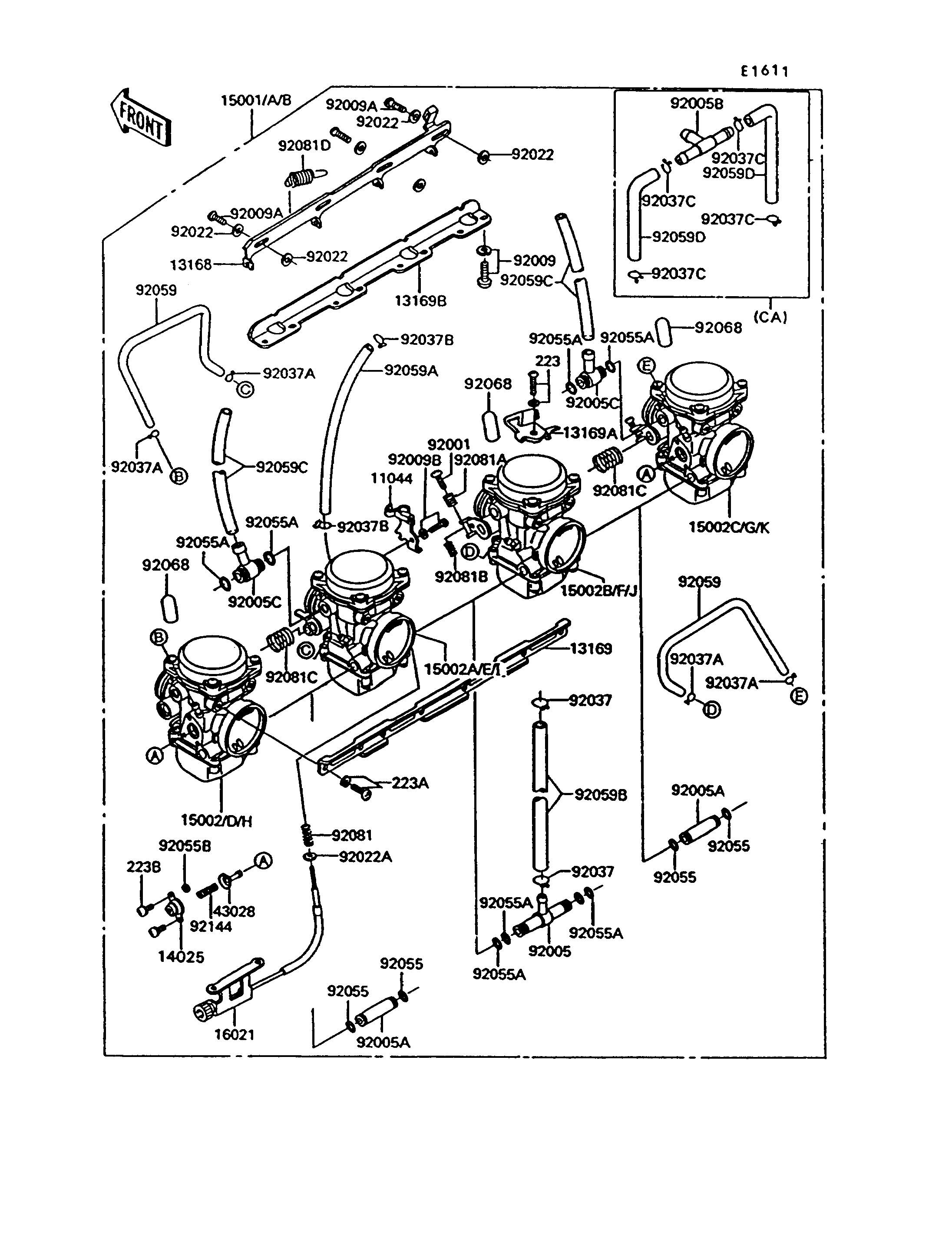

1994 Concours - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABLE 11044 11044-1546 1
LEVER,STARTER 13168 13168-1245 1
PLATE,CARBURETOR STAY,UPP 13169 13169-1869 1
PLATE,STARTER CABLE 13169A 13169-1871 1
PLATE,CARBURETOR STAY,LWR,6MM 13169B 13169-1873 1
COVER,AIR CUT VALVE 14025 14025-1903 2
CARBURETOR-ASSY 15001 15001-1247 1 CN
CARBURETOR-ASSY 15001A 15001-1251 1 US
CARBURETOR-ASSY 15001B 15001-1252 1 CA
CARBURETOR,LH,OUTSIDE 15002 15002-1346 1 CN
CARBURETOR,LH,INSIDE 15002A 15002-1347 1 CN
CARBURETOR,RH,INSIDE 15002B 15002-1348 1 CN
CARBURETOR,RH,OUTSIDE 15002C 15002-1349 1 CN
CARBURETOR,LH,OUTSIDE 15002D 15002-1362 1 US
CARBURETOR,LH,INSIDE 15002E 15002-1363 1 US
CARBURETOR,RH,INSIDE 15002F 15002-1364 1 US
CARBURETOR,RH,OUTSIDE 15002G 15002-1365 1 US
CARBURETOR,LH,OUTSIDE 15002H 15002-1366 1 CA
CARBURETOR,LH,INSIDE 15002I 15002-1367 1 CA
CARBURETOR,RH,INSIDE 15002J 15002-1368 1 CA
CARBURETOR,RH,OUTSIDE 15002K 15002-1369 1 CA
SCREW-THROTTLE STOP 16021 16021-1101 1
DIAPHRAGM,AIR CUT VALVE 43028 43028-1053 2
BOLT,THROTTLE ADJUST 92001 92001-1998 3
FITTING,FUEL,T-TYPE 92005 92005-1108 1
FITTING,FUEL,I-TYPE 92005A 92005-1109 2
FITTING,T-TYPE 92005B 92005-1119 1 CA
FITTING,T-TYPE 92005C 92005-1125 2
SCREW,6X16 92009 92009-1129 8
SCREW 92009A 92009-1262 3
SCREW,5X10 92009B 92009-1365 1
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 6
WASHER,PLAIN,STOP SPRING 92022A 92022-1480 1
CLAMP,FUEL TUBE 92037 92037-1075 2
CLAMP,TUBE 92037A 92037-1142 4
CLAMP,TUBE 92037B 92037-1477 2
CLAMP,TUBE 92037C 92037-1606 4 CA
RING-O 92055 92055-1004 4
RING-O,FUEL FITTING 92055A 92055-1223 8
RING-O 92055B 92055-1245 2
TUBE,3.5X6.5X180 92059 92059-1140 2
TUBE,5X9X200 92059A 92059-1173 1
TUBE,7.3X12.5X260 92059B 92059-1492 1
TUBE,6.5X9.5X260 92059C 92059-1598 2 CNUS
TUBE,7X11X140 92059D 92059-1688 2 CA
PLUG,12X25 92068 92068-006 3 CN
PLUG,12X25 92068 92068-006 1 US
SPRING,THROTTLE STOP SCREW 92081 92081-1617 1
SPRING,THROTTLE ADJUST UPP 92081A 92081-1620 3
SPRING,THROTTLE ADJUST LWR 92081B 92081-1621 3
SPRING,THROTTLE ADJUST CNT 92081C 92081-1622 2
SPRING,STARTER LEVER 92081D 92081-1762 1
SPRING,AIR CUT VALVE 92144 92144-1072 2
SCREW-PAN-WS-CROS 223 223C0420 1
SCREW-PAN-WS-CROS 223A 223C0510 8
SCREW-PAN-WS-CROS 223B 223D0408 4
