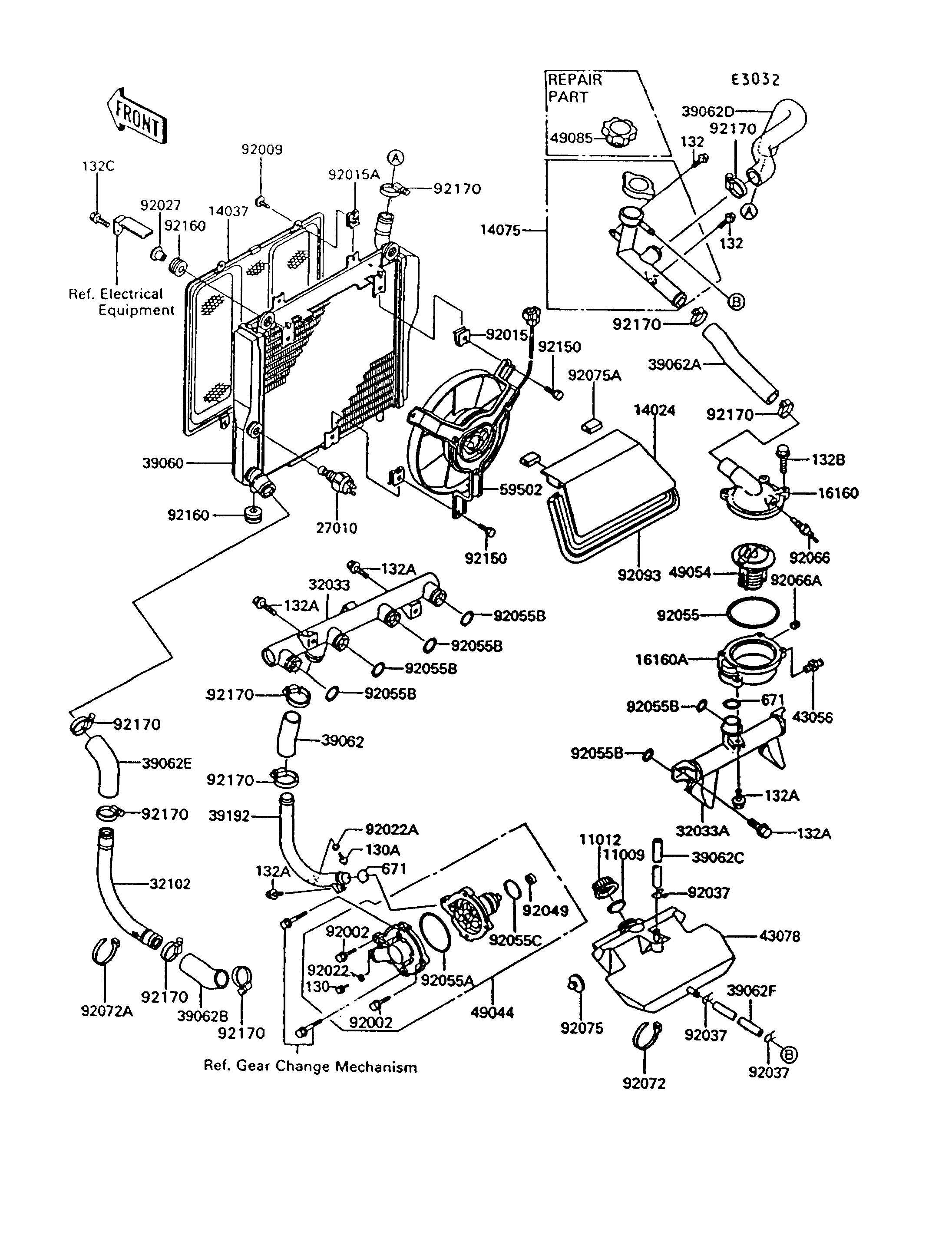

1992 Concours - Radiator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
COVER 14024 14024-1267 1
SCREEN,RADIATOR 14037 14037-1070 1
CAP-ASSY,RADIATOR 14075 14075-1055 1
BODY,THERMOSTAT,UPP 16160 16160-1067 1
BODY,THERMOSTAT,LWR 16160A 16160-1068 1
SWITCH,FAN 27010 27010-1202 1
PIPE 32033 32033-1262 1
PIPE 32033A 32033-1719 1
PIPE 32102 32102-1023 1
RADIATOR 39060 39060-1076 1
HOSE-COOLING 39062 39062-1072 1
HOSE-COOLING 39062A 39062-1091 1
HOSE-COOLING 39062B 39062-1092 1
HOSE-COOLING,5.5X10.5X1500 39062C 39062-1144 1
HOSE-COOLING 39062D 39062-1164 1
HOSE-COOLING 39062E 39062-1165 1
HOSE-COOLING 39062F 39062-1226 1
PIPE-WATER 39192 39192-1028 1
BREATHER 43056 43056-003 1
RESERVOIR 43078 43078-1074 1
PUMP-WATER 49044 49044-1058 1
THERMOSTAT 49054 49054-1051 1
CAP-ASSY-PRESSURE 49085 49085-1067 1
FAN-ASSY 59502 59502-1067 1
BOLT,6X22 92002 92002-1392 2
SCREW,TAPPING,6MM 92009 92009-1261 4
NUT 92015 92015-1487 3
NUT,6MM 92015A 92015-1758 4
WASHER,6MM 92022 92022-1976 1
WASHER,6.2X11X1 92022A 92022-304 1
COLLAR,L=14 92027 92027-1134 2
CLAMP,TUBE 92037 92037-147 3
SEAL-OIL,WATER PUMP 92049 92049-1416 1
RING-O,53.5X2.6 92055 92055-112 1
RING-O,WATER PUMP 92055A 92055-1271 1
RING-O 92055B 92055-1282 6
RING-O,33.2X2.4 92055C 92055-1424 1
PLUG,SENSOR WATER 92066 92066-1183 1
PLUG 92066A 92066-1201 1
BAND,L=185 92072 92072-1195 1
BAND,L=365 92072A 92072-1197 1
DAMPER,RUBBER 92075 92075-078 8
DAMPER 92075A 92075-1446 2
SEAL 92093 92093-1214 1
BOLT,6X16 92150 92150-1187 3
DAMPER 92160 92160-1007 4
CLAMP,COOLING HOSE 92170 92170-1284 10
BOLT-FLANGED,6X10,BLACK 130 130C0610 1
BOLT-FLANGED 130A 130J0610 1
BOLT-FLANGED-SMALL 132 132J0608 2
BOLT-FLANGED-SMALL 132A 132J0612 6
BOLT-FLANGED-SMALL 132B 132J0620 3
BOLT-FLANGED-SMALL 132C 132J0825 2
O RING,25MM 671 671B2525 2
