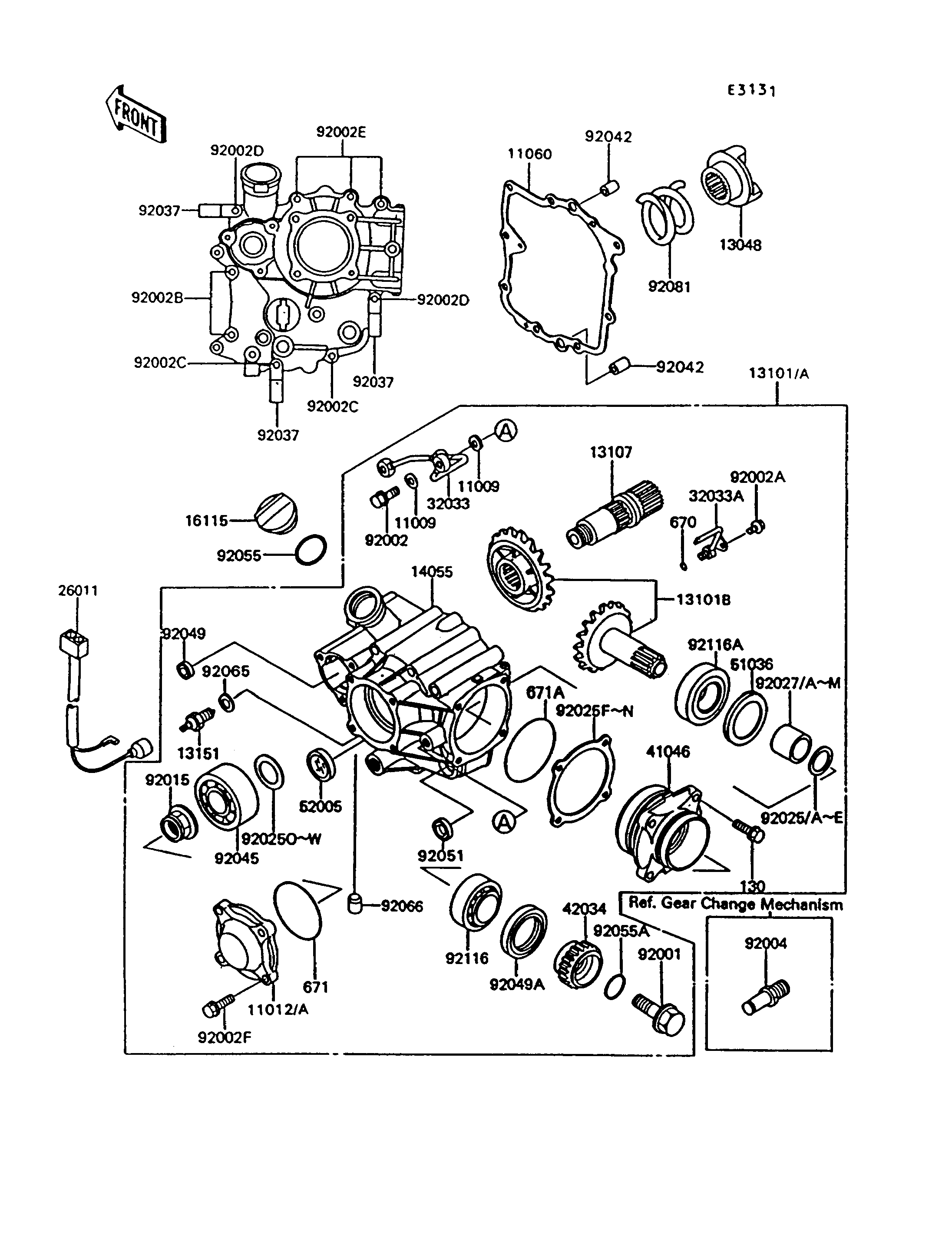

1994 Concours - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PIPE,8.2X14X1.0 11009 11009-1344 6
CAP,BEARING 11012A 11012-1884 1
GASKET,BEVEL GEAR CASE,FR 11060 11060-1404 1
CAM-DAMPER 13048 13048-1069 1
GEAR-ASSY,FRONT BEVEL 13101A 13101-1218 1
GEAR-ASSY,FRONT BEVEL 13101B 13101-5062 1
SHAFT,BEVEL GEAR,FR 13107 13107-1190 1
SWITCH-COMP,NEUTRAL 13151 13151-1007 1
CASE-GEAR,BEVEL,FR 14055 14055-1065 1
CAP-OIL FILLER 16115 16115-1009 1
WIRE-LEAD 26011 26011-1351 1
PIPE,OIL 32033 32033-1706 1
PIPE,OIL 32033A 32033-1707 1
HOUSING-BEARING 41046 41046-1067 1
COUPLING,FR DRIVEN 42034 42034-1091 1
CUP 51036 51036-1002 1
GAUGE,OIL LEVEL 52005 52005-1057 1
BOLT,FLANGED,12X42 92001 92001-1169 1
BOLT,BANJO,8X20 92002 92002-1429 3
BOLT,6X10 92002A 92002-1449 1
BOLT,6X25 92002B 92002-1582 2
BOLT,6X50 92002C 92002-1583 2
BOLT,6X60 92002D 92002-1584 2
BOLT,6X105 92002E 92002-1585 3
BOLT,6X25 92002F 92002-1612 4
STUD 92004 92004-1109 1
NUT 92015 92015-1543 1
SHIM,25.2X29.8X1.70 92025 92025-1072 AR
SHIM,25.2X29.8X1.72 92025A 92025-1073 AR
SHIM,25.2X29.8X1.74 92025B 92025-1074 AR
SHIM,25.2X29.8X1.76 92025C 92025-1075 AR
SHIM,25.2X29.8X1.78 92025D 92025-1076 AR
SHIM,25.2X29.8X1.80 92025E 92025-1077 AR
SHIM,T=0.10 92025F 92025-1606 AR
SHIM,T=0.15 92025G 92025-1607 AR
SHIM,T=0.50 92025H 92025-1608 AR
SHIM,T=0.60 92025I 92025-1609 AR
SHIM,T=0.70 92025J 92025-1610 AR
SHIM,T=0.80 92025K 92025-1611 AR
SHIM,T=0.90 92025L 92025-1612 AR
SHIM,T=1.00 92025M 92025-1613 AR
SHIM,T=1.20 92025N 92025-1614 AR
SHIM,25.3X36X0.15 92025O 92025-1688 AR
SHIM,25.3X36X0.50 92025P 92025-1689 AR
SHIM,25.3X36X0.60 92025Q 92025-1690 AR
SHIM,25.3X36X0.70 92025R 92025-1691 AR
SHIM,25.3X36X0.80 92025S 92025-1692 AR
SHIM,25.3X36X0.90 92025T 92025-1693 AR
SHIM,25.3X36X1.00 92025U 92025-1694 AR
SHIM,25.3X36X1.10 92025V 92025-1695 AR
SHIM,25.3X36X1.20 92025W 92025-1696 AR
COLLAR,25.2X29.8X22.8 92027 92027-1152 AR
COLLAR,25.2X29.8X22.9 92027A 92027-1153 AR
COLLAR,25.2X29.8X23 92027B 92027-1154 AR
COLLAR,25.2X29.8X23.1 92027C 92027-1155 AR
COLLAR,25.2X29.8X23.2 92027D 92027-1156 AR
COLLAR,25.2X29.8X23.3 92027E 92027-1157 AR
COLLAR,25.2X29.8X23.4 92027F 92027-1158 AR
COLLAR,25.2X29.8X23.5 92027G 92027-1159 AR
COLLAR,25.2X29.8X23.6 92027H 92027-1160 AR
COLLAR,25.2X29.8X23.7 92027I 92027-1161 AR
COLLAR,25.2X29.8X23.8 92027J 92027-1162 AR
COLLAR,25.2X29.8X23.9 92027K 92027-1163 AR
COLLAR,25.2X29.8X24 92027L 92027-1164 AR
COLLAR,25.2X29.8X24.1 92027M 92027-1165 AR
CLAMP,WIRING HARNESS 92037 92037-1539 3
PIN,DOWEL,6.3X8X14 92042 92042-007 2
BEARING-BALL 92045 92045-1160 1
SEAL-OIL,SD-8187 92049 92049-1017 1
SEAL-OIL,TC35527 92049A 92049-1038 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,31.5X2.6 92055 92055-049 1
RING-O,ID=18.64 92055A 92055-1044 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG,OIL LINE,7.2X8 92066 92066-1012 1
SPRING,CAM DAMPER 92081 92081-1859 1
BEARING-ROLLER,4T30205 92116 92116-1003 1
BEARING-ROLLER,4T30305 92116A 92116-1006 1
BOLT-FLANGED,6X25,BLACK 130 130S0625 4
O RING,6MM 670 670B1506 1
O RING,65MM 671 671B2565 1
O RING,70MM 671A 671B2570 1
