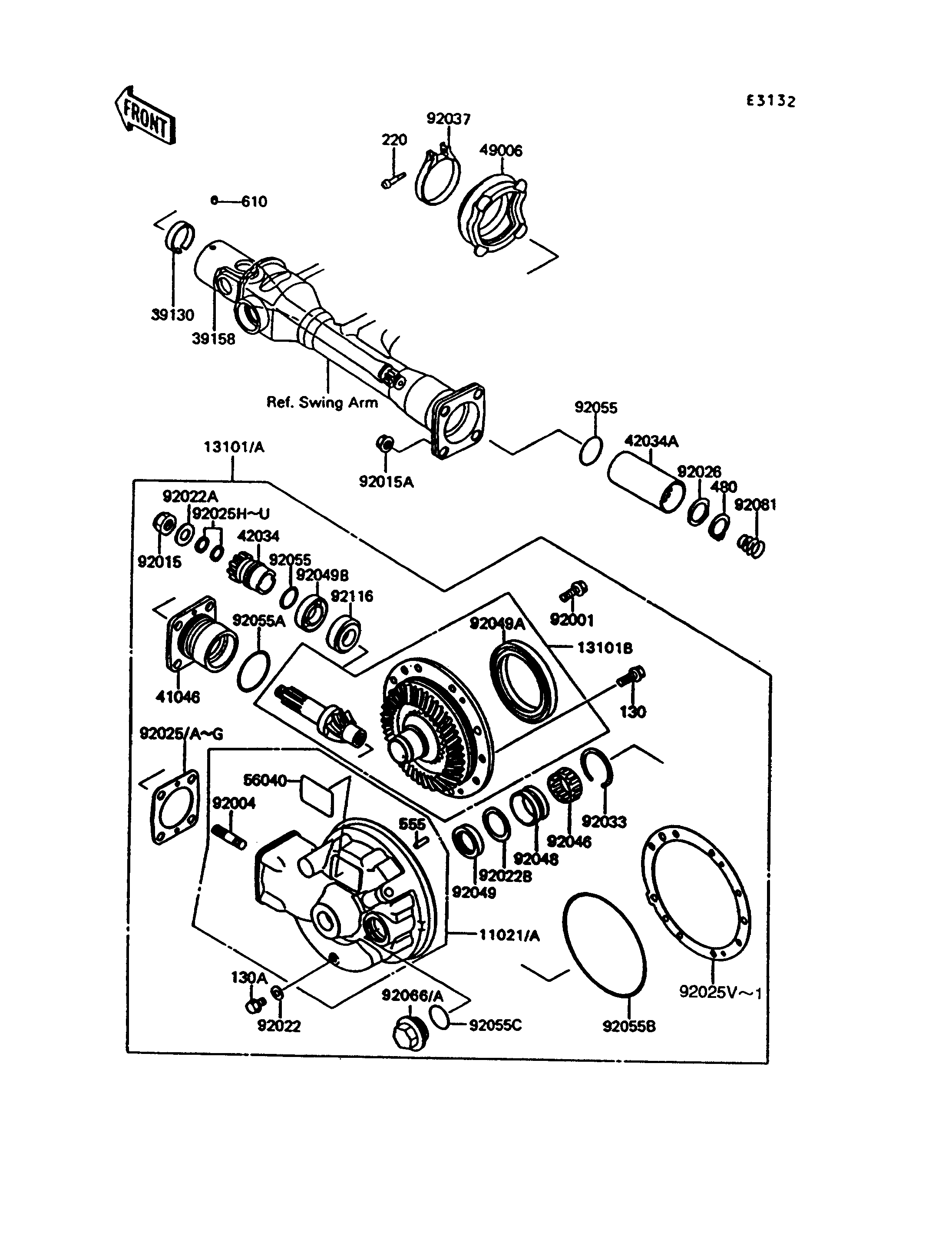

1994 Concours - Drive Shaft/Final Gear

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,FINAL BEVEL,G.GRAY 11021 11021-1063-GD 1
GEAR-ASSY,FINAL BEVEL,G.GRAY 13101 13101-1099-GD 1
GEAR-ASSY,FINAL BEVEL 13101B 13101-5063 1
SPRING-LEAF 39130 39130-1002 1
SHAFT-ASSY-DRIVE 39158 39158-1059 1
HOUSING-BEARING,BLACK 41046 41046-1069 1
COUPLING 42034 42034-1079 1
COUPLING,PROPELLER SHAFT,OUTER 42034A 42034-1092 1
BOOT 49006 49006-1188 1
LABEL-WARNING,OIL 56040 56040-1047 1
BOLT,FLANGED,10X23 92001 92001-1778 1
STUD,10X30,BLACK 92004 92004-1045 4
NUT,16MM 92015 92015-1059 1
NUT,FLANGED,10MM 92015A 92015-1180 4
WASHER,8.2X16X1 92022 92022-1086 1
WASHER,16X32X3.2 92022A 92022-1105 1
WASHER,39X49.5X1 92022B 92022-1294 1
SHIM,T=0.15 92025 92025-1052 AR
SHIM,T=0.50 92025A 92025-1053 AR
SHIM,T=0.60 92025B 92025-1054 AR
SHIM,T=0.70 92025C 92025-1055 AR
SHIM,T=0.80 92025D 92025-1056 AR
SHIM,T=0.90 92025E 92025-1057 AR
SHIM,T=1.00 92025F 92025-1058 AR
SHIM,T=1.20 92025G 92025-1059 AR
SHIM,T=1.30 92025H 92025-1214 AR
SHIM,T=1.32 92025I 92025-1215 AR
SHIM,T=1.34 92025J 92025-1216 AR
SHIM,T=1.36 92025K 92025-1217 AR
SHIM,T=1.38 92025L 92025-1218 AR
SHIM,T=0.10 92025M 92025-1219 AR
SHIM,T=0.20 92025N 92025-1220 AR
SHIM,T=0.30 92025O 92025-1221 AR
SHIM,T=0.50 92025P 92025-1222 AR
SHIM,T=0.60 92025Q 92025-1223 AR
SHIM,T=0.70 92025R 92025-1224 AR
SHIM,T=0.80 92025S 92025-1225 AR
SHIM,T=0.90 92025T 92025-1226 AR
SHIM,T=1.00 92025U 92025-1227 AR
SHIM,T=0.10 92025V 92025-1625 AR
SHIM,T=0.15 92025W 92025-1626 AR
SHIM,T=0.20 92025X 92025-1627 AR
SHIM,T=0.30 92025Y 92025-1628 AR
SHIM,T=0.60 92025Z 92025-1629 AR
SHIM,T=0.90 920250 92025-1630 AR
SHIM,T=1.20 920251 92025-1631 AR
SPACER,PROPELLER SHAFT 92026 92026-1085 1
RING-SNAP,52MM 92033 92033-1074 1
CLAMP,BOOT FITTING 92037 92037-1112 1
BEARING-NEEDLE,KTV384620E01 C3 92046 92046-1057 1
RACE,ORT465021E01 92048 92048-1019 1
SEAL-OIL,S-35477HS 92049 92049-1025 1
SEAL-OIL,S-901159HS 92049A 92049-1026 1
SEAL-OIL,SC32487 92049B 92049-1033 1
RING-O,ID=32.7 92055 92055-1037 2
RING-O,ID=57.6 92055A 92055-1038 1
RING-O,154MM 92055B 92055-1165 1
RING-O,35.8MM 92055C 92055-1281 1
PLUG,36X7.5,G.GRAY 92066 92066-1006-GD 1
SPRING,PROPELLER SHAFT 92081 92081-1183 1
BEARING-ROLLER,4T32005X 92116 92116-1004 1
BOLT-FLANGED,8X25 130 130G0825 7
BOLT-FLANGED 130A 130X0812 1
SCREW-PAN-CROS 220 220B0430 1
CIRCLIP-TYPE-C,26MM 480 480J2600 1
PIN-SPRING 555 555A0428 1
ROLLER,4X6 610 610A0406 1
