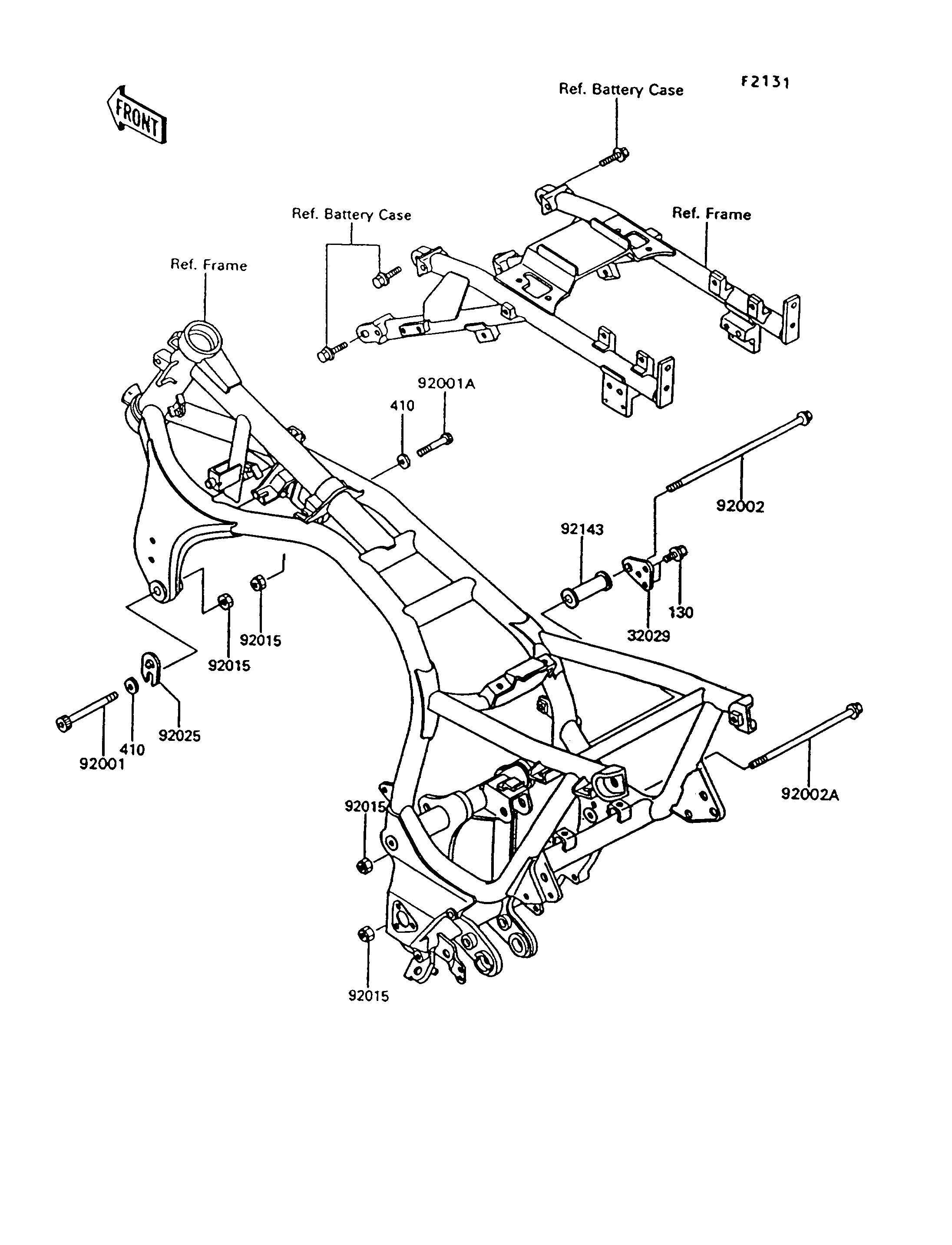

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,RR,UPP,RH 32029 32029-1473 1
BOLT,SOCKET,10X100 92001 92001-1888 1
BOLT,SOCKET,10X72 92001A 92001-1889 1
BOLT,FLANGED,10X265 92002 92002-1722 1
BOLT,FLANGED,10X215 92002A 92002-1822 1
NUT,FLANGED,10MM 92015 92015-1502 4
SHIM,ENGINE MOUNT,T=1.2 92025 92025-1616 AR
COLLAR,L=57.5 92143 92143-1027 1
BOLT-FLANGED 130 130J0812 2
WASHER-PLAIN-SMALL,10MM 410 410B1000 2
