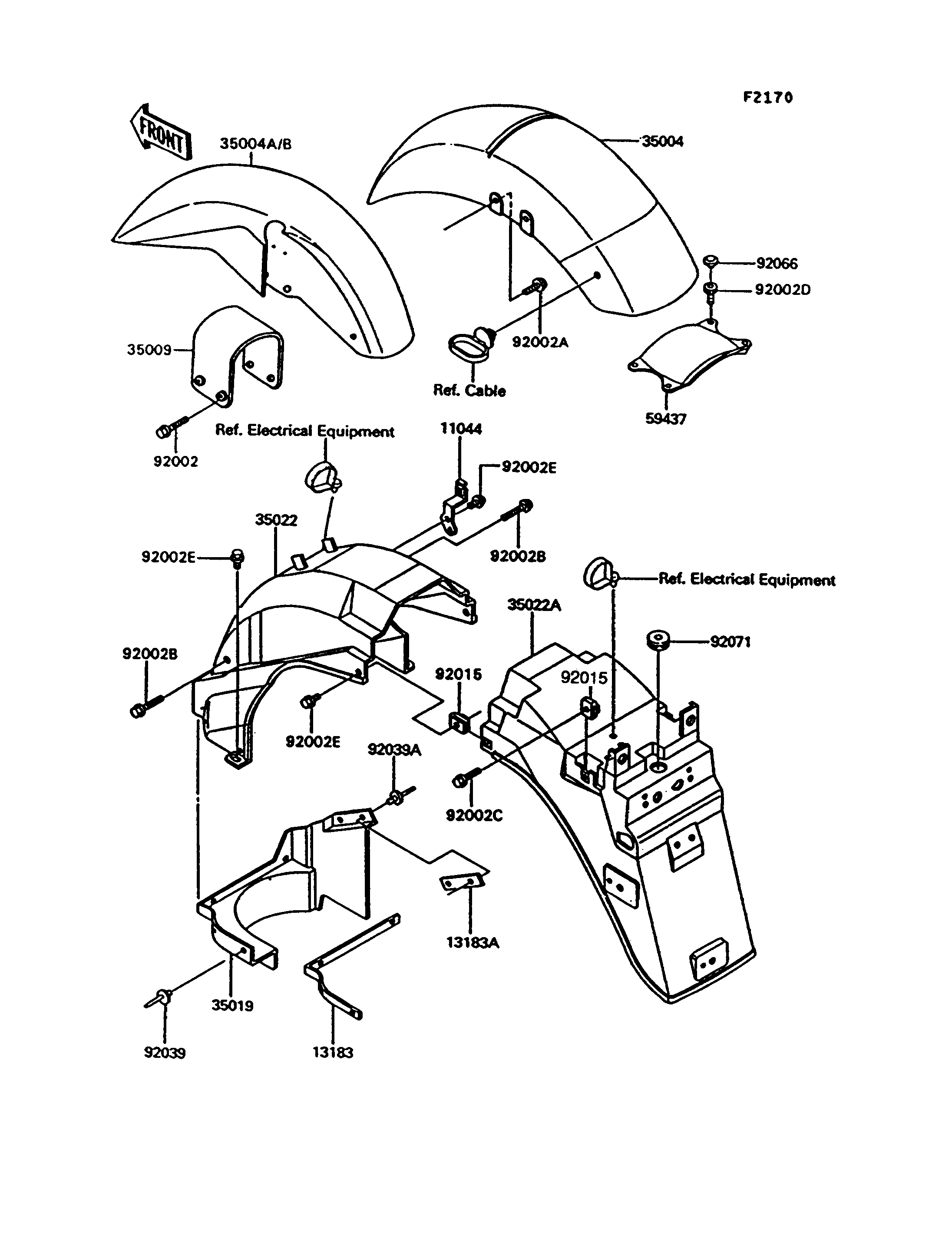

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR BRAKE RESERVOIR 11044 11044-1782 1
PLATE,REAR FENDER FLAP,LH 13183 13183-1021 1
PLATE,REAR FENDER FLAP,RH 13183A 13183-1022 1
FENDER-FRONT,L.V.RED 35004A 35004-1324-P5 1 CN
FENDER-FRONT,L.V.RED 35004B 35004-1324-2T 1 CAUS
BRACE,FRONT FENDER 35009 35009-1101 1
FLAP,REAR FENDER,FR 35019 35019-1183 1
FENDER-COMP-REAR,FR 35022 35022-1223 1
FENDER-COMP-REAR,RR,BLACK 35022A 35022-1224-6Z 1
BOLT,FLANGED,8X20 92002 92002-1134 4
BOLT,6X55 92002B 92002-1707 2
BOLT,6X40 92002C 92002-1711 2
BOLT,6X16 92002E 92002-1852 5
NUT,6MM 92015 92015-1602 4
RIVET 92039 92039-1106 1
RIVET 92039A 92039-1147 5
GROMMET,SENSOR LEAD 92071 92071-1058 1
