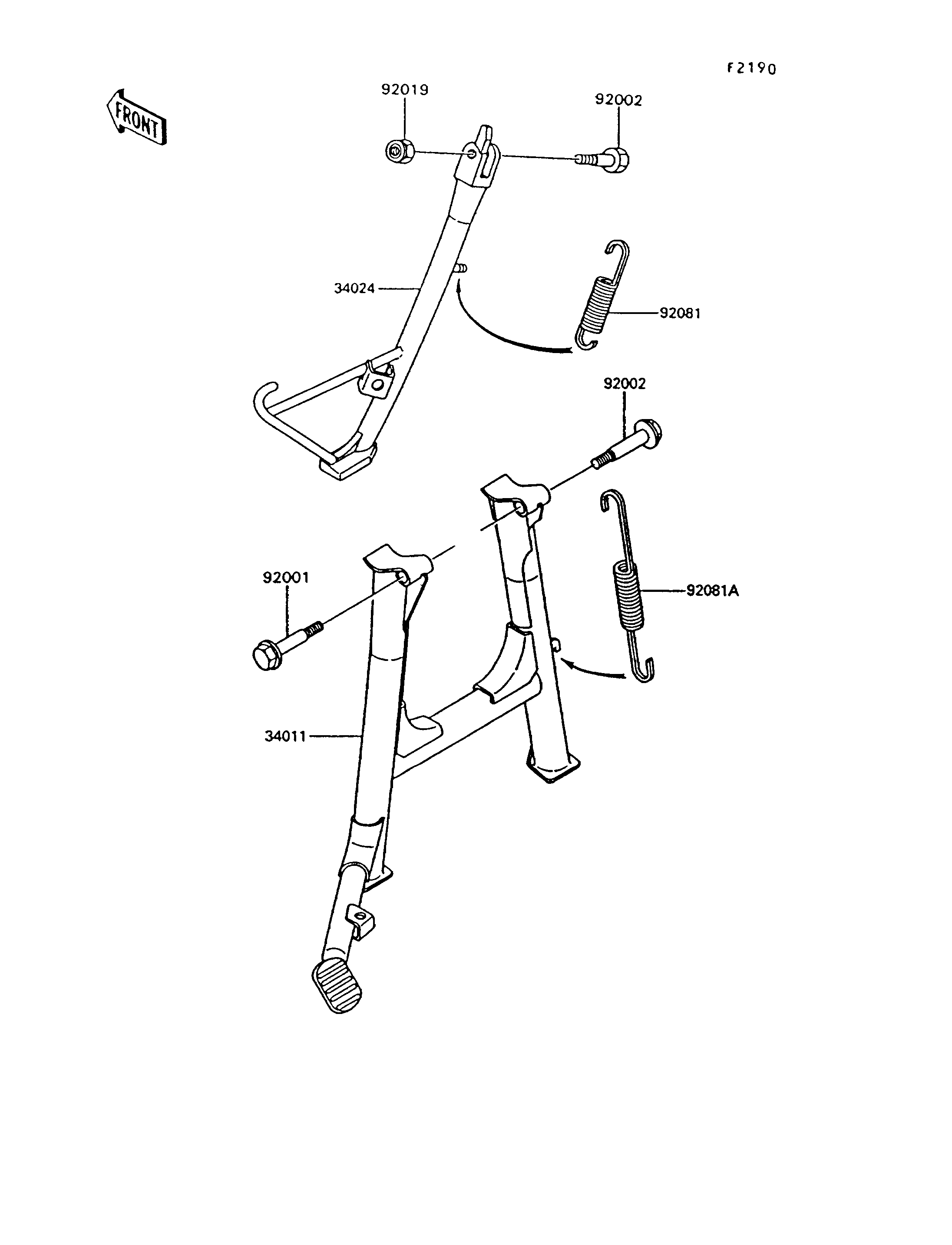

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-CENTER 34011 34011-1134 1
STAND-SIDE 34024 34024-1208 1
BOLT,CENTER STAND 92001 92001-1880 2
BOLT,SIDE STAND 92002 92002-1813 1
NUT,LOCK,10MM 92019 92019-021 1
SPRING,SIDE STAND 92081 92081-1676 1
SPRING,CENTER STAND 92081A 92081-1828 1
