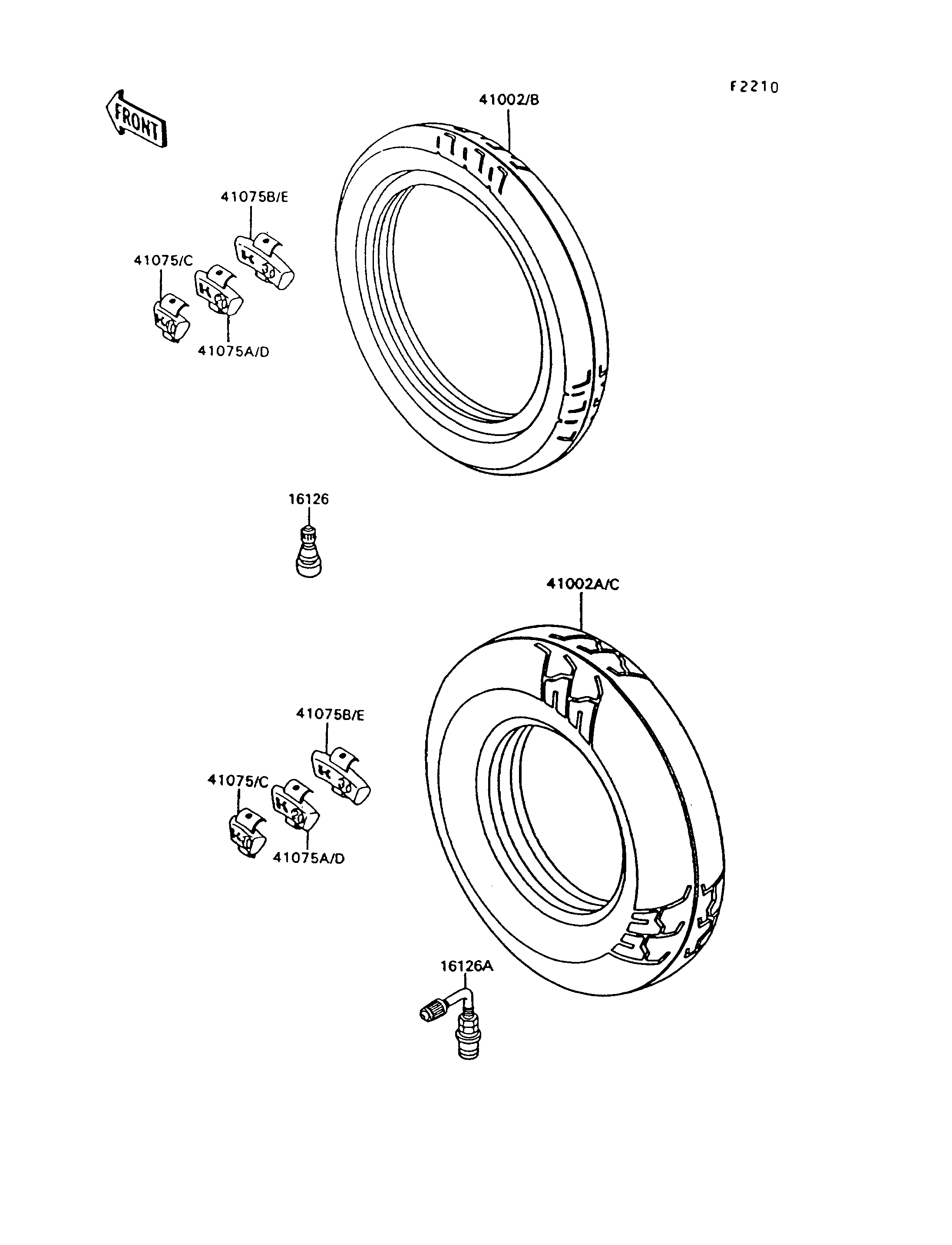

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,TIRE 16126 16126-1140 2
TIRE,FR,120/70R18 59V,K701F(D) 41002B 41002-1966 1
TIRE,RR,150/80R16 71V,K700J(D) 41002C 41002-1977 1
BALANCER-WHEEL,10G,SILVER 41075C 41075-1056 AR
BALANCER-WHEEL,20G,SILVER 41075D 41075-1057 AR
BALANCER-WHEEL,30G,SILVER 41075E 41075-1058 AR
