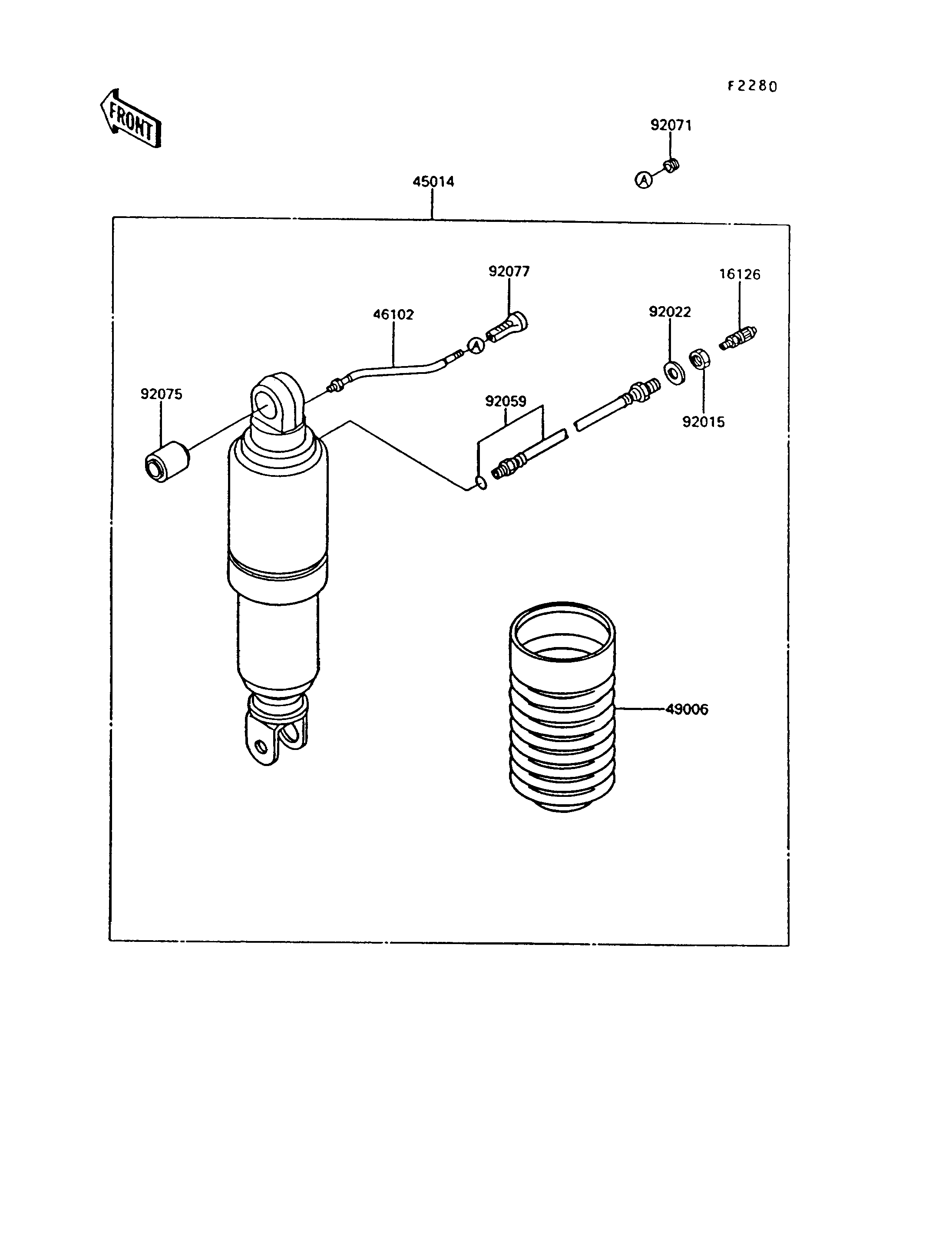

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,AIR 16126 16126-1143 1
SHOCKABSORBER 45014 45014-1340 1
ROD,SHOCKABSORBER,ADJUST 46102 46102-1192 1
BOOT,SHOCKABSORBER 49006 49006-1201 1
NUT,14MM 92015 92015-1305 1
WASHER 92022 92022-1494 1
TUBE,SHOCKABSORBER 92059 92059-1744 1
GROMMET 92071 92071-056 1
DAMPER,SHOCKABSORBER 92075 92075-1654 1
KNOB,SHOCKABSORBER,ADJUST 92077 92077-1051 1
