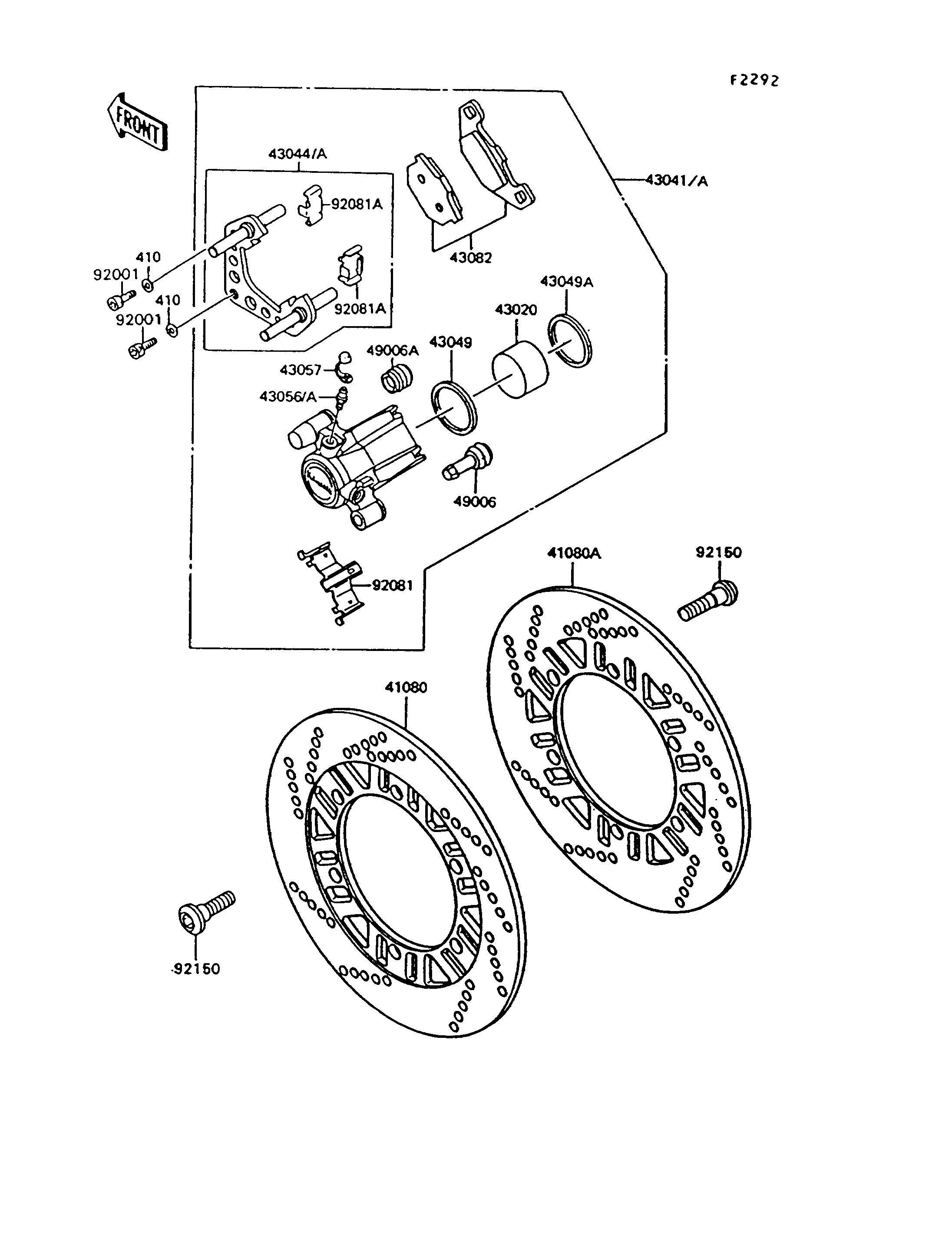

1992 Concours - Front Brake(ZG1000-A7/A8)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DISC,FR,LH | 41080 | 41080-1205 | 1 | ||
DISC,FR,RH | 41080A | 41080-1206 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1066 | 2 | ||
CALIPER-ASSY,FR,RH | 43041 | 43041-1471 | 1 | ||
CALIPER-ASSY,FR,LH | 43041A | 43041-1484 | 1 | ||
HOLDER-COMP-CALIPER,FR,LH | 43044 | 43044-1035 | 1 | ||
HOLDER-COMP-CALIPER,FR,RH | 43044A | 43044-1036 | 1 | ||
RING,PISTON SEAL | 43049 | 43049-002 | 2 | ||
PACKING,PISTON | 43049A | 43049-1028 | 2 | ||
BREATHER | 43056 | 43056-003 | 1 | ||
BREATHER-BRAKE | 43056A | 43056-1054 | 1 | ||
CAP-BREATHER | 43057 | 43057-003 | 2 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1061 | 2 | ||
BOOT,CALIPER | 49006 | 49006-1094 | 2 | ||
BOOT,CALIPER | 49006A | 49006-1095 | 2 | ||
BOLT,SOCKET,10X33 | 92001 | 92001-1901 | 4 | ||
SPRING,PAD | 92081 | 92081-1525 | 2 | ||
SPRING,PAD STOPPER | 92081A | 92081-1661 | 4 | ||
BOLT,DISC PLATE,8X30 | 92150 | 92150-1728 | 12 | ||
WASHER-PLAIN-SMALL,10MM | 410 | 410B1000 | 4 |
