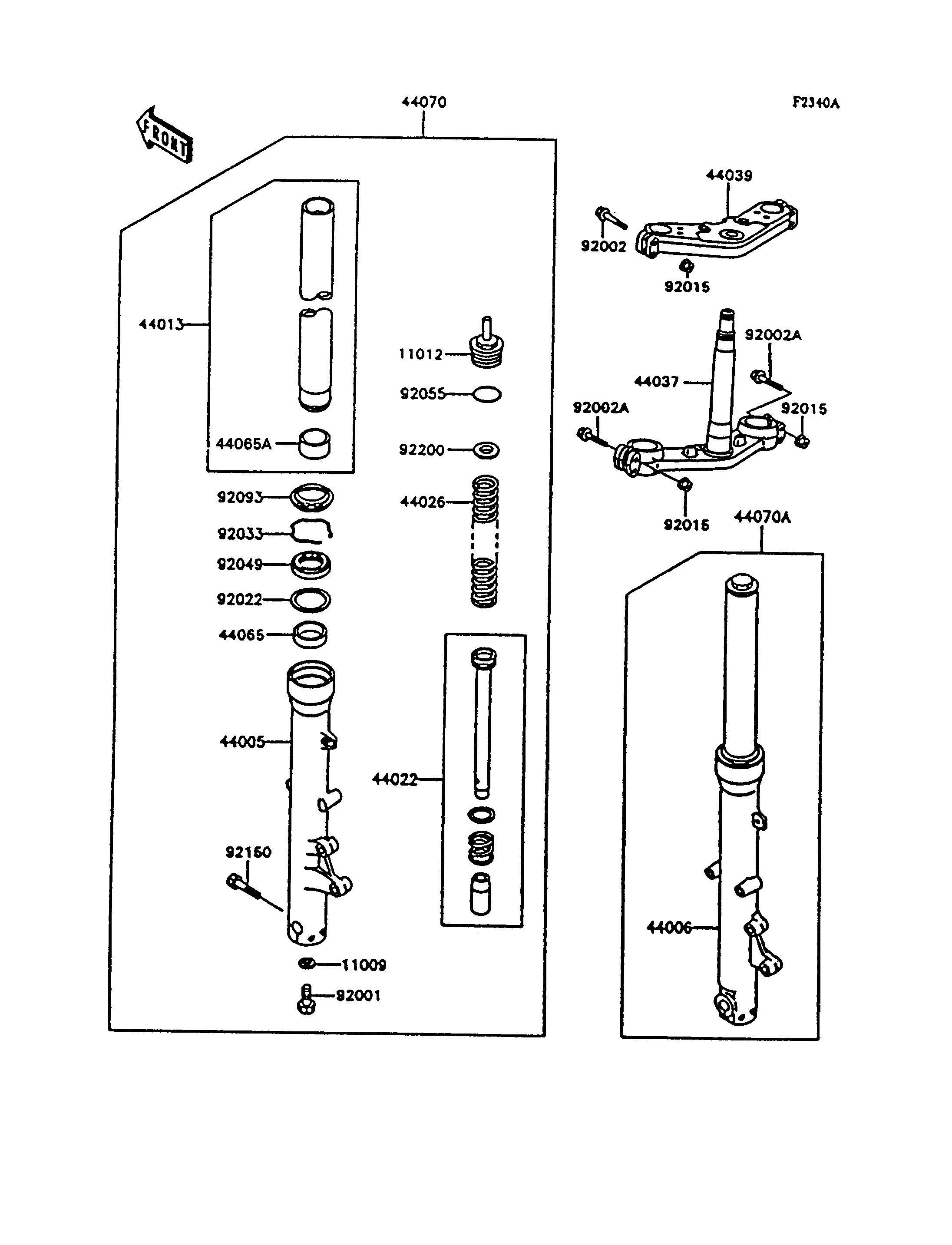

1994 Concours - Front Fork(ZG1000-A9)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
CAP 11012 11012-1885 2
PIPE-LEFT FORK OUTER,BLACK 44005 44005-1340-10 1
PIPE-RIGHT FORK OUTER,BLACK 44006 44006-1338-10 1
PIPE-FORK INNER 44013 44013-1400 2
CYLINDER-FORK 44022 44022-1297 2
SPRING-FRONT FORK 44026 44026-1560 2
HOLDER-FORK UNDER 44037 44037-1198 1
HOLDER-FORK UPPER 44039 44039-1248 1
BUSHING-FRONT FORK 44065 44065-1085 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1086 2
DAMPER-ASSY,FORK,LH,BLACK 44070 44070-1291-10 1
DAMPER-ASSY,FORK,RH,BLACK 44070A 44070-1292-10 1
BOLT,FORK CYLINDER 92001 92001-1309 2
BOLT,FLANGED,8X55 92002 92002-1158 4
BOLT,FLANGED,8X50 92002A 92002-1848 4
NUT,FLANGED,8MM 92015 92015-1408 8
WASHER,FORK OUTER TUBE 92022 92022-1298 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1356 2
RING-O,FORK TOP CAP 92055 92055-1050 2
SEAL,FORK OUTER TUBE 92093 92093-1359 2
BOLT,SOCKET,10X40 92150 92150-1468 2
WASHER,FORK 92200 92200-1210 2
