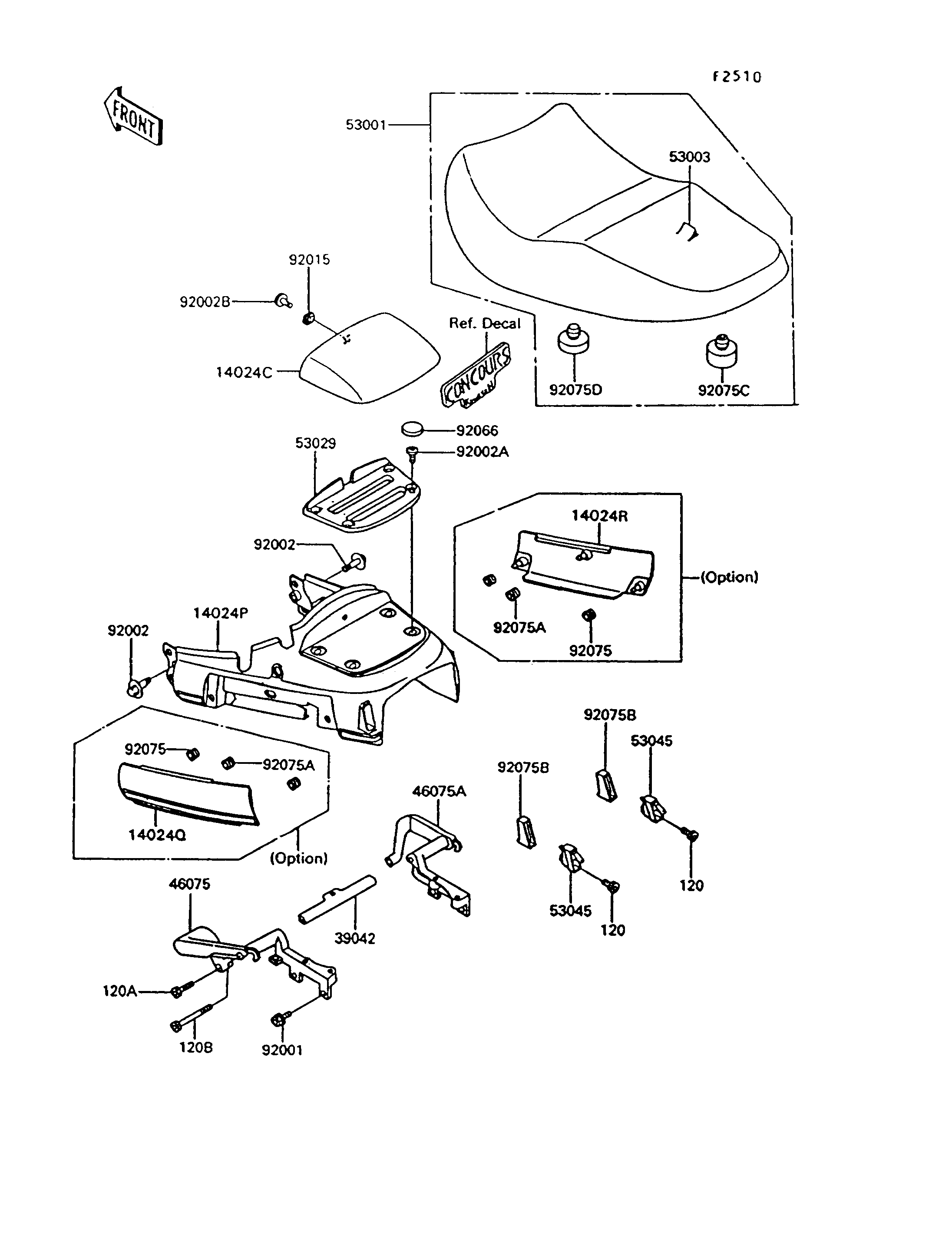

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,CARRIER,EBONY | 14024C | 14024-1227-H8 | 1 | ||
| COVER,SEAT,EBONY | 14024P | 14024-5208-H8 | 1 | ||
| COVER,SEAT COVER,LH,EBONY | 14024Q | 14024-5209-H8 | 1 | ||
| COVER,SEAT COVER,RH,EBONY | 14024R | 14024-5210-H8 | 1 | ||
| CROSSMEMBER,SEAT GRIP | 39042 | 39042-1052 | 1 | ||
| GRIP,SEAT,RR,LH | 46075 | 46075-1070 | 1 | ||
| GRIP,SEAT,RR,RH | 46075A | 46075-1071 | 1 | ||
| SEAT-ASSY,DUAL,BLACK | 53001 | 53001-1506-MA | 1 | ||
| LEATHER,SEAT,BLACK | 53003 | 53003-1162-MA | 1 | ||
| CARRIER,TAIL | 53029 | 53029-1069 | 1 | ||
| HOOK-ASSY,BUNGEE CORD | 53045 | 53045-1052 | 2 | ||
| BOLT,8X18 | 92001 | 92001-1359 | 4 | ||
| BOLT,6X25 | 92002 | 92002-1135 | 2 | ||
| BOLT,SOCKET,8X23.5 | 92002A | 92002-1598 | 4 | ||
| BOLT,5MM | 92002B | 92002-1724 | 1 | ||
| NUT,5MM | 92015 | 92015-1710 | 1 | ||
| PLUG,19X6 | 92066 | 92066-1251 | 4 | ||
| DAMPER | 92075 | 92075-051 | 4 | ||
| DAMPER | 92075A | 92075-1470 | 2 | ||
| DAMPER,BUNGEE CORD HOOK | 92075B | 92075-1823 | 2 | ||
| DAMPER | 92075C | 92075-1876 | 2 | ||
| DAMPER | 92075D | 92075-281 | 5 | ||
| BOLT-SOCKET,6X14 | 120 | 120P0614 | 2 | ||
| BOLT-SOCKET,8X25,BLACK | 120A | 120S0825 | 2 | ||
| BOLT-SOCKET | 120B | 120S0890 | 2 |
