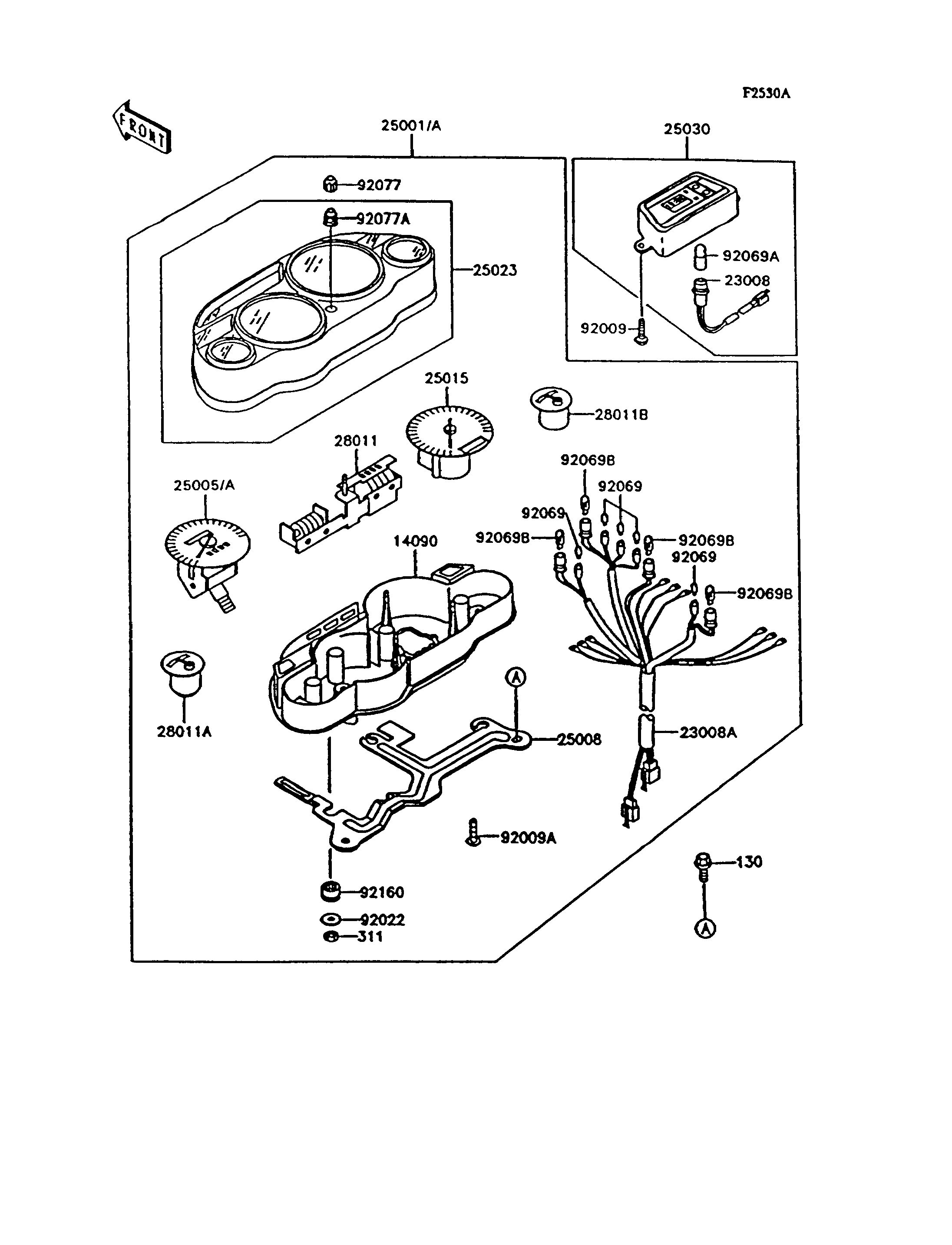

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER HOUSING | 14090 | 14090-1286 | 1 | ||
| SOCKET-ASSY,DEGITAL CLOCK | 23008 | 23008-1529 | 1 | ||
| SOCKET-ASSY,METER | 23008A | 23008-1534 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1961 | 1 | CAUS | |
| METER-ASSY,KPH | 25001A | 25001-1962 | 1 | CN | |
| SPEEDOMETER,MPH | 25005 | 25005-1557 | 1 | CAUS | |
| SPEEDOMETER,KPH | 25005A | 25005-1558 | 1 | CN | |
| BRACKET-METER | 25008 | 25008-1199 | 1 | ||
| TACHOMETER,X1000R/MIN | 25015 | 25015-1329 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-1201 | 1 | ||
| CLOCK,DEGITAL | 25030 | 25030-1002 | 1 | ||
| METER,TRIP | 28011 | 28011-1130 | 1 | ||
| METER,FUEL | 28011A | 28011-1145 | 1 | ||
| METER,TEMP | 28011B | 28011-1146 | 1 | ||
| SCREW,TAPPING,4X16 | 92009 | 92009-1163 | 2 | ||
| SCREW,TAPPING,4X14 | 92009A | 92009-1503 | 4 | ||
| WASHER,6.2X18X1.2 | 92022 | 92022-1369 | 3 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 5 | ||
| BULB,12V3W T-7 | 92069A | 92069-1020 | 1 | ||
| BULB,12V 1.7W | 92069B | 92069-1059 | 4 | ||
| KNOB,TRIP RESET | 92077 | 92077-1094 | 1 | ||
| KNOB,TRIP RESET | 92077A | 92077-1112 | 1 | ||
| DAMPER | 92160 | 92160-1461 | 3 | ||
| BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 2 | ||
| NUT-HEX,6MM | 311 | 311B0600 | 3 |
