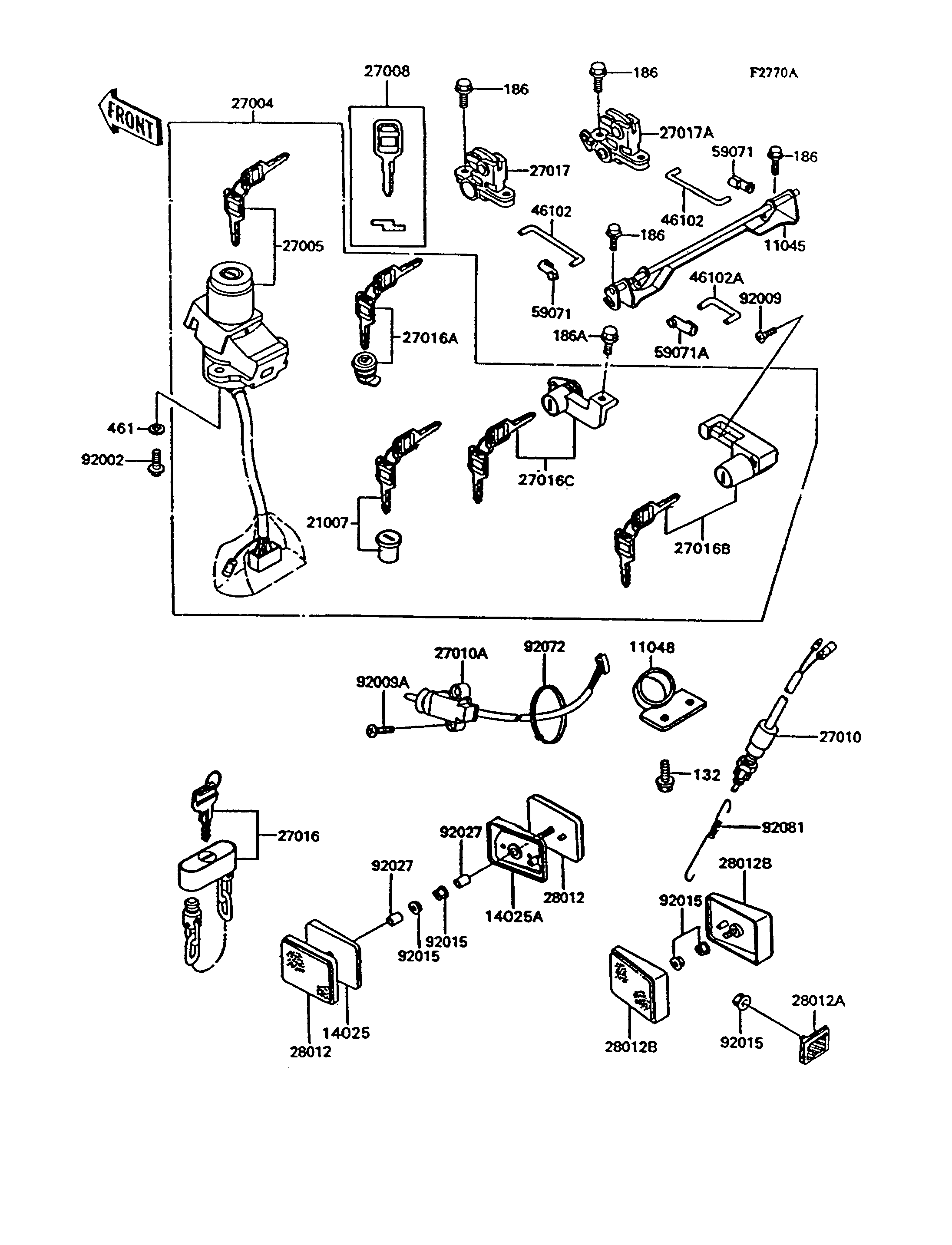

1994 Concours - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT LOCK 11045 11045-1544 1
BRACKET,IGNITION GUARD 11048 11048-1451 1
COVER,REFLECTOR,FR 14025 14025-1886 1
COVER,REFLECTOR,FR 14025A 14025-1887 1
ROTOR,LOCK,TANK CAP 21007 21007-5037 1
SWITCH-ASSY 27004 27004-5474 1
SWITCH-ASSY-IGNITION 27005 27005-5101 1
KEY-LOCK,BLANK 27008 27008-1173 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-1019 1
SWITCH,SIDE STAND 27010A 27010-1220 1
LOCK-ASSY,WHEEL 27016 27016-1051 1
LOCK-ASSY,TOOL BOX 27016A 27016-5204 2
LOCK-ASSY,HELMET 27016B 27016-5211 2
LOCK-ASSY,SEAT 27016C 27016-5221 1
LOCK,SEAT,LH 27017 27017-1112 1
LOCK,SEAT,RH 27017A 27017-1113 1
REFLECTOR-REFLEX,FR 28012 28012-1052 2
REFLECTOR-REFLEX,RR 28012A 28012-1054 1
REFLECTOR-REFLEX,RR 28012B 28012-1056 2
ROD,SEAT LOCK,FR 46102 46102-1187 2
ROD,SEAT LOCK,RR 46102A 46102-1188 1
JOINT 59071 59071-1103 4
JOINT 59071A 59071-1125 1
BOLT,TORX,6X16 92002 92002-1333 2
SCREW,5X12 92009 92009-1401 2
SCREW,5X20 92009A 92009-1459 2
NUT,FLANGED,5MM 92015 92015-1259 5
COLLAR,5X8X14.5 92027 92027-1789 2
BAND,L=185 92072 92072-1195 1
SPRING,BRAKE LAMP SWITCH 92081 92081-1990 1
BOLT-FLANGED-SMALL 132 132J0612 2
BOLT-UPSET-WP 186 186C0614 4
BOLT-UPSET-WP 186A 186C0616 1
WASHER-SPRING 461 461L0600 2
