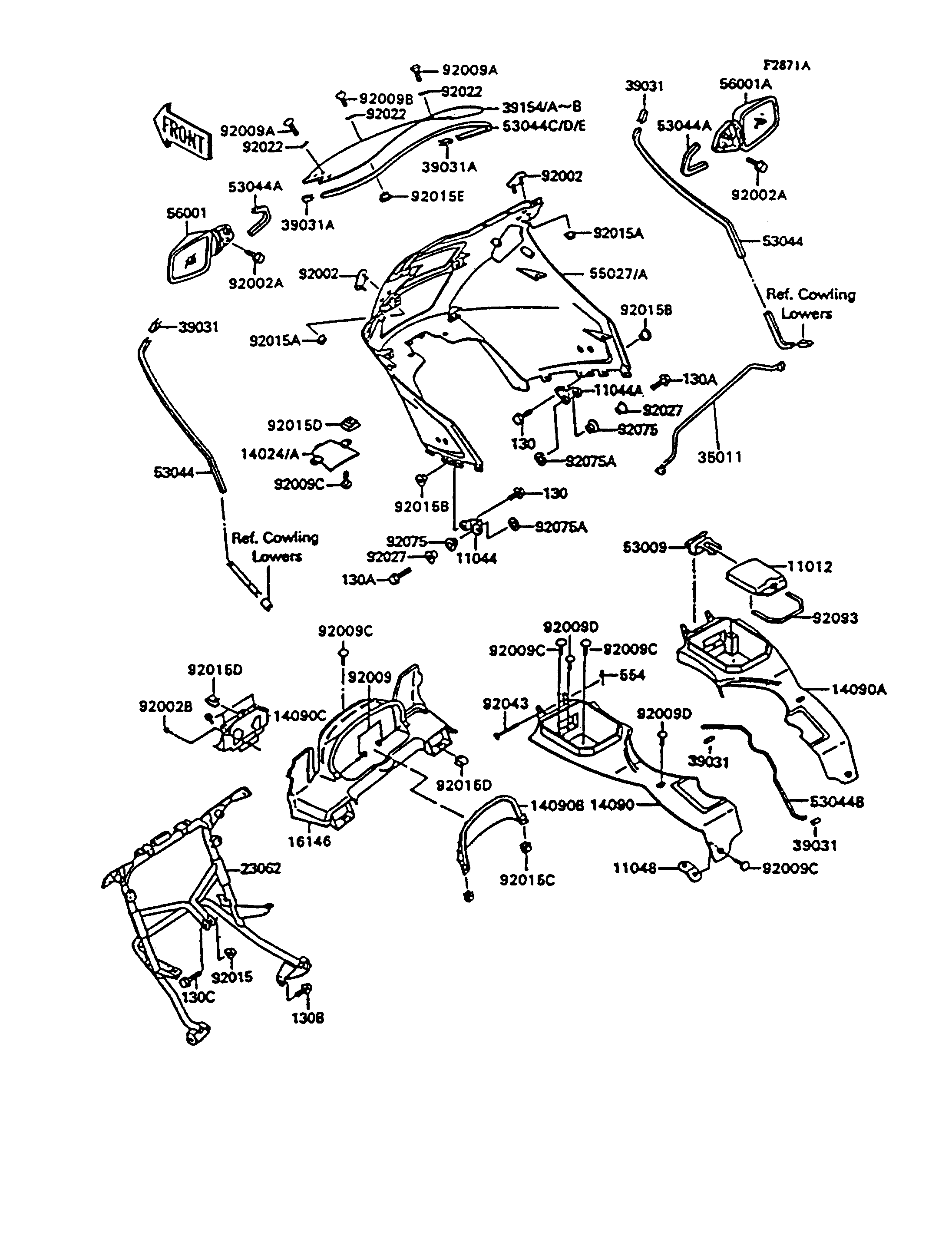

1994 Concours - Cowling(ZG1000-A9)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,INNER COWLING COVER 11012 11012-1878 2
BRACKET,UPPER COWLING,LWR,LH 11044 11044-1907 1
BRACKET,UPPER COWLING,LWR,RH 11044A 11044-1908 1
BRACKET,INNER COWLING,FR 11048 11048-1490 2
COVER,UPPER COWLING,LWR,RED 14024 14024-1252-P5 1 CN
COVER,UPPER COWLING,LWR,RED 14024A 14024-1252-2T 1 CAUS
COVER,INNER COWLING,LH 14090 14090-1424 1
COVER,INNER COWLING,RH 14090A 14090-1425 1
COVER,METER VISER 14090B 14090-1456 1
COVER,INNER COWLING,CNT 14090C 14090-1481 1
COVER-ASSY,INNER COWLING,FR 16146 16146-1158 1
BRACKET-COMP,UPP COWLING 23062 23062-1100 1
STAY,SIDE COWLING 35011 35011-1340 1
CAP-END,TRIM 39031 39031-1055 6
CAP-END,TRIM 39031A 39031-1063 2
WINDSHIELD,SHORT TYPE 39154 39154-1094 1 (OPTION)
WINDSHIELD,LONG TYPE 39154A 39154-1095 1
WINDSHIELD,SUPER LONG TYPE 39154B 39154-1096 1 (OPTION)
HINGE,INNER COVER 53009 53009-1086 2
TRIM,COWLING 53044 53044-1157 2
TRIM,MIRROR 53044A 53044-1173 2
TRIM,INNER COWLING 53044B 53044-1184 2
TRIM,WINDSHIELD,SHORT TYPE 53044C 53044-1272 1 (OPTION)
TRIM,WINDSHIELD,LONG TYPE 53044D 53044-1273 1
TRIM,WINDSHIELD,SUPER LONG TYP 53044E 53044-1274 1 (OPTION)
COWLING-ASSY,UPP,OUTER,L.V.RED 55027 55027-1083-P5 1 CN
COWLING-ASSY,UPP,OUTER,RED/BLK 55027A 55027-1083-3K 1 CAUS
MIRROR-ASSY,LH 56001 56001-1333 1
MIRROR-ASSY,RH 56001A 56001-1334 1
BOLT,"U" 92002 92002-1800 2
BOLT,6X16 92002A 92002-1852 4
BOLT,6X12 92002B 92002-1884 3
SCREW,4X16 92009 92009-1500 2
SCREW,5X16 92009A 92009-1654 4
SCREW,5X20 92009B 92009-1656 6
SCREW,6X14 92009C 92009-1662 9
SCREW,6X18 92009D 92009-1663 6
NUT,FLANGED,8MM,BLACK 92015 92015-1183 1
NUT,FLANGED,6MM 92015A 92015-1233 4
NUT,STAY,6MM 92015B 92015-1394 4
NUT,4MM 92015C 92015-1593 2
NUT,6MM 92015D 92015-1602 5
NUT,WELL,5MM 92015E 92015-1757 6
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 10
COLLAR,L=13.1,BLACK 92027 92027-1450 2
PIN,4X70 92043 92043-1501 2
DAMPER,MALE 92075 92075-174 2
DAMPER,FEMALE 92075A 92075-175 2
SEAL,INNER COWLING CAP 92093 92093-1368 2
BOLT-FLANGED,6X10,BLACK 130 130C0610 4
BOLT-FLANGED,6X25 130A 130J0625 2
BOLT-FLANGED 130B 130J0812 2
BOLT-FLANGED,8X30 130C 130J0830 1
PIN-SNAP 554 554A0400 2
