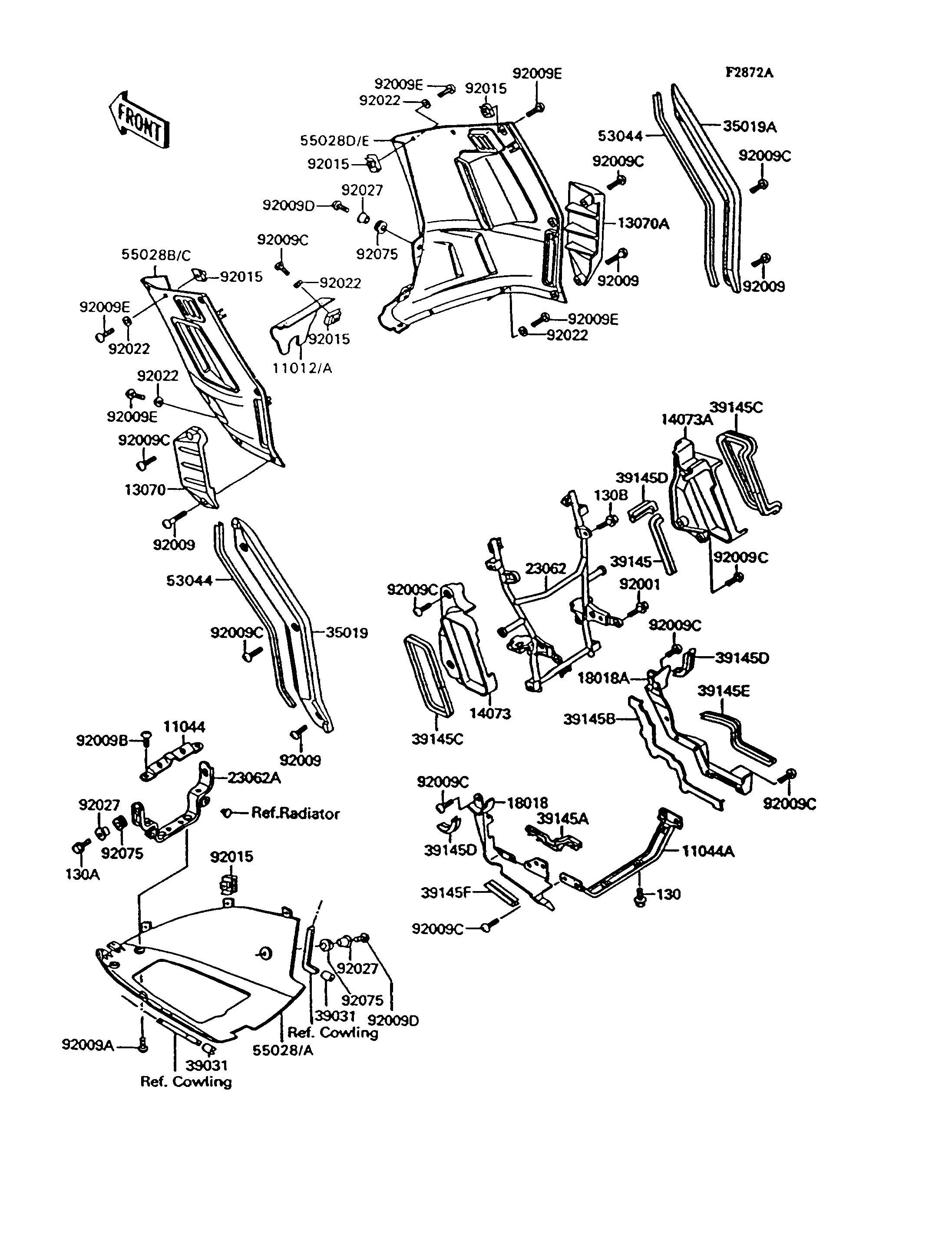

1994 Concours - Cowling Lowers(ZG1000-A9)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,RESERVOIR INSPECTION,GRAY | 11012 | 11012-1534-JR | 1 | CAUS | |
| CAP,RESERVOIR INSPECTION,GRAY | 11012A | 11012-1534-T2 | 1 | CN | |
| BRACKET,RESERVOIR TANK,UPP | 11044 | 11044-1919 | 1 | ||
| BRACKET,LOWER COWLING,RR | 11044A | 11044-1920 | 1 | ||
| GUIDE,SIDE COWLING,LH | 13070 | 13070-1171 | 1 | ||
| GUIDE,SIDE COWLING,RH | 13070A | 13070-1172 | 1 | ||
| DUCT,RADIATOR,RR,LH | 14073 | 14073-1276 | 1 | ||
| DUCT,RADIATOR,RR,RH | 14073A | 14073-1284 | 1 | ||
| PLATE-HEAT GUARD,SIDE,LH | 18018 | 18018-1068 | 1 | ||
| PLATE-HEAT GUARD,SIDE,RH | 18018A | 18018-1069 | 1 | ||
| BRACKET-COMP,RADIATOR | 23062 | 23062-1064 | 1 | ||
| BRACKET-COMP,LOWER COWLING,FR | 23062A | 23062-1065 | 1 | ||
| FLAP,SIDE COWLING,LH | 35019 | 35019-1193 | 1 | (OPTION) | |
| FLAP,SIDE COWLING,RH | 35019A | 35019-1194 | 1 | (OPTION) | |
| CAP-END,TRIM | 39031 | 39031-1055 | 2 | ||
| TRIM-SEAL,SIDE COWLING | 39145 | 39145-1056 | 1 | ||
| TRIM-SEAL,HEAT GUARD PLATE,LH | 39145A | 39145-1076 | 1 | ||
| TRIM-SEAL,HEAT GUARD PLATE,RH | 39145B | 39145-1077 | 1 | ||
| TRIM-SEAL,DUCT | 39145C | 39145-1078 | 2 | ||
| TRIM-SEAL,HEAT GUARD | 39145D | 39145-1079 | 3 | ||
| TRIM-SEAL,HEAT GUARD,RH | 39145E | 39145-1080 | 1 | ||
| TRIM-SEAL,HEAT GUARD,LH | 39145F | 39145-1084 | 1 | ||
| TRIM,INNER COWLING | 53044 | 53044-1184 | 2 | (OPTION) | |
| COWLING,LWR,P.C.GRAY | 55028 | 55028-1124-JR | 1 | CAUS | |
| COWLING,LWR,P.C.GRAY | 55028A | 55028-1124-T2 | 1 | CN | |
| COWLING,SIDE,LH,RED/GRAY | 55028B | 55028-1154-TP | 1 | CN | |
| COWLING,SIDE,LH,RED/GRAY | 55028C | 55028-1154-2Z | 1 | CAUS | |
| COWLING,SIDE,RH,RED/GRAY | 55028D | 55028-1155-TP | 1 | CN | |
| COWLING,SIDE,RH,RED/GRAY | 55028E | 55028-1155-2Z | 1 | CAUS | |
| BOLT,FLANGED,10X41,BLACK | 92001 | 92001-1844 | 2 | ||
| SCREW,6X28,BLACK | 92009 | 92009-1400 | 2 | ||
| SCREW,6X10 | 92009A | 92009-1402 | 2 | ||
| SCREW,5X10 | 92009B | 92009-1651 | 2 | ||
| SCREW,6X14 | 92009C | 92009-1662 | 16 | ||
| SCREW,6X18 | 92009D | 92009-1663 | 4 | ||
| SCREW,6X22 | 92009E | 92009-1664 | 10 | ||
| NUT,6MM | 92015 | 92015-1602 | 16 | ||
| WASHER,6X16X1 | 92022 | 92022-1818 | 12 | ||
| COLLAR,L=9.1,BLACK | 92027 | 92027-1935 | 6 | ||
| DAMPER | 92075 | 92075-1634 | 6 | ||
| BOLT-FLANGED,6X10 | 130 | 130B0610 | 2 | ||
| BOLT-FLANGED | 130A | 130C0618 | 2 | ||
| BOLT-FLANGED | 130B | 130J0812 | 2 |
