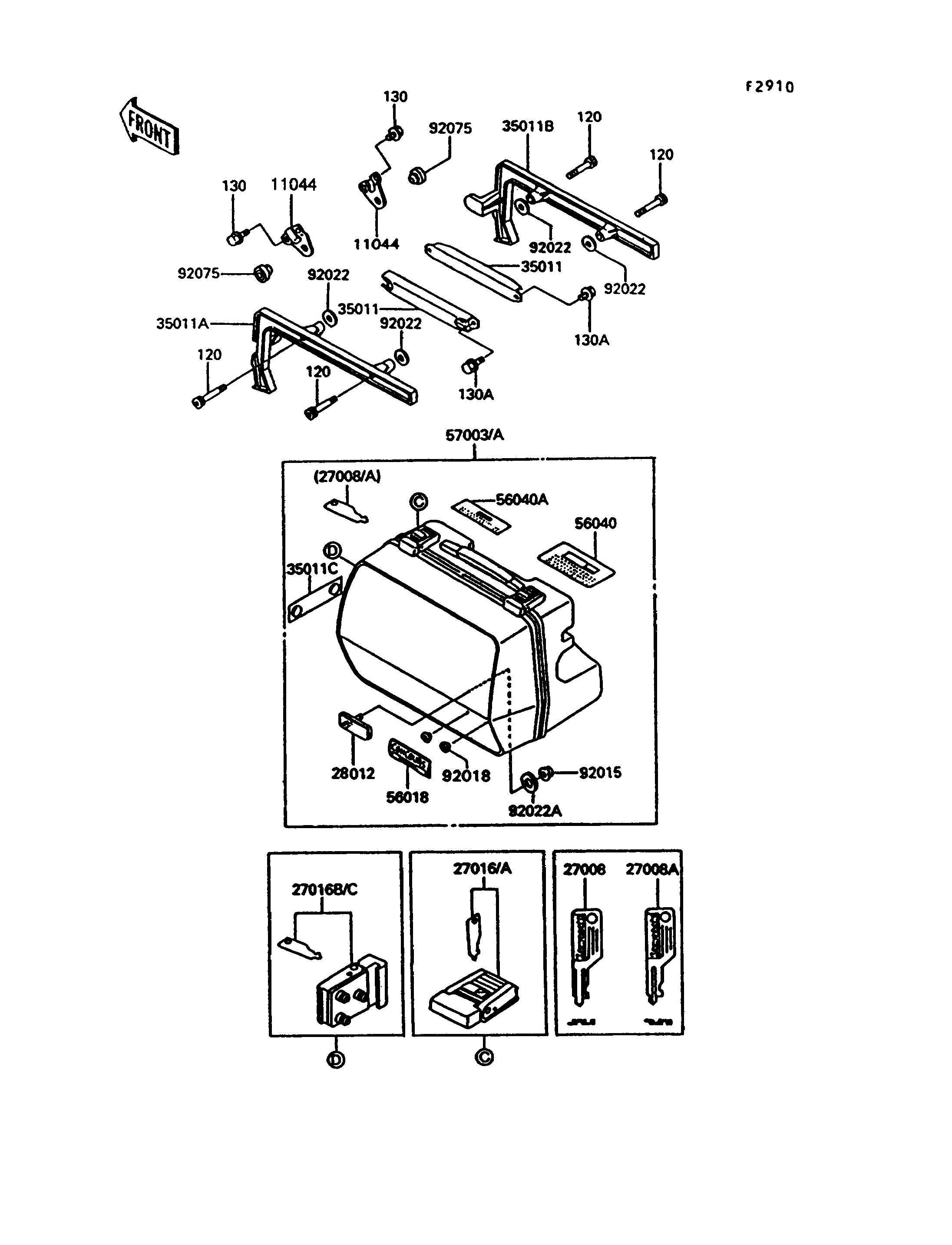

1994 Concours - Accessory

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SIDE BAG STOPPER 11044 11044-1918 2
KEY-LOCK,#A,SIDE BAG 27008 27008-1127-AA AR (OPTION)
KEY-LOCK,#B,SIDE BAG 27008A 27008-1127-BB AR (OPTION)
LOCK-ASSY,#A,SIDE BAG 27016 27016-1066-AA 4 (OPTION)
LOCK-ASSY,#B,SIDE BAG 27016A 27016-1066-BB 4 (OPTION)
LOCK-ASSY,#A,SIDE BAG MOUNT 27016B 27016-1067-AA 2 (OPTION)
LOCK-ASSY,#B,SIDE BAG MOUNT 27016C 27016-1067-BB 2 (OPTION)
REFLECTOR-REFLEX 28012 28012-1077 2
STAY,BAG 35011 35011-1299 2
STAY,BAG,LH 35011A 35011-1300 1
STAY,BAG,RH 35011B 35011-1301 1
STAY,SIDE BAG 35011C 35011-1302 2
MARK,SIDE BAG,CONCOURS 56018 56018-1948 2
LABEL-WARNING,SIDE BAG,PAYLOAD 56040 56040-1178 2
LABEL-WARNING,SIDE BAG,LOCK 56040A 56040-1192 2
BAG-ASSY,SIDE,LH 57003 57003-1068 1
BAG-ASSY,SIDE,RH 57003A 57003-1069 1
NUT,LOCK 5MM 92015 92015-1263 2
NUT,PUSH,3MM 92018 92018-005 4
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 4
WASHER,NYLON,5.3X11.5X1.5 92022A 92022-1521 2
DAMPER 92075 92075-1859 2
BOLT-SOCKET 120 120S0860 4
BOLT-FLANGED,6X12 130 130G0612 4
BOLT-FLANGED,8X16,BLACK 130A 130J0816 4
