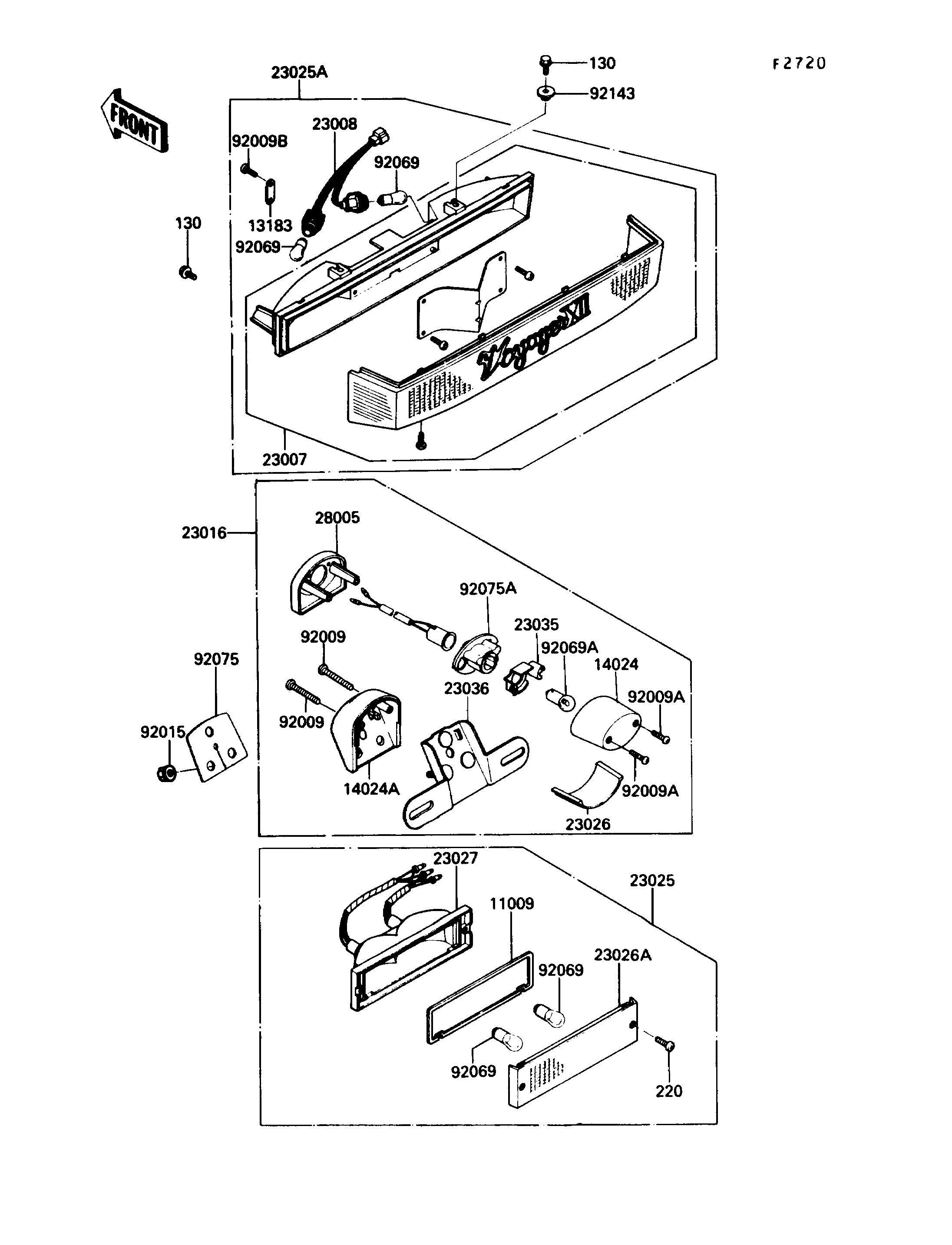

1987 Voyager XII - Tail Lamp(ZG1200-B1)

DOWNLOAD PDF
SELECT A NEW PART
130
130
220
11009
13183
14024
14024A
23007
23008
23016
23025
23025A
23026
23026A
23027
23035
23036
28005
92009
92009
92009A
92009A
92009B
92015
92069
92069
92069
92069
92069A
92075
92075A
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130C0620 4
SCREW-PAN-CROS,5X25 220 220B0525 2
GASKET,TAIL LAMP LENS 11009 11009-1582 1
PLATE,TAIL LAMP 13183 13169-1680 1
COVER,LICENSE LAMP 14024 14025-1725 1
COVER,LICENSE LAMP 14024A 14025-1728 1
LENS-COMP,TAIL LAMP 23007 23007-1145 1
SOCKET-ASSY,TAIL LAMP 23008 23008-1300 1
LAMP-ASSY,LICENSE 23016 23016-1062 1
LAMP-TAIL 23025 23025-1129 1
LAMP-TAIL 23025A 23025-1130 1
LENS,LICENSE LAMP 23026 23026-1064 1
LENS,TAIL LAMP 23026A 23026-1080 1
BODY-COMP-TAIL LAMP 23027 23027-1070 1
REFLECTOR-LAMP,LICENSE 23035 23035-1060 1
BRACKET-TAIL LAMP 23036 23036-1105 1
BODY-LAMP,LICENSE 28005 28005-1051 1
SCREW,TAPPING,5X40 92009 92009-1263 2
SCREW,TAPPING,4X20 92009A 92009-1378 2
SCREW,TAPPING,4X12 92009B 92009-1395 1
NUT,FLANGED,6MM 92015 92015-1367 3
BULB,12V 27/8W 92069 92069-059 4
BULB,12V 8W 92069A 92069-1012 1
DAMPER,LICENSE LAMP 92075 92075-1676 1
DAMPER,LICENSE LAMP 92075A 92075-1694 1
COLLAR,L=6.5 92143 92143-1025 2
