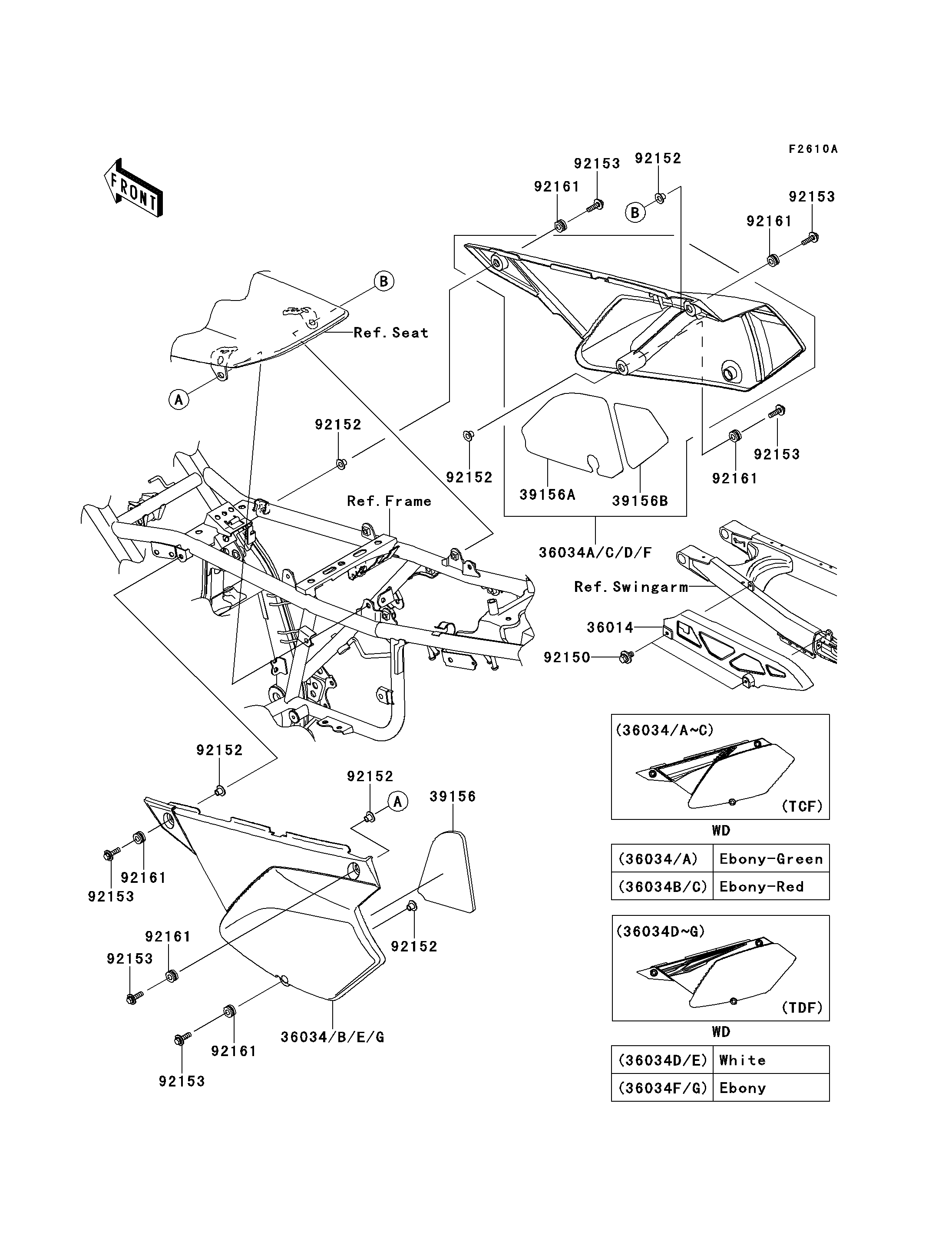

2012 KLX®250S - Side Covers/Chain Cover(TCF/TDF)
36014
36014
36034
36034
36034A
36034A
36034B
36034B
36034C
36034C
39156
39156
39156A
39156A
39156B
39156B
92150
92150
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-CHAIN | 36014 | 36014-0050 | 1 | ||
| COVER-SIDE-SUB,LH,EBONY | 36034 | 36034-5394-6C | 1 | ||
| COVER-SIDE-SUB,RH,EBONY | 36034A | 36034-5395-6C | 1 | ||
| COVER-SIDE-SUB,LH,EBONY | 36034B | 36034-5396-6C | 1 | ||
| COVER-SIDE-SUB,RH,EBONY | 36034C | 36034-5397-6C | 1 | ||
| PAD,SIDE COVER,LH | 39156 | 39156-0197 | 1 | ||
| PAD,SIDE COVER,RH | 39156A | 39156-0198 | 1 | ||
| PAD,SIDE COVER,RH | 39156B | 39156-0199 | 1 | ||
| BOLT,6X12 | 92150 | 92150-1435 | 2 | ||
| COLLAR | 92152 | 92152-0237 | 6 | ||
| BOLT,FLANGED,6X22 | 92153 | 92153-0950 | 6 | ||
| DAMPER | 92161 | 92161-0685 | 6 |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE-SUB,LH,EBONY | |
| REF # | 36034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE-SUB,RH,EBONY | |
| REF # | 36034A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE-SUB,LH,EBONY | |
| REF # | 36034B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE-SUB,RH,EBONY | |
| REF # | 36034C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,LH | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,RH | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,RH | |
| REF # | 39156B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X22 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
