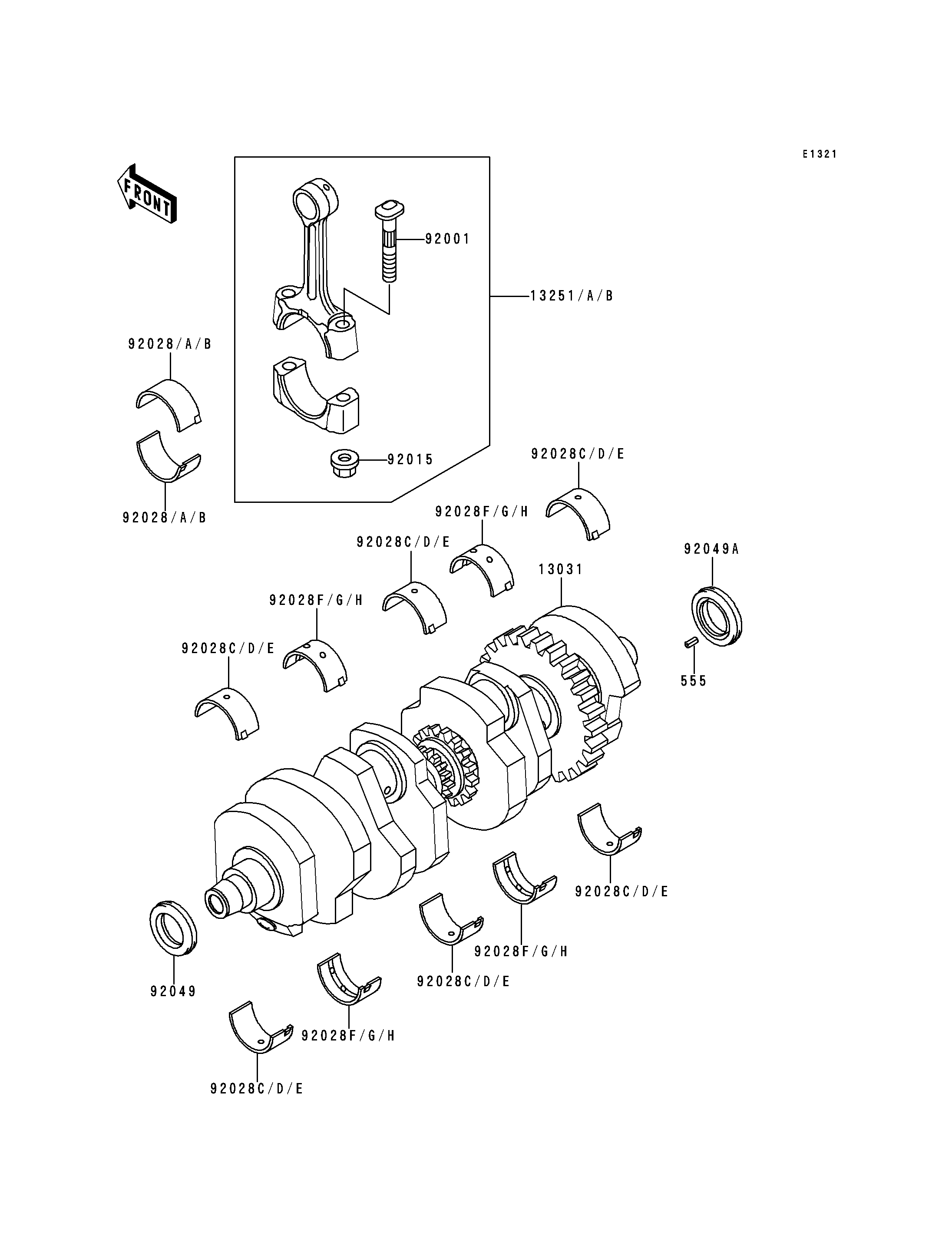

Parts Diagrams |
555
13031
13251
13251A
13251B
92001
92015
92028
92028
92028A
92028A
92028B
92028B
92028C
92028C
92028C
92028C
92028C
92028C
92028D
92028D
92028D
92028D
92028D
92028D
92028E
92028E
92028E
92028E
92028E
92028E
92028F
92028F
92028F
92028F
92028G
92028G
92028G
92028G
92028H
92028H
92028H
92028H
92049
92049A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIN-SPRING,4X8 | 555 | 555A0408 | 1 | ||
CRANKSHAFT-COMP | 13031 | 13031-1338 | 1 | ||
ROD-ASSY-CONNECTING,H | 13251 | 13251-1070-HH | 4 | ||
ROD-ASSY-CONNECTING,I | 13251A | 13251-1070-II | 4 | ||
ROD-ASSY-CONNECTING,J | 13251B | 13251-1070-JJ | 4 | ||
BOLT,CONNECTING ROD | 92001 | 92001-1980 | 8 | ||
NUT,FLANGED,8MM | 92015 | 92015-1311 | 8 | ||
BUSHING,CONNECTING ROD,BLUE | 92028 | 92028-1394 | AR | ||
BUSHING,CONNECTING ROD,BLACK | 92028A | 92028-1395 | AR | ||
BUSHING,CONNECTING ROD,BROWN | 92028B | 92028-1396 | AR | ||
BUSHING,CRANKSHAFT,BLUE | 92028C | 92028-1455 | AR | ||
BUSHING,CRANKSHAFT,BLACK | 92028D | 92028-1456 | AR | ||
BUSHING,CRANKSHAFT,BROWN | 92028E | 92028-1457 | AR | ||
BUSHING,CRANKSHAFT,BLUE | 92028F | 92028-1458 | AR | ||
BUSHING,CRANKSHAFT,BLACK | 92028G | 92028-1459 | AR | ||
BUSHING,CRANKSHAFT,BROWN | 92028H | 92028-1460 | AR | ||
SEAL-OIL,HSCY28417 | 92049 | 92049-1246 | 1 | ||
SEAL-OIL,HSCY25417 | 92049A | 92049-1247 | 1 |
