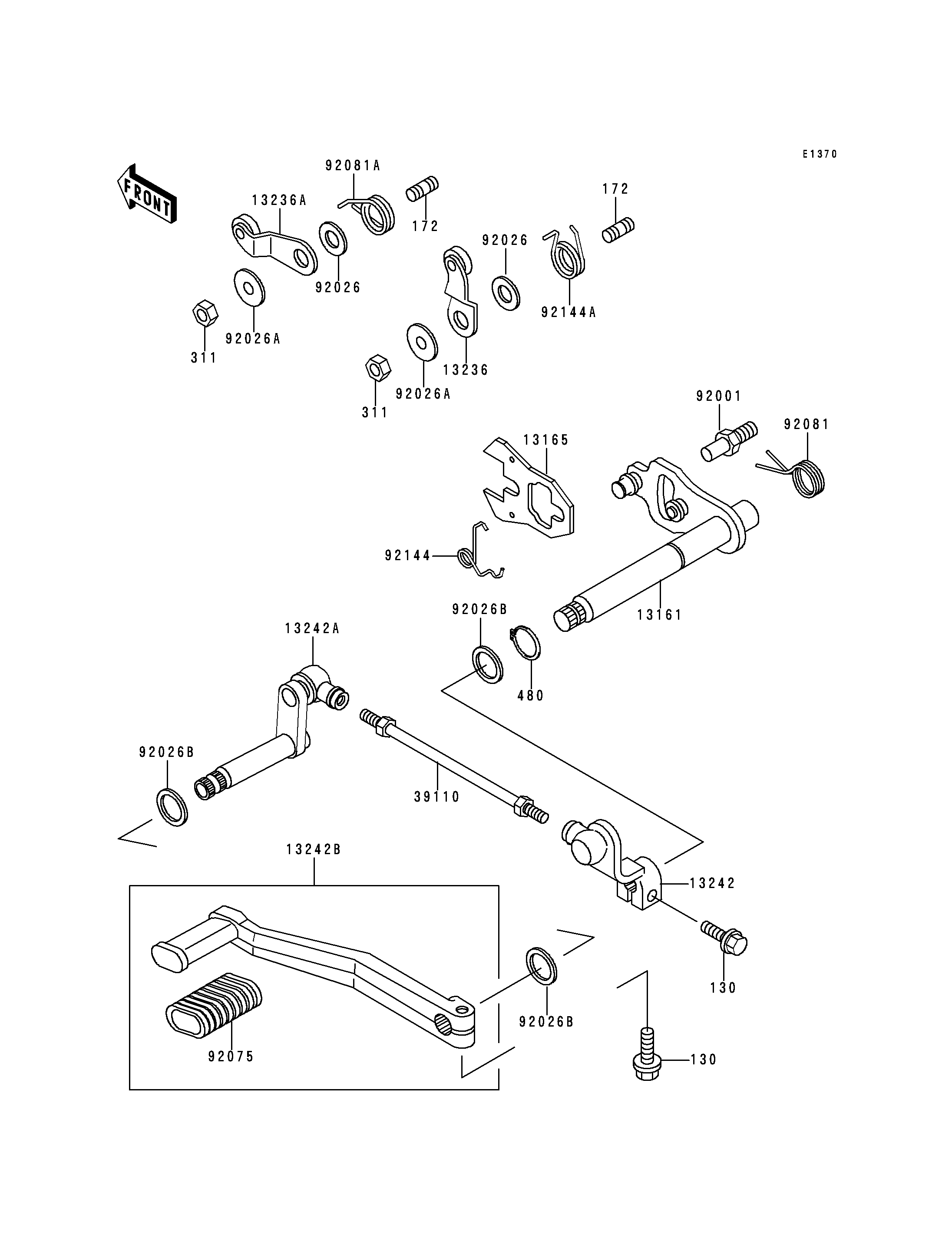

1997 Voyager XII - Gear Change Mechanism
130
130
172
172
311
311
480
13161
13165
13236
13236A
13242
13242A
13242B
39110
92001
92026
92026
92026A
92026A
92026B
92026B
92026B
92075
92081
92081A
92144
92144A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X20 | 130 | 130P0620 | 2 | ||
BOLT-STUD,6X12 | 172 | 172G0612 | 2 | ||
NUT-HEX,6MM | 311 | 311G0600 | 2 | ||
CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 | ||
LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1146 | 1 | ||
PAWL | 13165 | 13165-1120 | 1 | ||
LEVER-COMP,NEUTRAL POSITION | 13236 | 13236-1143 | 1 | ||
LEVER-COMP,GEAR POSITION | 13236A | 13236-1144 | 1 | ||
LEVER-ASSY-CHANGE | 13242 | 13242-1194 | 1 | ||
LEVER-ASSY-CHANGE,LINK | 13242A | 13242-1208 | 1 | ||
LEVER-ASSY-CHANGE,PEDAL | 13242B | 13242-1237 | 1 | ||
ROD-ASSY-TIE,L=90,BLACK | 39110 | 39110-1008 | 1 | ||
BOLT,RETURN SPRING | 92001 | 92001-1455 | 1 | ||
SPACER,6.3X12X1.0 | 92026 | 92026-094 | 2 | ||
SPACER | 92026A | 92026-1217 | 2 | ||
SPACER,13.3X18X1.0 | 92026B | 92026-1532 | 3 | ||
DAMPER,CHANGE PEDAL | 92075 | 92075-1585 | 1 | ||
SPRING,CHANGE PEDAL RETURN | 92081 | 92081-1869 | 1 | ||
SPRING,GEAR LEVER | 92081A | 92081-1942 | 1 | ||
SPRING | 92144 | 92144-1029 | 1 | ||
SPRING,NEUTRAL LEVER | 92144A | 92144-1762 | 1 |
BOLT-FLANGED,6X20 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-STUD,6X12 | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX,6MM | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,13MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP-CHANGE SHAFT | |
REF # | 13161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAWL | |
REF # | 13165 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,NEUTRAL POSITION | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,GEAR POSITION | |
REF # | 13236A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE | |
REF # | 13242 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE,LINK | |
REF # | 13242A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE,PEDAL | |
REF # | 13242B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-TIE,L=90,BLACK | |
REF # | 39110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,RETURN SPRING | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,6.3X12X1.0 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPACER | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPACER,13.3X18X1.0 | |
REF # | 92026B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER,CHANGE PEDAL | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CHANGE PEDAL RETURN | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,GEAR LEVER | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,NEUTRAL LEVER | |
REF # | 92144A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
