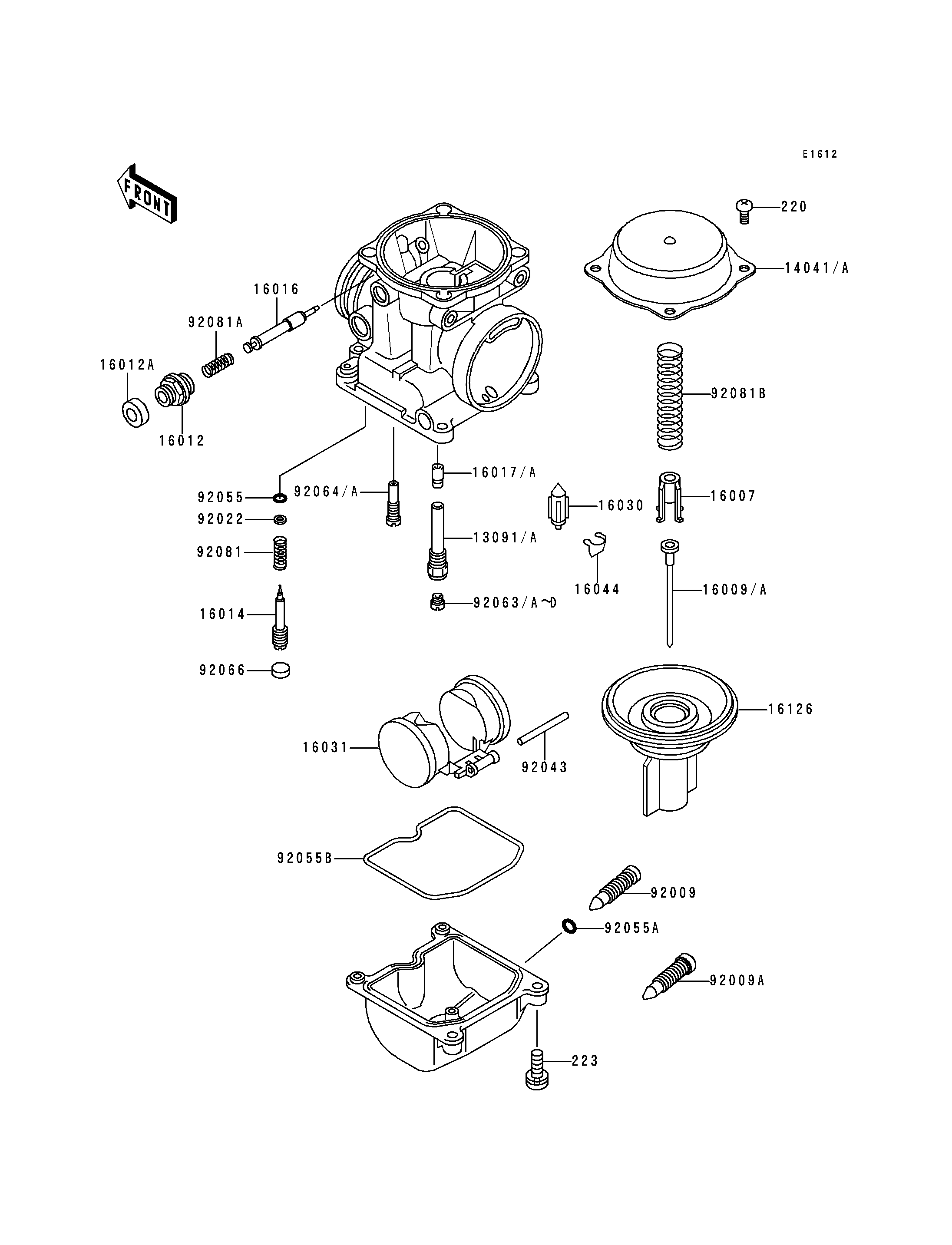

1997 Voyager XII - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
14041
14041
14041A
14041A
16007
16007
16012
16012
16012A
16012A
16014
16014
16016
16016
16017A
16017A
16030
16030
16031
16031
16044
16044
16126
16126
92009
92009
92009A
92009A
92022
92022
92043
92043
92055
92055
92055A
92055A
92055B
92055B
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92064
92064
220
220
223
223
92064A
92064A
92066
92066
92081
92081
92081A
92081A
92081B
92081B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOP-CHAMBER,MIXING,OUTSIDE 14041 14041-1076 2
TOP-CHAMBER,MIXING,INSIDE 14041A 14041-1077 2
SEAT-SPRING,THROTTLE VALVE 16007 16007-1120 4
CAP-STARTER PLUNGER 16012 16012-1051 4
CAP-STARTER PLUNGER 16012A 16012-1052 4
SCREW-PILOT AIR 16014 16014-1054 4
PLUNGER,STARTER 16016 16016-1061 4
JET-NEEDLE 16017A 16017-1316 4
VALVE-FLOAT 16030 16030-1007 4
FLOAT 16031 16031-1056 4
CLAMP,FLOAT VALVE 16044 16044-007 4
VALVE,VACUUM 16126 16126-1159 4
SCREW,DRAIN,M6X1.0 92009 92009-1095 4
SCREW,DRAIN,M6X0.75 92009A 92009-1551 4
WASHER,PLAIN 92022 92022-1003 4
PIN,FLOAT 92043 92043-1207 4
RING-O,PILOT ADJUST 92055 92055-1002 4
RING-O,DRAIN SCREW 92055A 92055-1053 4
RING-O,FLOAT CHAMBER 92055B 92055-1222 4
JET-MAIN,#110 92063 92063-1007 4 (RACING USE ONLY)
JET-MAIN,#105 92063A 92063-1009 4 (RACING USE ONLY)
JET-MAIN,#102 92063B 92063-1115 4 (RACING USE ONLY)
JET-MAIN,#108 92063C 92063-1116 4
JET-MAIN,#112 92063D 92063-1117 4 (RACING USE ONLY)
JET-PILOT,#35 92064 92064-1101 4 (RACING USE ONLY)
SCREW-PAN-CROS 220 220B0408 15
SCREW-PAN-WS-CROS 223 223C0416 16
JET-PILOT,#38 92064A 92064-1119 4
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 4
SPRING,PILOT ADJUST SCREW 92081 92081-1002 4
SPRING,STARTER PLUNGER 92081A 92081-1761 4
SPRING,VACUUM VALVE 92081B 92081-1925 4
HOLDER,NEEDLE JET 13091 13091-1259 4 CNUS
HOLDER,NEEDLE JET 13091A 13091-1463 4 CA
NEEDLE-JET,N36G 16009 16009-1316 4 CNUS
NEEDLE-JET,N36H 16009A 16009-1317 4 CA
