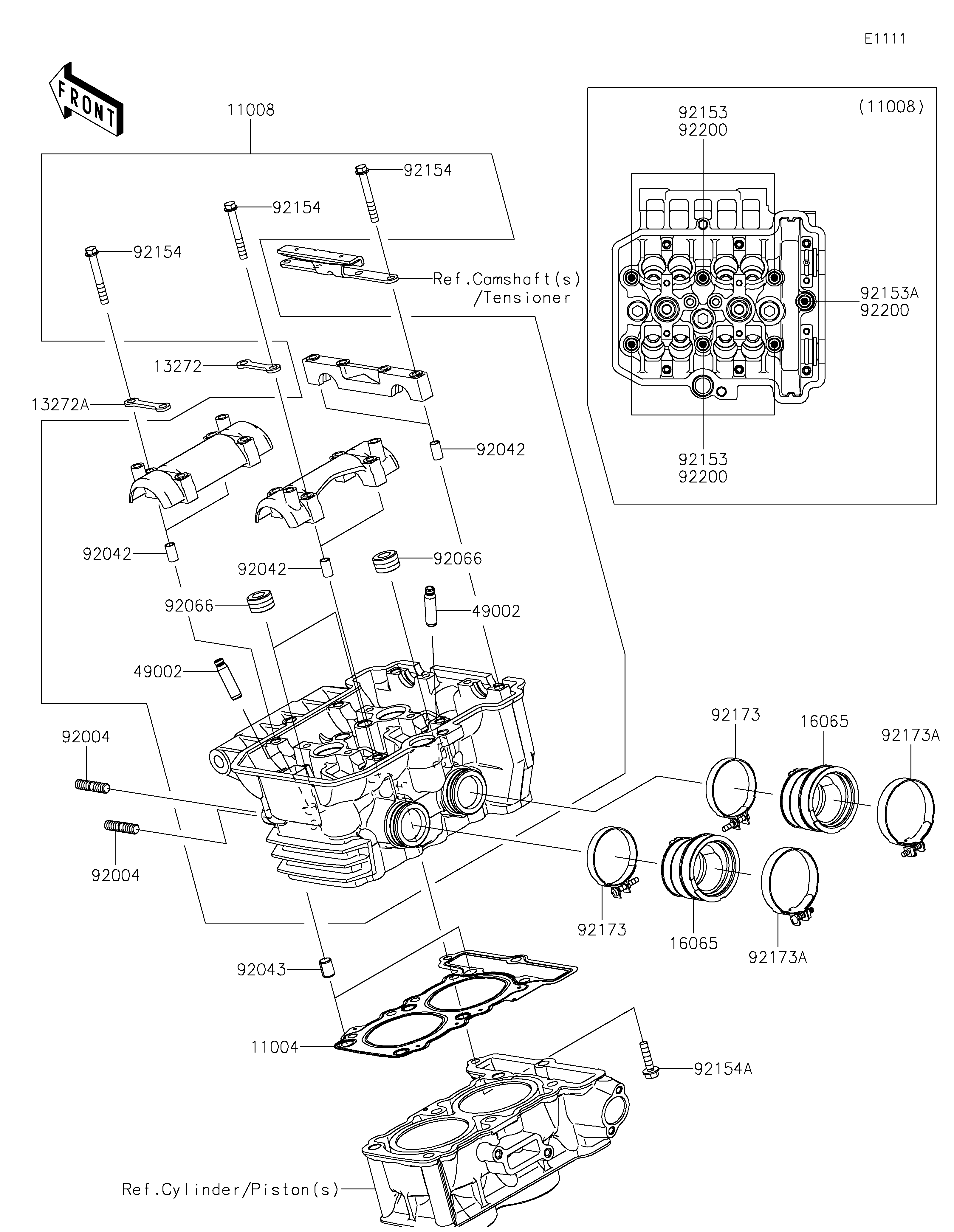

2023 Versys-X 300 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
13272
13272A
16065
16065
49002
49002
92004
92004
92042
92042
92042
92043
92066
92066
92153
92153
92153A
92154
92154
92154
92154A
92173
92173
92173A
92173A
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0734 1
HEAD-COMP-CYLINDER 11008 11008-0747 1
PLATE,IN 13272 13272-0260 2
PLATE,EX 13272A 13272-0261 2
HOLDER-CARBURETOR 16065 16065-0119 2
GUIDE-VALVE 49002 49002-0009 8
STUD,8X22 92004 92004-0040 4
PIN,DOWEL,6.3X8X14 92042 92042-007 6
PIN,8.2X10X14 92043 92043-1264 2
PLUG,PT1/2X12.5 92066 92066-0002 3
BOLT,SOCKET,8X146 92153 92153-1774 6
BOLT,SOCKET,8X115 92153A 92153-1775 1
BOLT,6X45 92154 92154-0246 12
BOLT,FLANGED,6X25 92154A 92154-2556 1
CLAMP,47MM 92173 92173-0919 2
CLAMP,53MM 92173A 92173-0956 2
WASHER,8.5X18X1.6 92200 92200-0860 7
