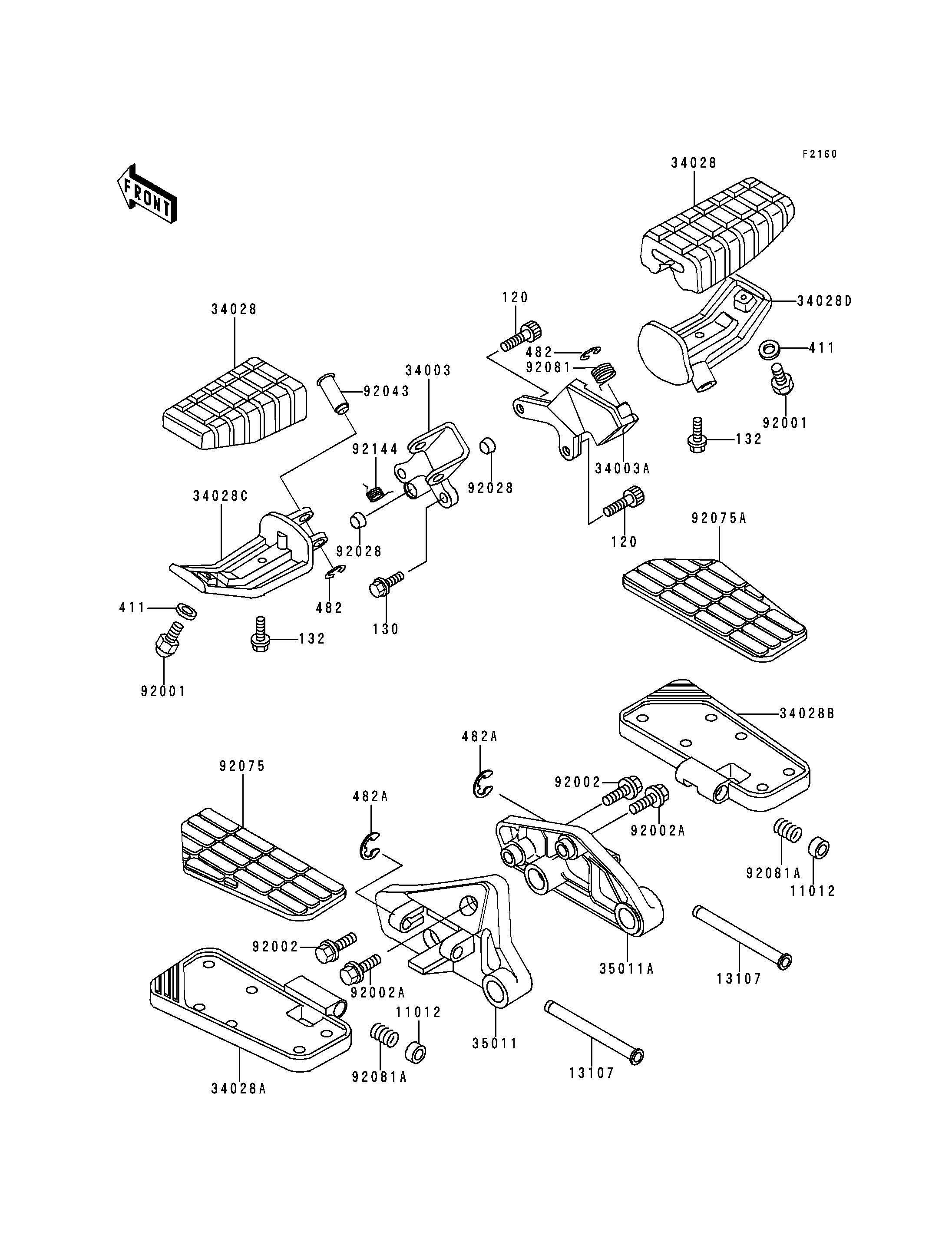

1997 Voyager XII - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
132
132
411
411
482
482
482A
482A
11012
11012
13107
13107
34003
34003A
34028
34028
34028A
34028B
34028C
34028D
35011
35011A
92001
92001
92002
92002
92002A
92002A
92028
92028
92043
92075
92075A
92081
92081A
92081A
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0814 2
BOLT-FLANGED,8X20 130 130J0820 2
BOLT-FLANGED-SMALL 132 132G0616 2
WASHER-PLAIN,6MM 411 411B0600 2
CIRCLIP-TYPE-E,10MM 482 482L0100 2
CIRCLIP-TYPE-E 482A 482L0200 2
CAP,MUFFLER STAY 11012 11012-1498 2
SHAFT,REAR STEP 13107 13107-1174 2
HOLDER-STEP,FR,LH 34003 34003-1253 1
HOLDER-STEP,FR,RH 34003A 34003-1254 1
STEP,FR,RUBBER 34028 34028-1205 2
STEP,RR,LH 34028A 34028-1231 1
STEP,RR,RH 34028B 34028-1232 1
STEP,FR,LH 34028C 34028-1381 1
STEP,FR,RH 34028D 34028-1382 1
STAY,MUFFLER,LH 35011 35011-1672 1
STAY,MUFFLER,RH 35011A 35011-1673 1
BOLT,BANK SENSOR 92001 92001-1905 2
BOLT,FLANGED,10X25 92002 92002-1828 2
BOLT,FLANGED,10X35 92002A 92002-1829 2
BUSHING,13X15X20 92028 92028-1251 2
PIN,12X37 92043 92043-1144 1
DAMPER,REAR STEP,LH,RUBBER 92075 92075-1803 1
DAMPER,REAR STEP,RH,RUBBER 92075A 92075-1804 1
SPRING,STEP RETURN 92081 92081-1956 1
SPRING,REAR STEP 92081A 92081-1957 2
SPRING,STEP RETURN 92144 92144-1568 1
