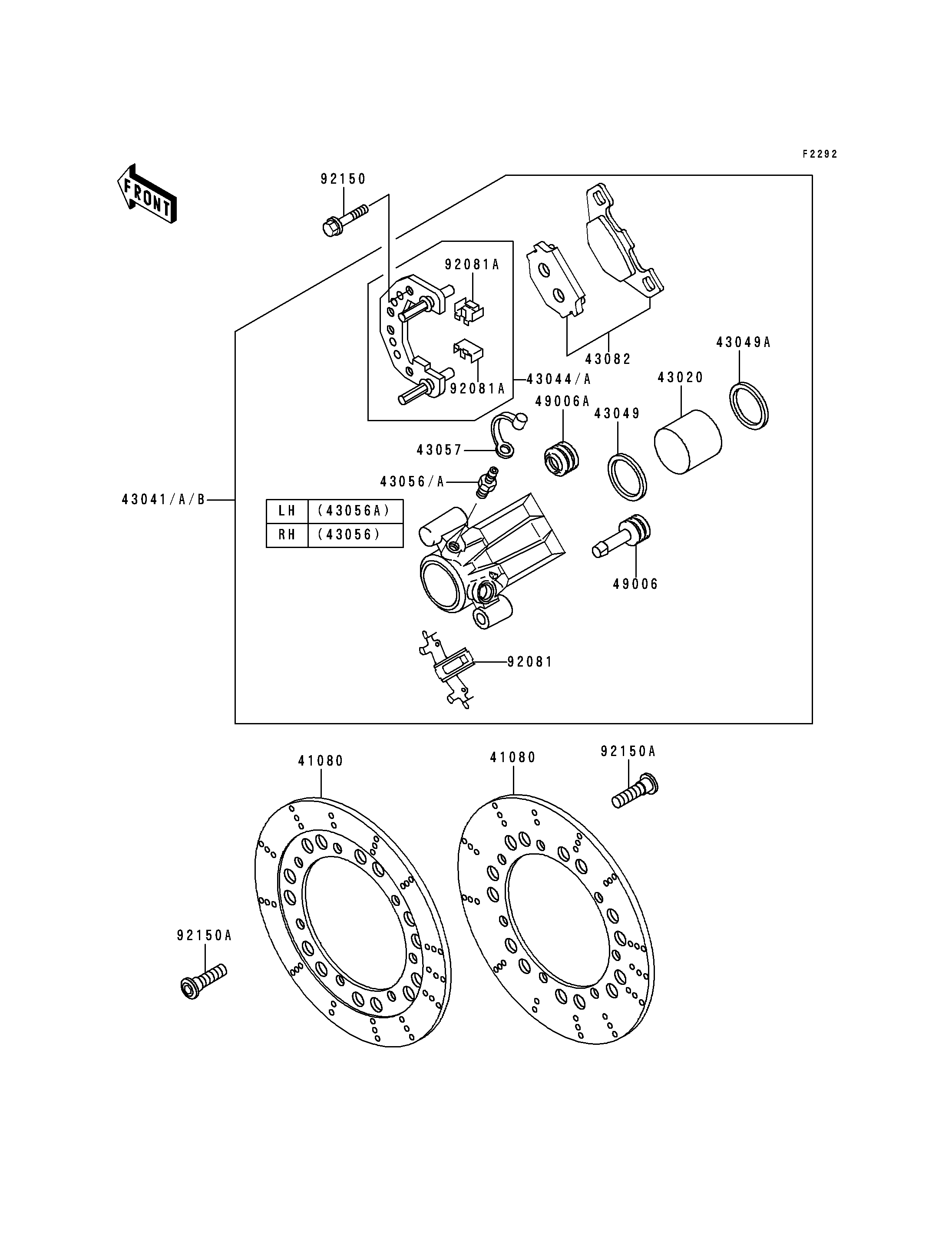

41080
41080
43020
43041
43041B
43044
43044A
43049
43049A
43056
43056A
43057
43082
49006
49006A
92081
92081A
92081A
92150
92150A
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR 41080 41080-1163 2
PISTON-COMP-BRAKE 43020 43020-1066 2
CALIPER-ASSY,FR,LH 43041 43041-1472 1
CALIPER-ASSY,FR,RH 43041B 43041-1615 1
HOLDER-COMP-CALIPER,FR,LH 43044 43044-1035 1
HOLDER-COMP-CALIPER,FR,RH 43044A 43044-1036 1
RING,PISTON SEAL 43049 43049-002 2
PACKING,PISTON 43049A 43049-1028 2
BREATHER 43056 43056-003 1
BREATHER-BRAKE 43056A 43056-1054 1
CAP-BREATHER 43057 43057-003 2
PAD-ASSY-BRAKE 43082 43082-1062 2
BOOT,CALIPER 49006 49006-1094 2
BOOT,CALIPER 49006A 49006-1095 2
SPRING,PAD 92081 92081-1525 2
SPRING,PAD STOPPER 92081A 92081-1661 4
BOLT,FLANGED,10X41 92150 92150-1004 4
BOLT,SOCKET,8X30 92150A 92150-1771 14
