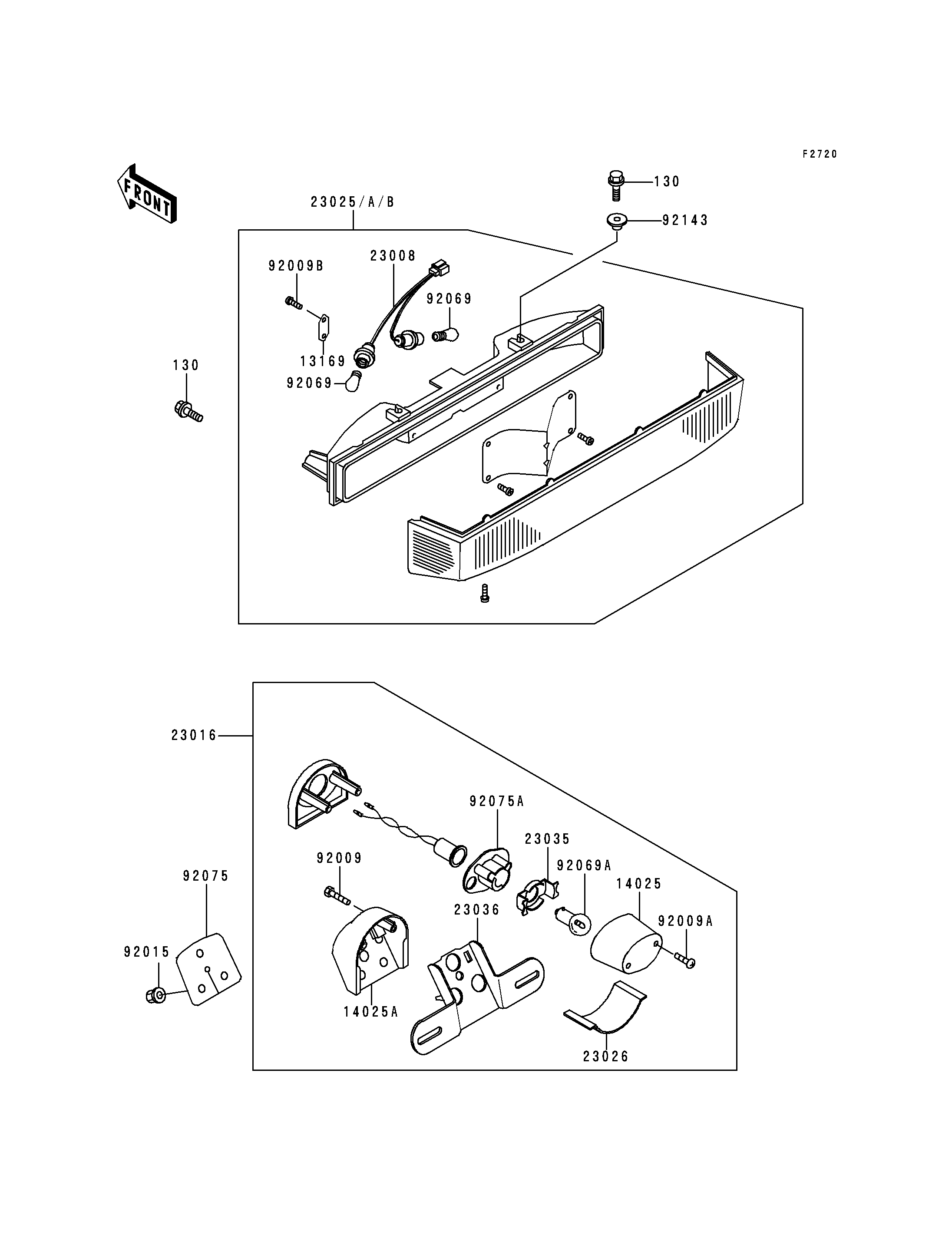

Parts Diagrams |
130
130
13169
14025
14025A
23008
23016
23025
23026
23035
23036
92009
92009A
92009B
92015
92069
92069
92069A
92075
92075A
92143
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X20 | 130 | 130C0620 | 4 | ||
PLATE,TAIL LAMP | 13169 | 13169-1680 | 1 | ||
COVER,LICENSE LAMP | 14025 | 14025-1725 | 1 | ||
COVER,LICENSE LAMP | 14025A | 14025-1728 | 1 | ||
SOCKET-ASSY,TAIL LAMP | 23008 | 23008-1300 | 1 | ||
LAMP-ASSY,LICENSE | 23016 | 23016-1062 | 1 | ||
LAMP-TAIL,RED/RED | 23025 | 23025-1180-L1 | 1 | ||
LENS,LICENSE LAMP | 23026 | 23026-1064 | 1 | ||
REFLECTOR-LAMP,LICENSE | 23035 | 23035-1060 | 1 | ||
BRACKET-TAIL LAMP | 23036 | 23036-1105 | 1 | ||
SCREW,TAPPING,5X40 | 92009 | 92009-1263 | 2 | ||
SCREW,TAPPING,4X20 | 92009A | 92009-1378 | 2 | ||
SCREW,TAPPING,4X12 | 92009B | 92009-1395 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 3 | ||
BULB,12V 27/8W | 92069 | 92069-059 | 2 | ||
BULB,12V 8W | 92069A | 92069-1012 | 1 | ||
DAMPER,LICENSE LAMP | 92075 | 92075-1676 | 1 | ||
DAMPER,LICENSE LAMP | 92075A | 92075-1694 | 1 | ||
COLLAR,L=6.5 | 92143 | 92143-1025 | 2 |
