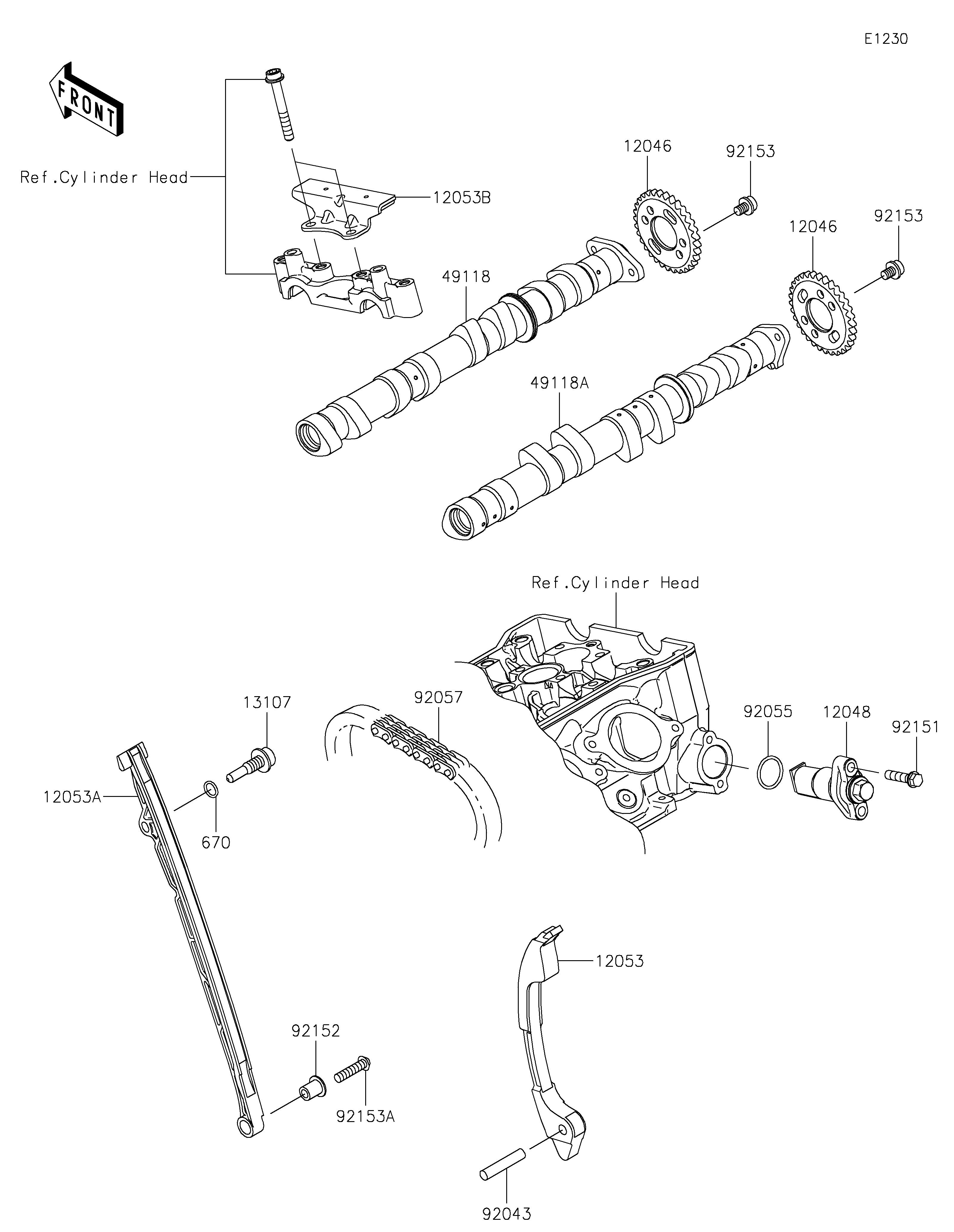

2022 Ninja ZX-6R (CA) - Camshaft(s)/Tensioner
12046
12046
12048
12053
12053A
12053B
13107
49118
49118A
92043
92055
92057
92151
92152
92153
92153
92153A
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPROCKET,32T | 12046 | 12046-0073 | 2 | ||
| TENSIONER-ASSY | 12048 | 12048-1181 | 1 | ||
| GUIDE-CHAIN,RR | 12053 | 12053-0085 | 1 | ||
| GUIDE-CHAIN,FR | 12053A | 12053-0158 | 1 | ||
| GUIDE-CHAIN,UPP | 12053B | 12053-0159 | 1 | ||
| SHAFT,CHAIN GUIDE | 13107 | 13107-0157 | 1 | ||
| CAMSHAFT-COMP,EXHAUST | 49118 | 49118-0752 | 1 | ||
| CAMSHAFT-COMP,INTAKE | 49118A | 49118-0779 | 1 | ||
| PIN,7X36.4 | 92043 | 92043-0114 | 1 | ||
| RING-O,18.8X1.9 | 92055 | 92055-086 | 1 | ||
| CHAIN,CAM | 92057 | 92057-1531 | 1 | ||
| BOLT,FLANGED-SMALL,6X25 | 92151 | 92151-1930 | 2 | ||
| COLLAR | 92152 | 92152-0413 | 1 | ||
| BOLT,FLANGED,6X8 | 92153 | 92153-0455 | 4 | ||
| BOLT,TORX,6X25 | 92153A | 92153-1640 | 1 | ||
| O RING,9MM | 670 | 670D1509 | 1 |
