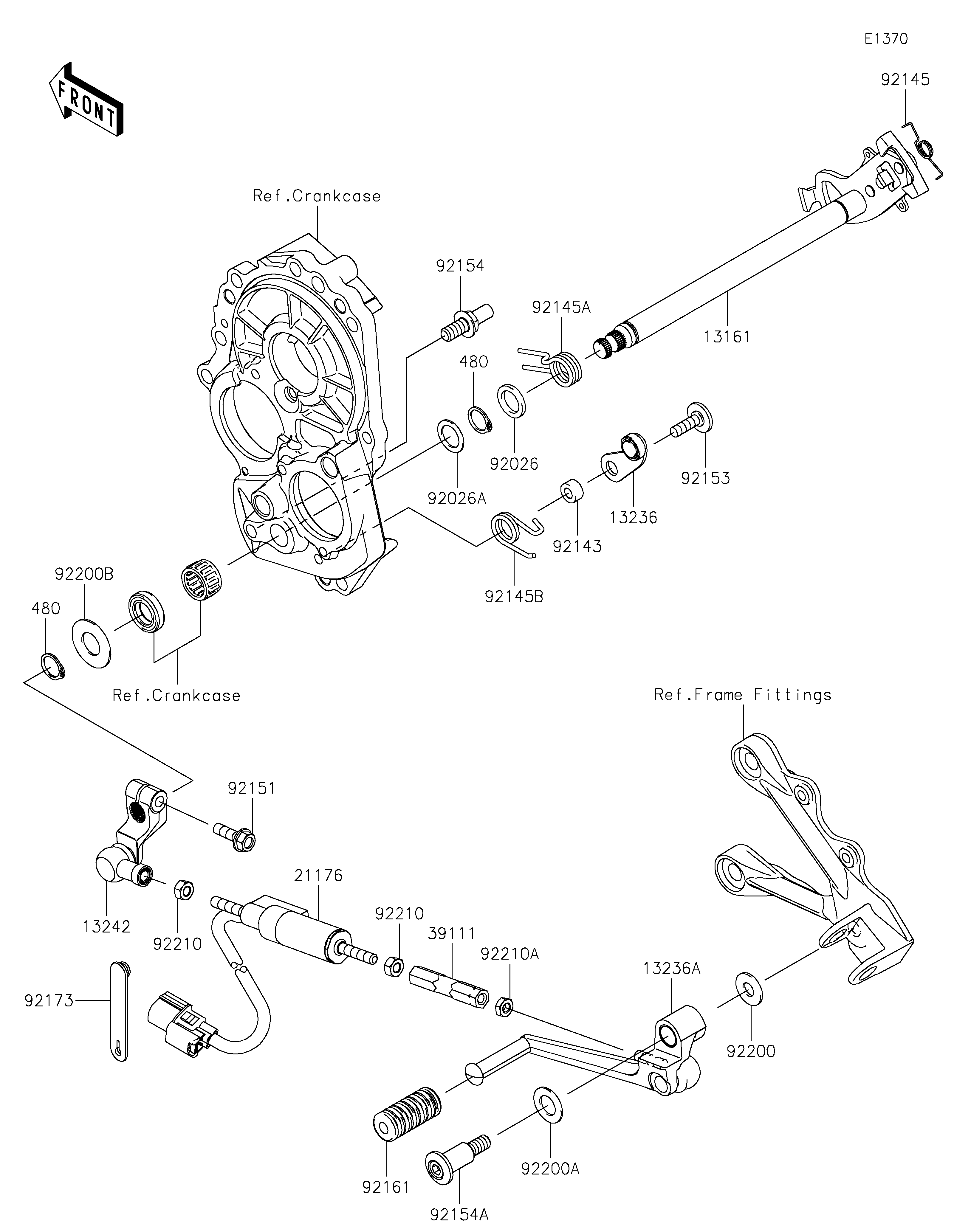

2022 Ninja ZX-6R (CA) - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
13161
13236
13236A
13242
21176
39111
92026
92026A
92143
92145
92145A
92145B
92151
92153
92154
92154A
92161
92173
92200
92200A
92200B
92210
92210
92210A
480
480
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SHAFT 13161 13161-0611 1
LEVER-COMP,POSITION 13236 13236-0114 1
LEVER-COMP,CHANGE PEDAL 13236A 13236-0809 1
LEVER-ASSY-CHANGE 13242 13242-0155 1
SENSOR,QUICK SHIFTER 21176 21176-0901 1
ROD-TIE 39111 39111-0360 1
SPACER,14X20X2.3 92026 92026-0107 1
SPACER,14X20X1.0 92026A 92026-1534 1
COLLAR 92143 92143-1595 1
SPRING 92145 92145-0414 1
SPRING,RETURN 92145A 92145-0415 1
SPRING,DRUM POSITION 92145B 92145-0717 1
BOLT,FLANGED,6X20 92151 92151-1226 1
BOLT,6X20 92153 92153-1505 1
BOLT,RETURN SPRING 92154 92154-1838 1
BOLT,SOCKET,8X37 92154A 92154-4342 1
DAMPER,CHANGE PEDAL 92161 92161-2389 1
CLAMP 92173 92173-1526 1
WASHER,8.5X20X1.5 92200 92200-0198 1
WASHER,12.5X22X1.2 92200A 92200-0199 1
WASHER 92200B 92200-0265 1
NUT,6MM 92210 92210-1100 2
NUT,LEFT HANDED,6MM 92210A 92210-1101 1
CIRCLIP-TYPE-C,14MM 480 480J1400 2
