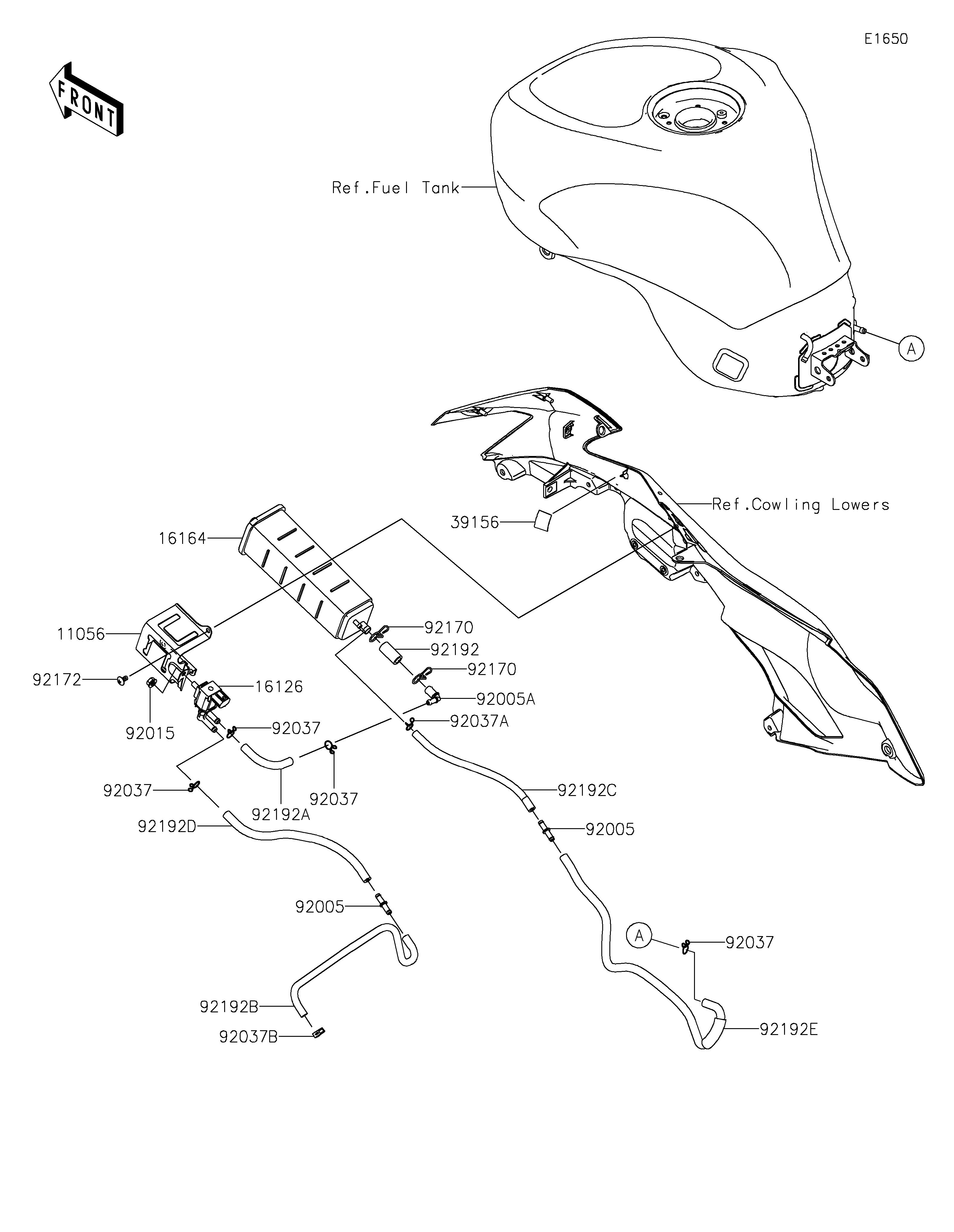

2022 Ninja ZX-6R (CA) - Fuel Evaporative System(CA)
11056
16126
16164
39156
92005
92005
92005A
92015
92037
92037
92037
92037
92037A
92037B
92170
92170
92172
92192
92192A
92192B
92192C
92192D
92192E
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CANISTER | 11056 | 11056-2018 | 1 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0009 | 1 | CA | |
| PAD,20X30X3 | 39156 | 39156-0749 | 1 | CA | |
| FITTING | 92005 | 92005-0721 | 2 | CA | |
| FITTING | 92005A | 92005-0753 | 1 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-147 | 4 | CA | |
| CLAMP | 92037A | 92037-1712 | 1 | CA | |
| CLAMP,7.8MM | 92037B | 92037-2116 | 1 | CA | |
| CLAMP | 92170 | 92170-1695 | 2 | CA | |
| SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 3 | CA | |
| TUBE,9X14.4X30 | 92192 | 92192-1148 | 1 | CA | |
| TUBE,5X10.4X80 | 92192A | 92192-1149 | 1 | CA | |
| TUBE,3.5X8.9X410 | 92192B | 92192-1150 | 1 | CA | |
| TUBE,4X9.2X200 | 92192C | 92192-1151 | 1 | CA | |
| TUBE,5X10.4X220 | 92192D | 92192-1229 | 1 | CA | |
| TUBE,5X10.4X535 | 92192E | 92192-1261 | 1 | CA |
