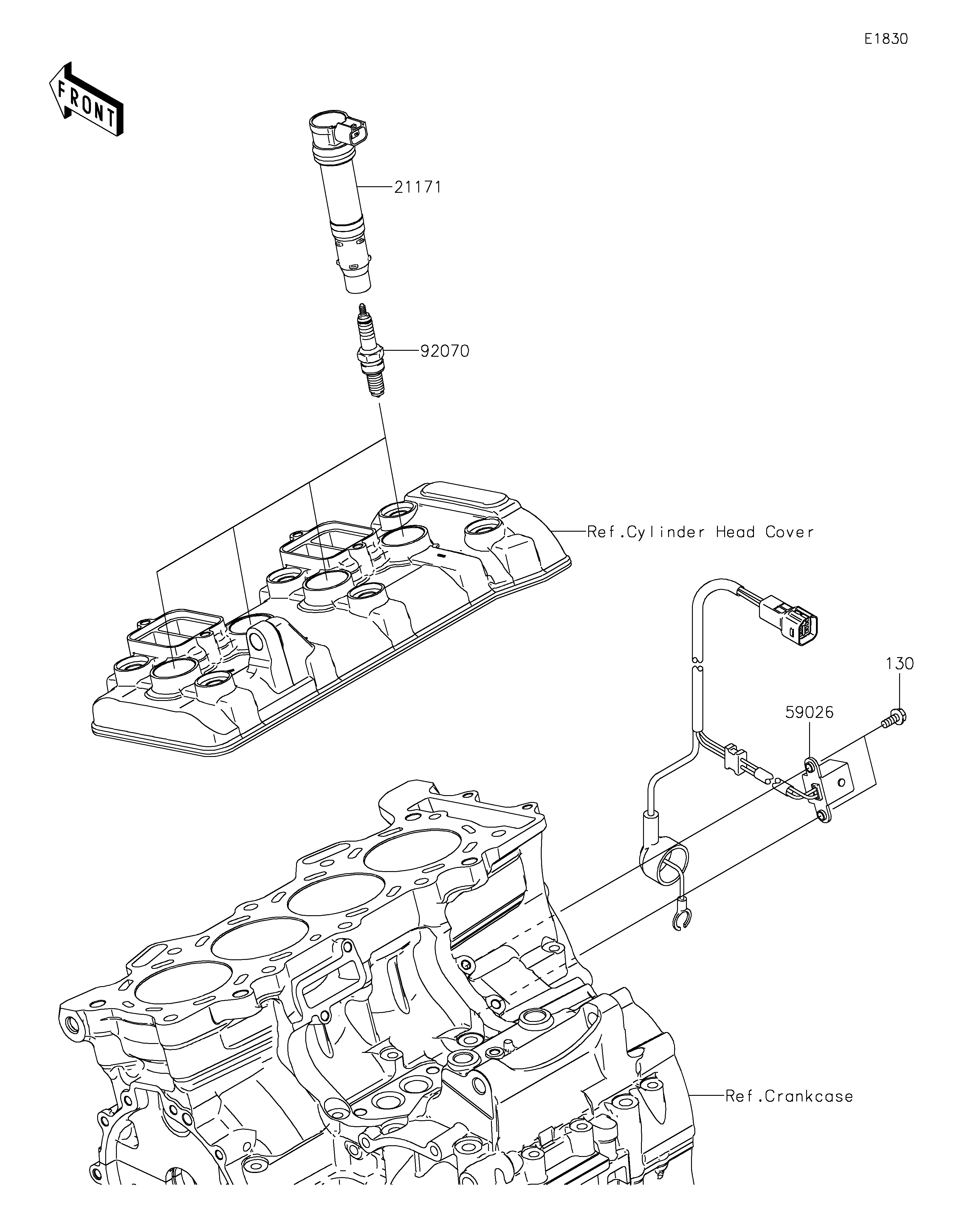

21171
59026
92070
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-ASSY-IGNITION 21171 21171-0757 4
COIL-PULSING 59026 59026-0560 1
PLUG-SPARK,CR9E(NGK) 92070 92070-1266 4
BOLT-FLANGED,5X12 130 130BA0512 2
