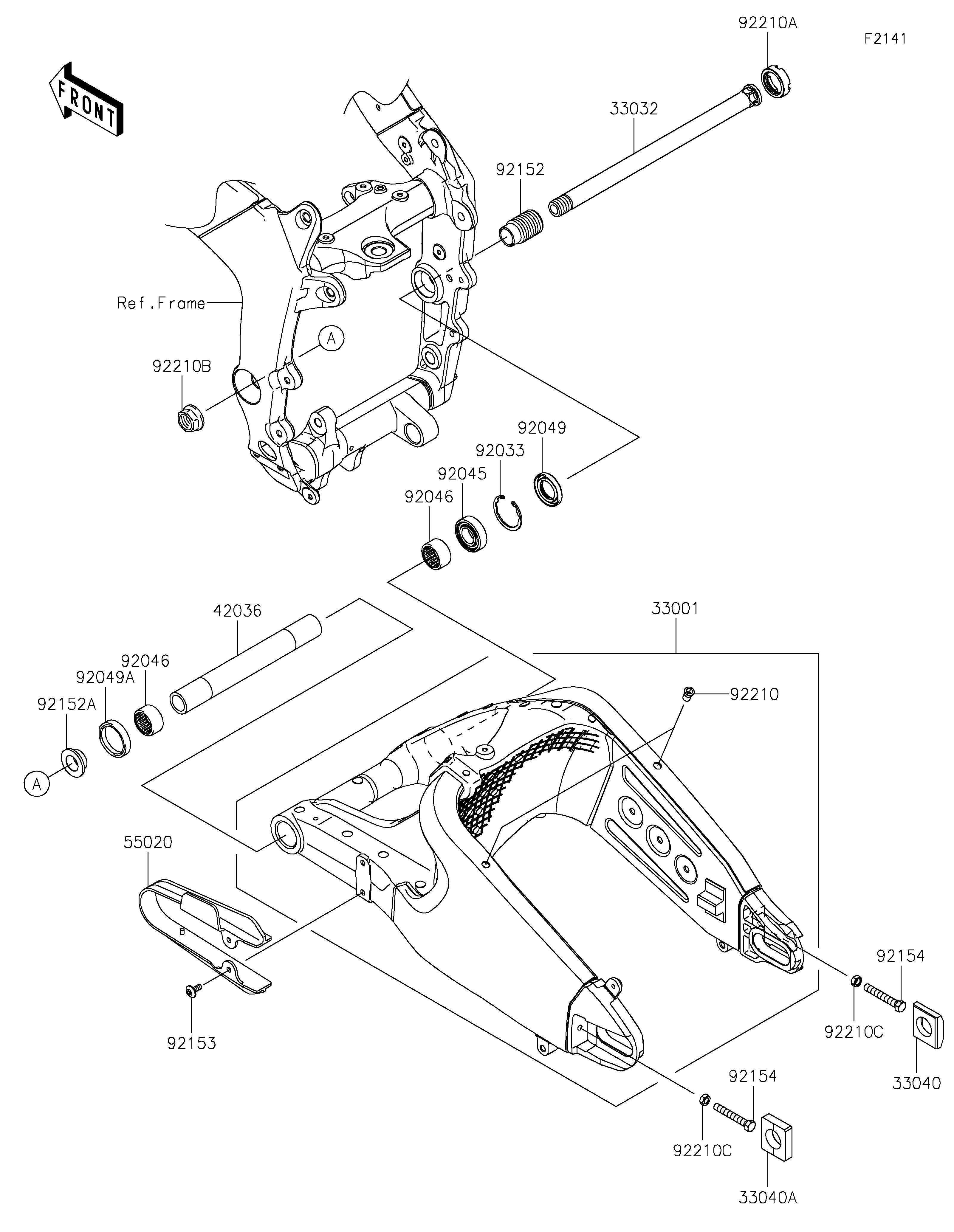

2022 Ninja ZX-6R (CA) - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
33001
33032
33040
33040A
42036
55020
92033
92045
92046
92046
92049
92049A
92152
92152A
92153
92154
92154
92210
92210A
92210B
92210C
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-COMP-SWING 33001 33001-0584 1
SHAFT-SWING ARM 33032 33032-0044 1
ADJUSTER-CHAIN,RH 33040 33040-0027 1
ADJUSTER-CHAIN,LH 33040A 33040-1114 1
SLEEVE,20.1X28X226 42036 42036-0069 1
GUARD,CHAIN 55020 55020-0384 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 2
SEAL-OIL,MHSA25X42X6 92049 92049-1314 1
SEAL-OIL,MHSA25X34X7 92049A 92049-1352 1
COLLAR,SWING ARM,L=47 92152 92152-0154 1
COLLAR,SWING ARM,L=12.5 92152A 92152-1234 1
BOLT,SOCKET,6X14 92153 92153-0422 1
BOLT-SMALL,8X55 92154 92154-1962 2
NUT,6MM 92210 92210-0099 2
NUT,30MM 92210A 92210-0134 1
NUT,FLANGED,20MM 92210B 92210-0320 1
NUT-HEX-SMALL,8MM 92210C 92210-1459 2
