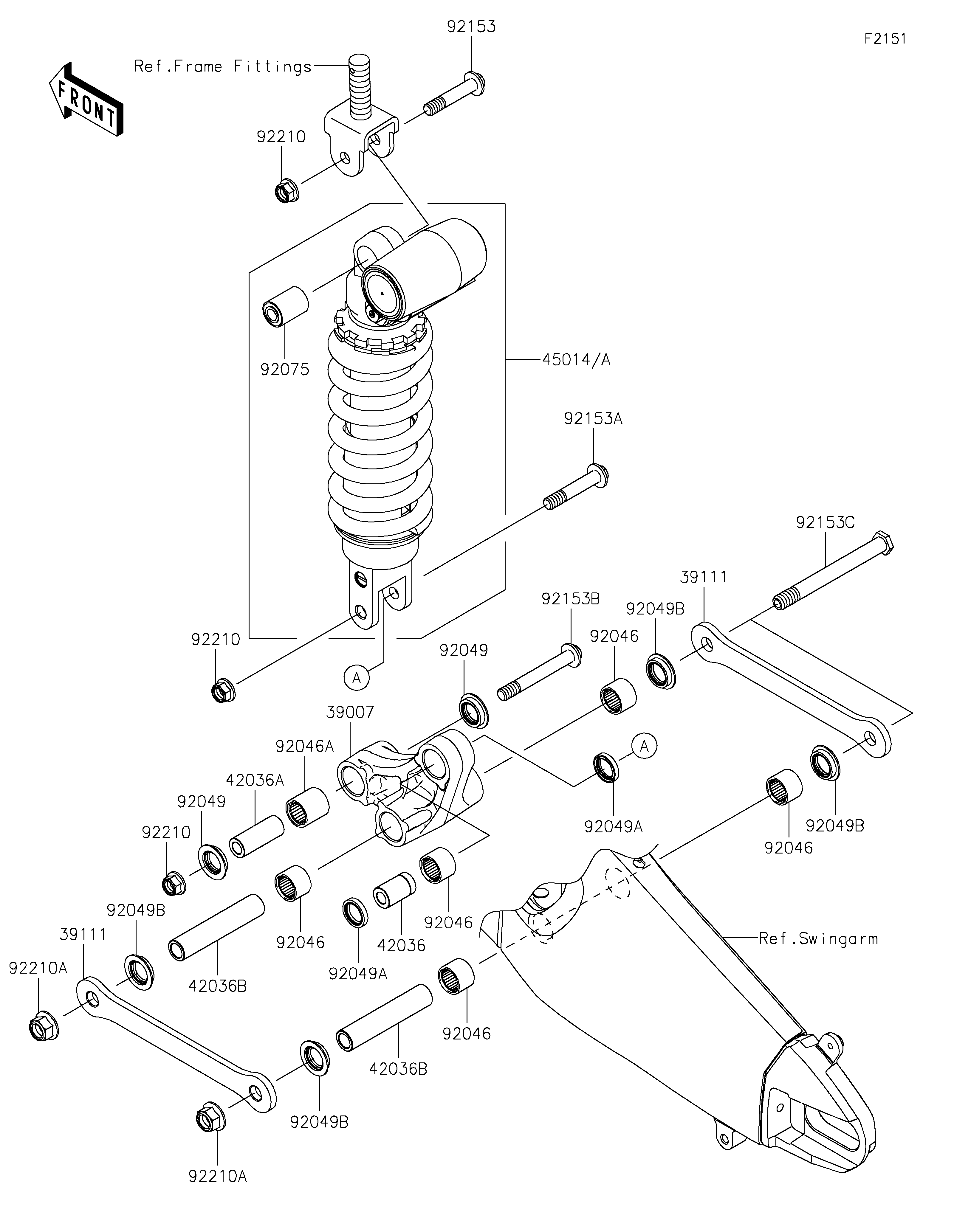

2022 Ninja ZX-6R (CA) - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
39007
39111
39111
42036
42036A
42036B
42036B
45014A
92046
92046
92046
92046
92046
92046A
92049
92049
92049A
92049A
92049B
92049B
92049B
92049B
92075
92153
92153A
92153B
92153C
92210
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-0045 1
ROD-TIE,SUSPENSION 39111 39111-0316 2
SLEEVE,10.1X18X30 42036 42036-1258 1
SLEEVE,10.1X17X44.5 42036A 42036-1342 1
SLEEVE,12.1X18X90 42036B 42036-1360 2
SHOCKABSORBER,BLACK+BLK 45014A 45014-0393-52E 1 _________________________________________CA,US
BEARING-NEEDLE,SFYZM182417 92046 92046-1272 5
BEARING-NEEDLE,SFYZM172425 92046A 92046-1273 1
SEAL-OIL,MHA17245.7F 92049 92049-1223 2
SEAL-OIL,MHA18244 92049A 92049-1225 2
SEAL-OIL,KCR MF018N1 92049B 92049-1493 4
DAMPER,SHOCKABSORBER 92075 92075-1426 1
BOLT,FLANGED,10X51 92153 92153-1545 1
BOLT,FLANGED,10X55 92153A 92153-1546 1
BOLT,FLANGED,10X77 92153B 92153-1547 1
BOLT,12X114 92153C 92153-1662 2
NUT,LOCK,FLANGED,10MM 92210 92210-1139 3
NUT,LOCK,FLANGED,12MM 92210A 92210-1150 2
