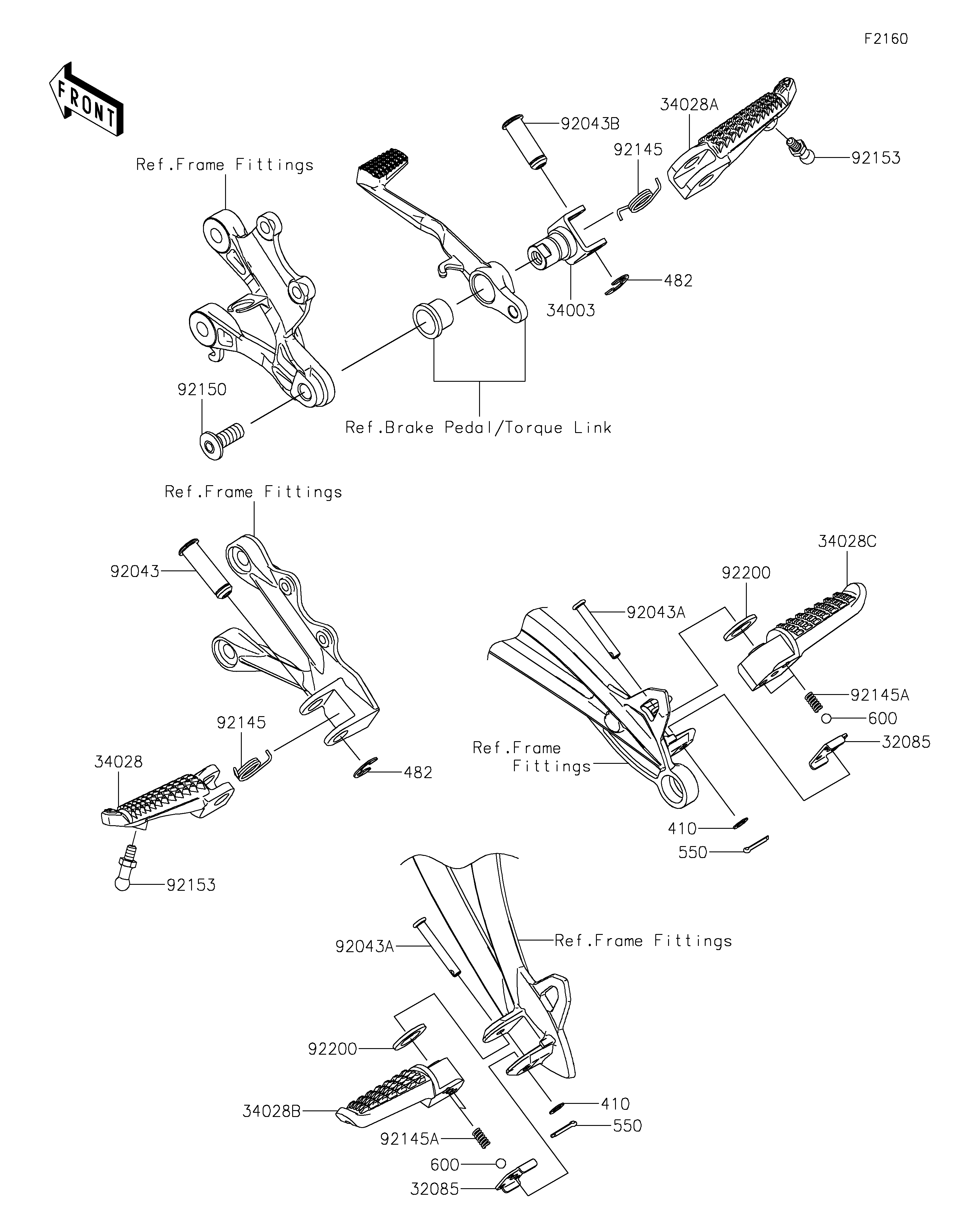

2022 Ninja ZX-6R (CA) - Footrests

DOWNLOAD PDF
SELECT A NEW PART
32085
32085
34003
34028
34028A
34028B
34028C
92043
92043A
92043A
92043B
92145
92145
92145A
92145A
92150
92153
92153
92200
92200
410
410
482
482
550
550
600
600
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER,REAR STEP 32085 32085-0047 2
HOLDER-STEP,FR,RH 34003 34003-0097 1
STEP,FR,LH 34028 34028-0092 1
STEP,FR,RH 34028A 34028-0093 1
STEP,RR,LH 34028B 34028-0094 1
STEP,RR,RH 34028C 34028-0095 1
PIN,12X36.5 92043 92043-0028 1
PIN,6X43 92043A 92043-0770 2
PIN,12X35.5 92043B 92043-1701 1
SPRING,STEP RETURN 92145 92145-0376 2
SPRING 92145A 92145-1319 4
BOLT,SOCKET,10X25 92150 92150-1268 1
BOLT,BANK SENSOR 92153 92153-1938 2
WASHER,16X26X2.3 92200 92200-0043 2
WASHER-PLAIN-SMALL 410 410AA0600 2
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
PIN-COTTER,2.5X15 550 550S2515 2
BALL-STEEL,1/4 600 600A0800 4
