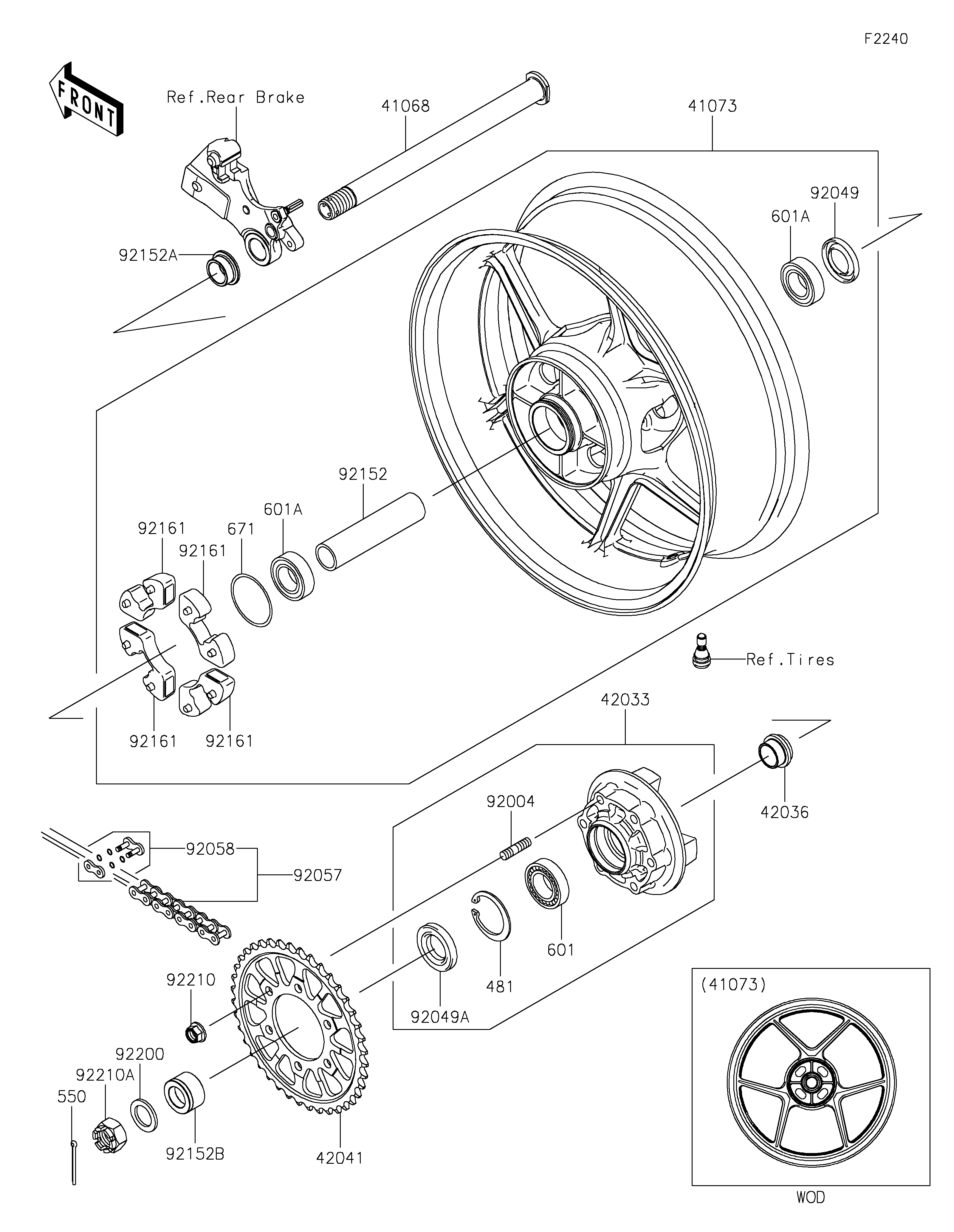

2022 Ninja ZX-6R (CA) - Rear Wheel/Chain
41068
41073
42033
42036
42041
92004
92049
92049A
92057
92058
92152
92152A
92152B
92161
92161
92161
92161
92200
92210
92210A
481
550
601
601A
601A
671
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
AXLE,RR,24X326 | 41068 | 41068-0613 | 1 | ||
WHEEL-ASSY,RR,G.BLACK | 41073 | 41073-0729-18F | 1 | ||
COUPLING-ASSY,RR HUB | 42033 | 42033-0026 | 1 | ||
SLEEVE,RR HUB,L=22 | 42036 | 42036-1279 | 1 | ||
SPROCKET-HUB,43T | 42041 | 42041-0094 | 1 | ||
STUD,10X19 | 92004 | 92004-0028 | 6 | ||
SEAL-OIL,31X52X5 | 92049 | 92049-0722 | 1 | ||
SEAL-OIL,PJN 40 55 8 | 92049A | 92049-1376 | 1 | ||
CHAIN,DRIVE,DID520HV2X112L | 92057 | 92057-0775 | 1 | ||
JOINT-CHAIN | 92058 | 92058-0064 | 1 | ||
COLLAR,RR HUB,L=137 | 92152 | 92152-0214 | 1 | ||
COLLAR,RR AXLE,RH,L=16 | 92152A | 92152-1246 | 1 | ||
COLLAR,RR AXLE,LH,L=23.5 | 92152B | 92152-1254 | 1 | ||
DAMPER,SHOCK,RR HUB | 92161 | 92161-0342 | 4 | ||
WASHER,25.5X38X3.2 | 92200 | 92200-0278 | 1 | ||
NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 6 | ||
NUT,CASTLE,24MM | 92210A | 92210-0280 | 1 | ||
CIRCLIP | 481 | 481J5500 | 1 | ||
PIN-COTTER,4.0X45 | 550 | 550AA4045 | 1 | ||
BEARING-BALL,#6006G | 601 | 601B6006G | 1 | ||
BEARING-BALL | 601A | 601B6205UU | 2 | ||
O RING,60MM | 671 | 671B2560 | 1 |
