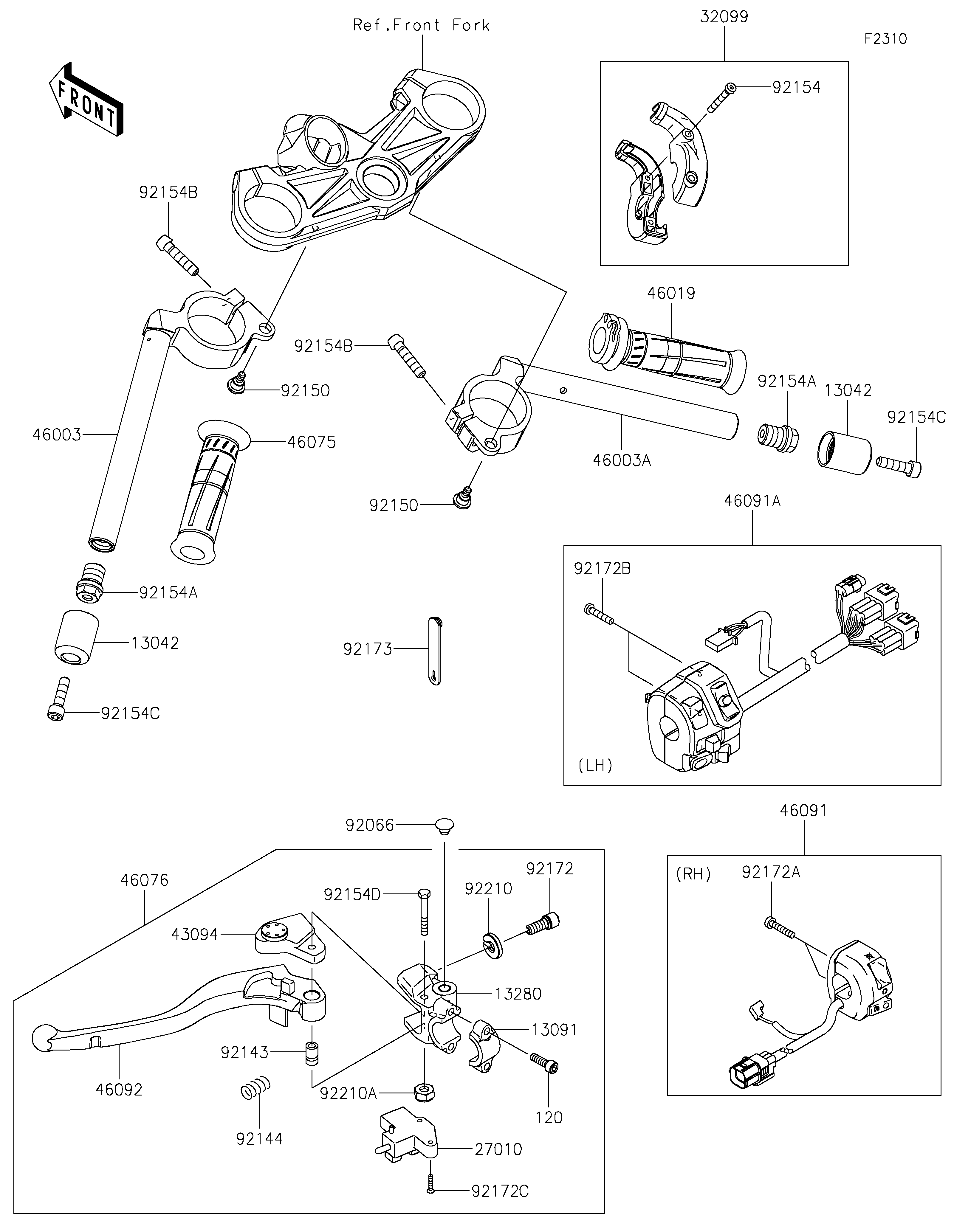

2022 Ninja ZX-6R (CA) - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13042
13042
13091
13280
27010
32099
43094
46003
46003A
46019
46075
46076
46091
46091A
46092
92066
92143
92144
92150
92150
92154
92154A
92154A
92154B
92154B
92154C
92154C
92154D
92172
92172A
92172B
92172C
92173
92210
92210A
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-5001 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER,CLUTCH LEVER 13280 13280-0248 1
SWITCH,CLUTCH 27010 27010-0854 1
CASE,THROTTLE 32099 32099-0766 1
ADJUSTER 43094 43094-0008 1
HANDLE,LH 46003 46003-0600 1
HANDLE,RH 46003A 46003-0601 1
GRIP-ASSY,THROTTLE 46019 46019-0020 1
GRIP,LH 46075 46075-0068 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0121 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0421 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0613 1
LEVER-GRIP 46092 46092-0568 1
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
BOLT,6MM 92150 92150-1090 2
BOLT,SOCKET,5X35 92154 92154-1530 2
BOLT,17X18 92154A 92154-1902 2
BOLT,SOCKET,8X35 92154B 92154-1969 2
BOLT,SOCKET,8X30 92154C 92154-1970 2
BOLT 92154D 92154-2318 1
SCREW 92172 92172-1138 1
SCREW-PAN-CROS,5X22 92172A 92172-1139 2
SCREW-PAN-CROS,5X25 92172B 92172-1140 2
SCREW,3X16 92172C 92172-1185 2
CLAMP 92173 92173-1526 1
NUT 92210 92210-1519 1
NUT,LOCK,6MM 92210A 92210-1544 1
BOLT-SOCKET,6X20 120 120CC0620 2
