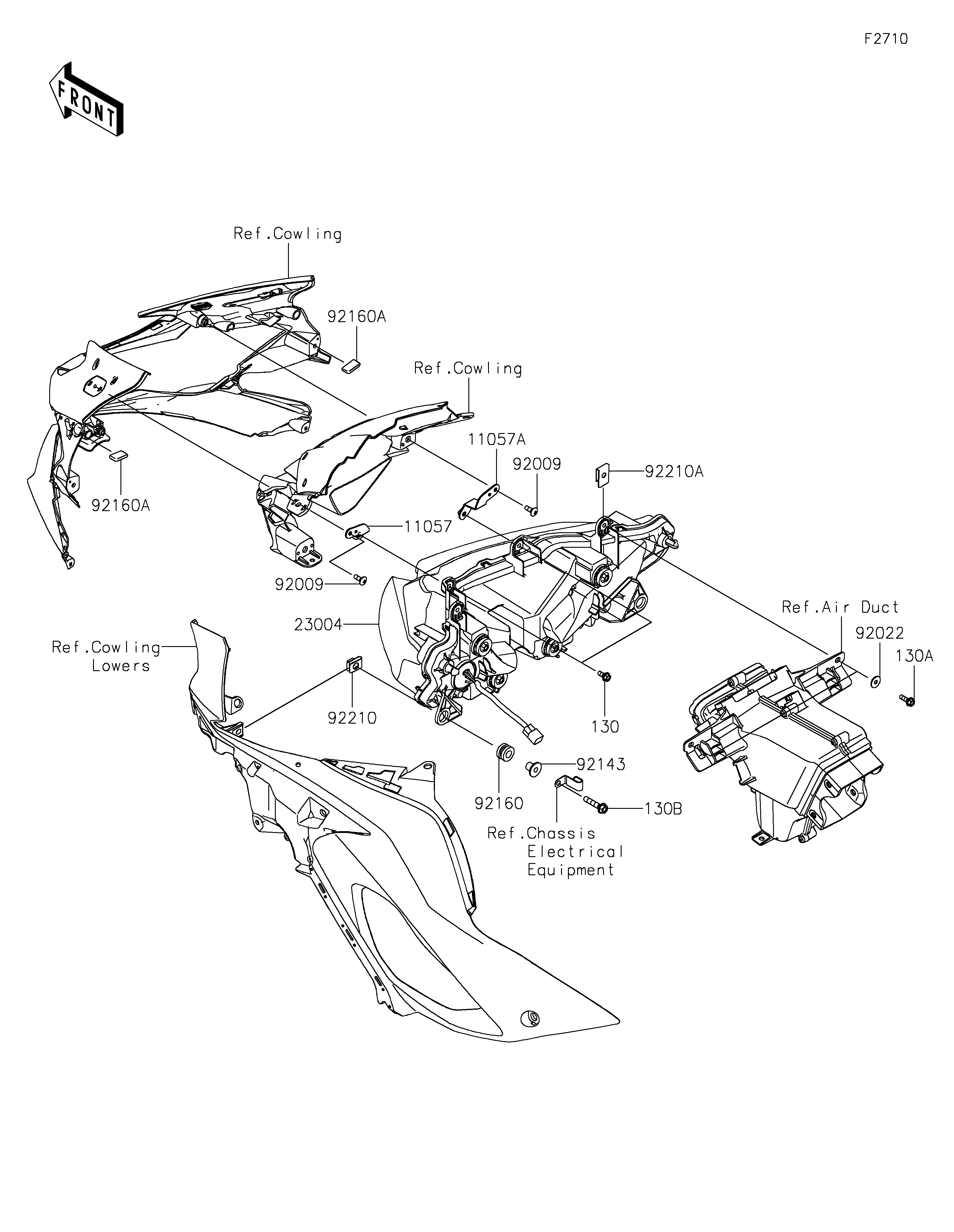

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LH 11057 11057-1639 1
BRACKET,RH 11057A 11057-1640 1
LAMP-HEAD,LED 23004 23004-0420 1
SCREW,TAPPING,5X14 92009 92009-1197 2
WASHER,5.2X16X1.2 92022 92022-263 2
COLLAR 92143 92143-1353 2
DAMPER,10X20X12 92160 92160-1167 2
DAMPER 92160A 92160-1190 2
NUT 92210 92210-0130 2
NUT 92210A 92210-1652 2
BOLT-FLANGED,5X12 130 130BA0512 2
BOLT-FLANGED,5X16 130A 130BA0516 2
BOLT-FLANGED,6X30 130B 130BB0630 2
