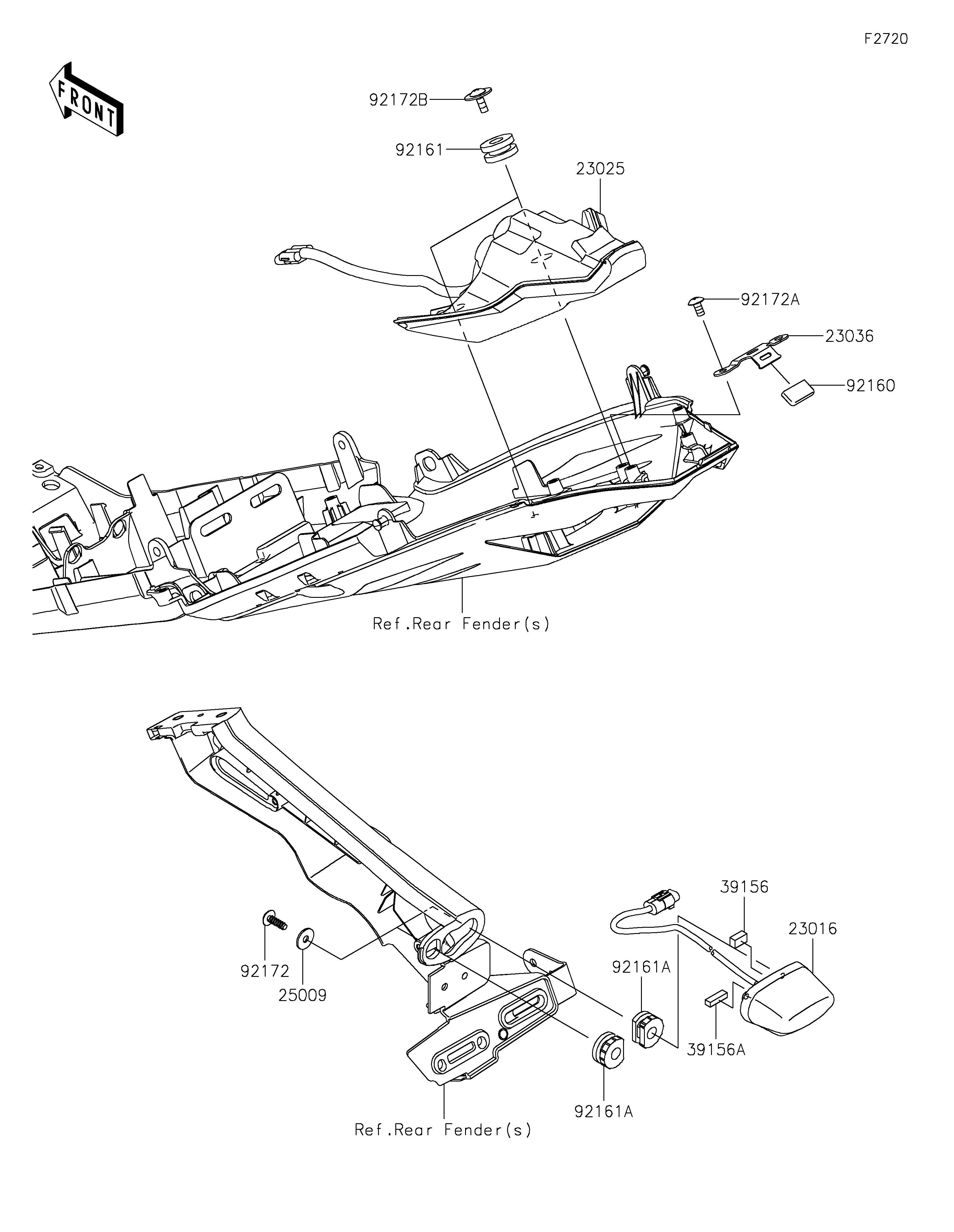

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-ASSY,LICENSE,LED 23016 23016-0637 1
LAMP-TAIL,LED 23025 23025-0385 1
BRACKET-TAIL LAMP 23036 23036-0026 1
WASHER,5.2X16X1.2 25009 25009-004 2
PAD,7X12X5 39156 39156-2292 1
PAD,4X17X5 39156A 39156-2293 1
DAMPER 92160 92160-1190 1
DAMPER 92161 92161-0163 2
DAMPER,9X23X12 92161A 92161-1885 2
SCREW,TAPPING,5X16 92172 92172-0238 2
SCREW,TAPPING,5X10 92172A 92172-0262 2
SCREW,TAPPING,WP,5X14 92172B 92172-0441 2
