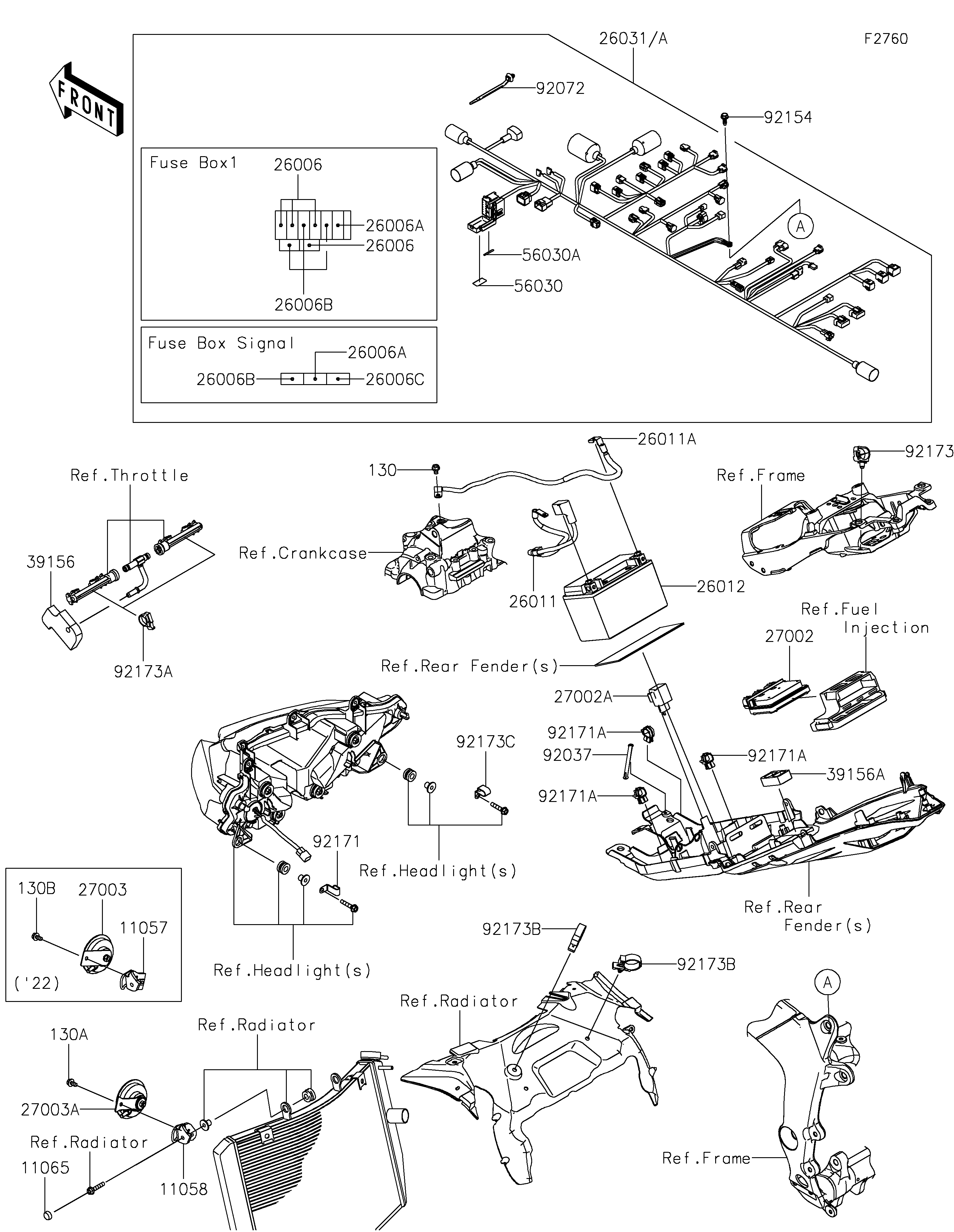

2022 Ninja ZX-6R (CA) - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057
11065
26006
26006
26006A
26006A
26006B
26006B
26006C
26011
26011A
26012
26031A
27002
27002A
27003
39156
39156A
56030
56030A
92037
92072
92154
92171
92171A
92171A
92171A
92173
92173A
92173B
92173B
92173C
130
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HORN 11057 11057-2410 1
CAP,BOLT 11065 11065-0752 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 4
FUSE,MINI BLADE,2A,GRAY 26006A 26006-0052 2
FUSE,MINI BLADE,7.5A,BROWN 26006B 26006-0055 4
FUSE,MINI BLADE,30A,GREEN 26006C 26006-1080 1
WIRE-LEAD,BATTERY(+) 26011 26011-1857 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1859 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-0838 1
HARNESS,MAIN 26031A 26031-2616 1 CA
RELAY-ASSY 27002 27002-0050 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1097 1
HORN 27003 27003-0140 1
PAD,T15 39156 39156-0962 1
PAD,32X52X15 39156A 39156-2146 1
LABEL,FUSE BOX1 56030 56030-1417 1
LABEL,FUSE BOX SIGNAL 56030A 56030-1418 1
CLAMP,SPEED,L=80.5 92037 92037-1903 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 AR
BOLT,FLANGED,6X16 92154 92154-0551 1
CLAMP 92171 92171-0926 1
CLAMP,EDGE CLIP 92171A 92171-1722 3
CLAMP 92173 92173-0861 1
CLAMP,SNAPPER 92173A 92173-0970 2
CLAMP,CABLE,28MM 92173B 92173-1062 2
CLAMP 92173C 92173-1891 1
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130B 130CA0612 1
HARNESS,MAIN 26031 26031-2615 1 US
