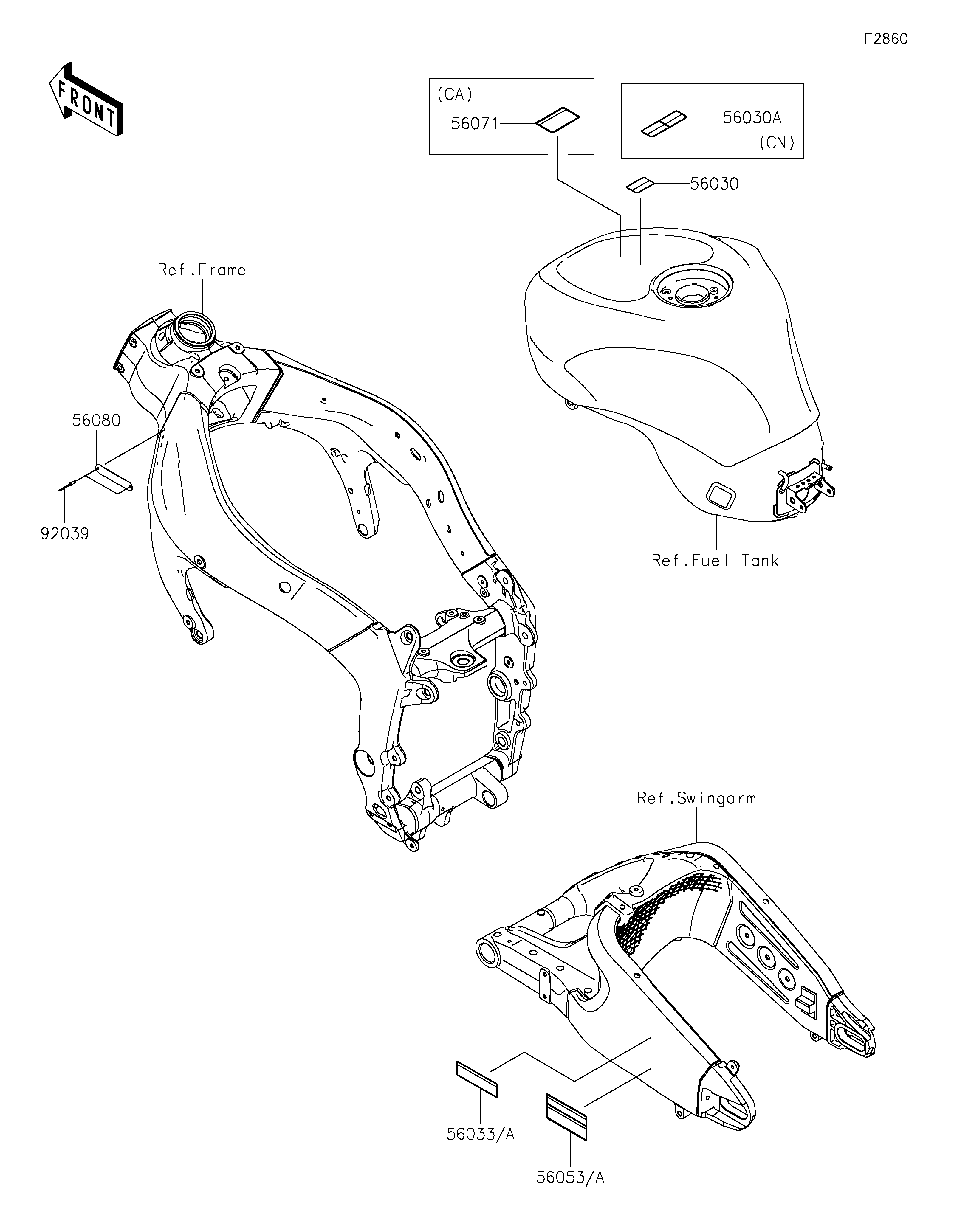

56030
56033
56053
56071
56080
92039
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,GASOLINE 56030 56030-0357 1 _________________________________________CA,US
LABEL-MANUAL,CHAIN 56033 56033-1427 1
LABEL-SPECIFICATION,TIRE&LOAD 56053 56053-1572 1
LABEL-WARNING,EVAPO 56071 56071-0158 1 CA
LABEL-BRAND,KAWASAKI 56080 56080-1077 1
RIVET 92039 92039-1251 2
