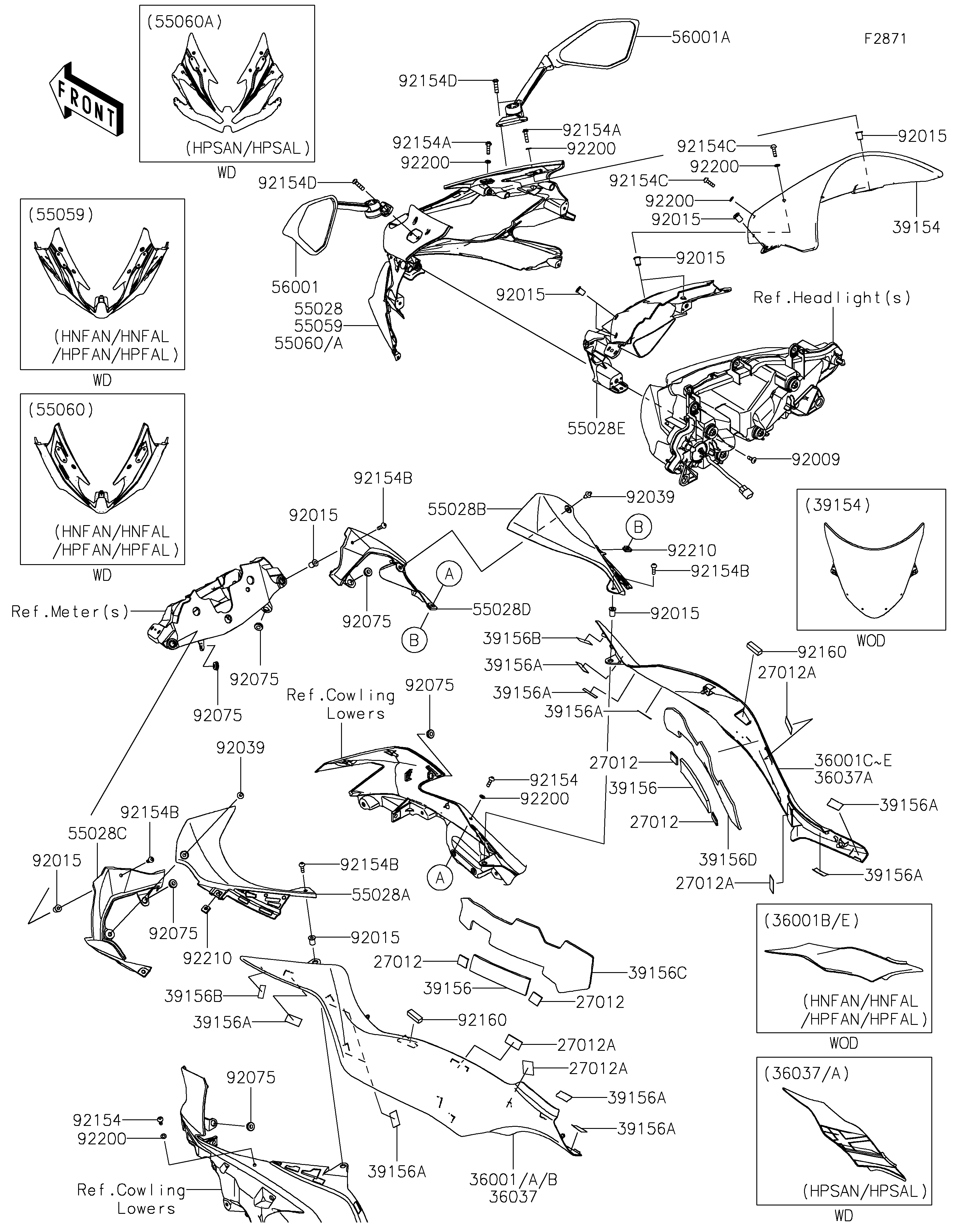

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOOK,20X20X3.0 | 27012 | 27012-0742 | 4 | ||
| HOOK | 27012A | 27012-0751 | 4 | ||
| COVER-SIDE,LH,M.F.S.BLACK | 36001A | 36001-0594-739 | 1 | ||
| COVER-SIDE,RH,M.F.S.BLACK | 36001D | 36001-0595-739 | 1 | ||
| WINDSHIELD | 39154 | 39154-0384 | 1 | ||
| PAD | 39156 | 39156-0536 | 2 | ||
| PAD,15X30X0.2 | 39156A | 39156-0979 | 10 | ||
| PAD,10X30X0.2 | 39156B | 39156-0980 | 2 | ||
| PAD,COVER FRAME,LH | 39156C | 39156-2410 | 1 | ||
| PAD,COVER FRAME,RH | 39156D | 39156-2411 | 1 | ||
| COWLING,UPP,M.M.T.BLUE | 55028 | 55028-0667-68M | 1 | ||
| COWLING,INNER,RR,LH | 55028A | 55028-0675 | 1 | ||
| COWLING,INNER,RR,RH | 55028B | 55028-0676 | 1 | ||
| COWLING,INNER,FR,LH | 55028C | 55028-0697 | 1 | ||
| COWLING,INNER,FR,RH | 55028D | 55028-0698 | 1 | ||
| COWLING,UPP,CNT | 55028E | 55028-0699 | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-0393 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-0394 | 1 | ||
| SCREW,TAPPING,5X14 | 92009 | 92009-1197 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 10 | ||
| RIVET | 92039 | 92039-0068 | 2 | ||
| DAMPER,6X16X7 | 92075 | 92075-1011 | 6 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 2 | ||
| BOLT,SOCKET,5X20 | 92154A | 92154-0210 | 4 | ||
| BOLT,SOCKET,5X16 | 92154B | 92154-1701 | 4 | ||
| BOLT,SOCKET,5X18 | 92154C | 92154-2107 | 2 | ||
| BOLT,SOCKET,6X22 | 92154D | 92154-3777 | 4 | ||
| DAMPER | 92160 | 92160-1183 | 2 | ||
| WASHER,5.2X10X1.0 | 92200 | 92200-1820 | 8 | ||
| NUT | 92210 | 92210-0571 | 2 |
