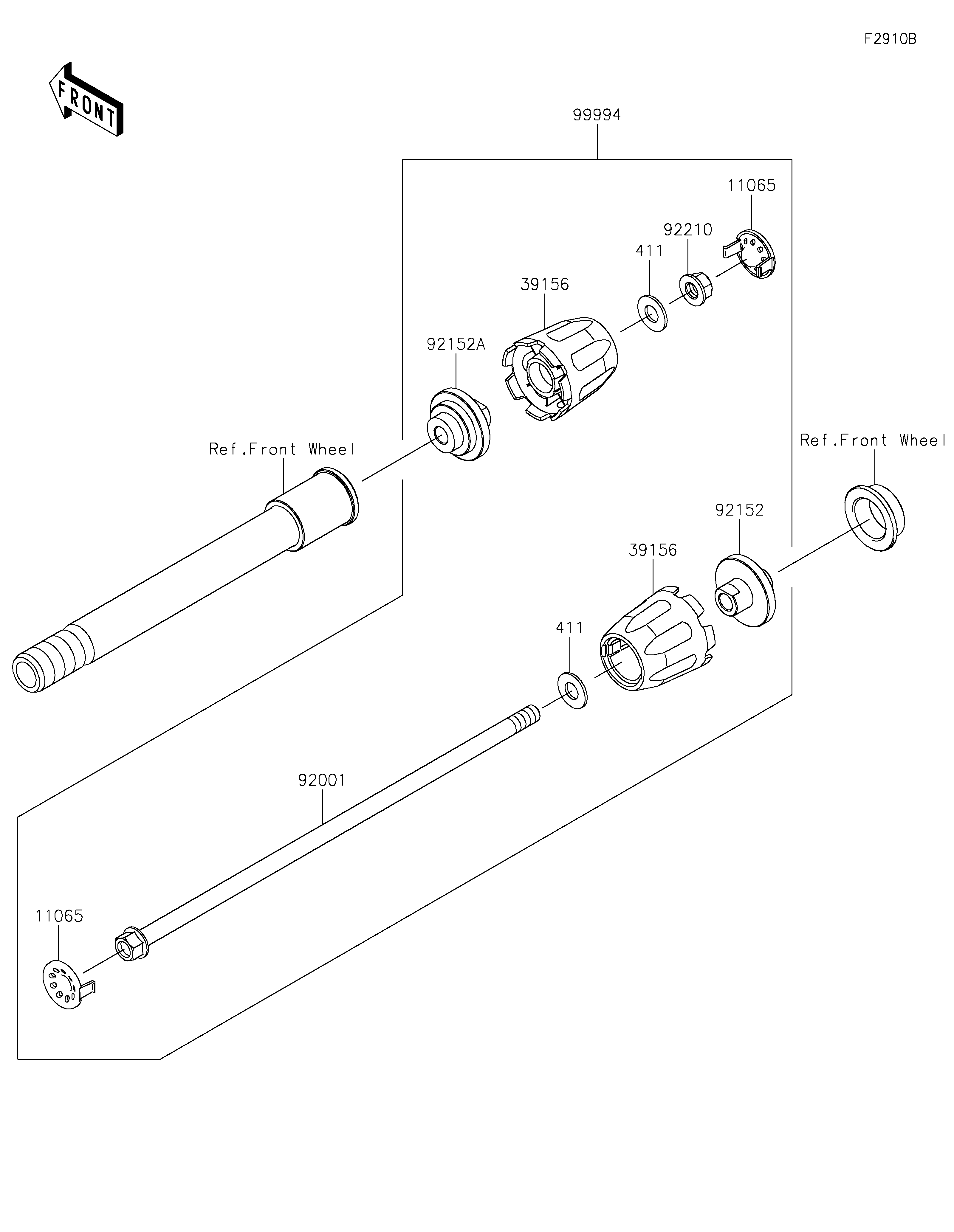

2022 Ninja ZX-6R (CA) - Accessory(Axle Slider)

11065
11065
39156
39156
92001
92152
92152A
92210
99994
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,B.SILVER 11065 11065-1313-54N 2
PAD,AXLE SLIDER 39156 39156-2212 2
BOLT,FLANGED,10X320,BLACK 92001 92001-1624 1
COLLAR,LH 92152 92152-2502 1
COLLAR,RH 92152A 92152-2503 1
NUT,LOCK,FLANGED,10MM 92210 92210-1139 1
FRONT AXLE SLIDER 99994 99994-1119 1
WASHER-PLAIN,10MM 411 411AA1000 2
