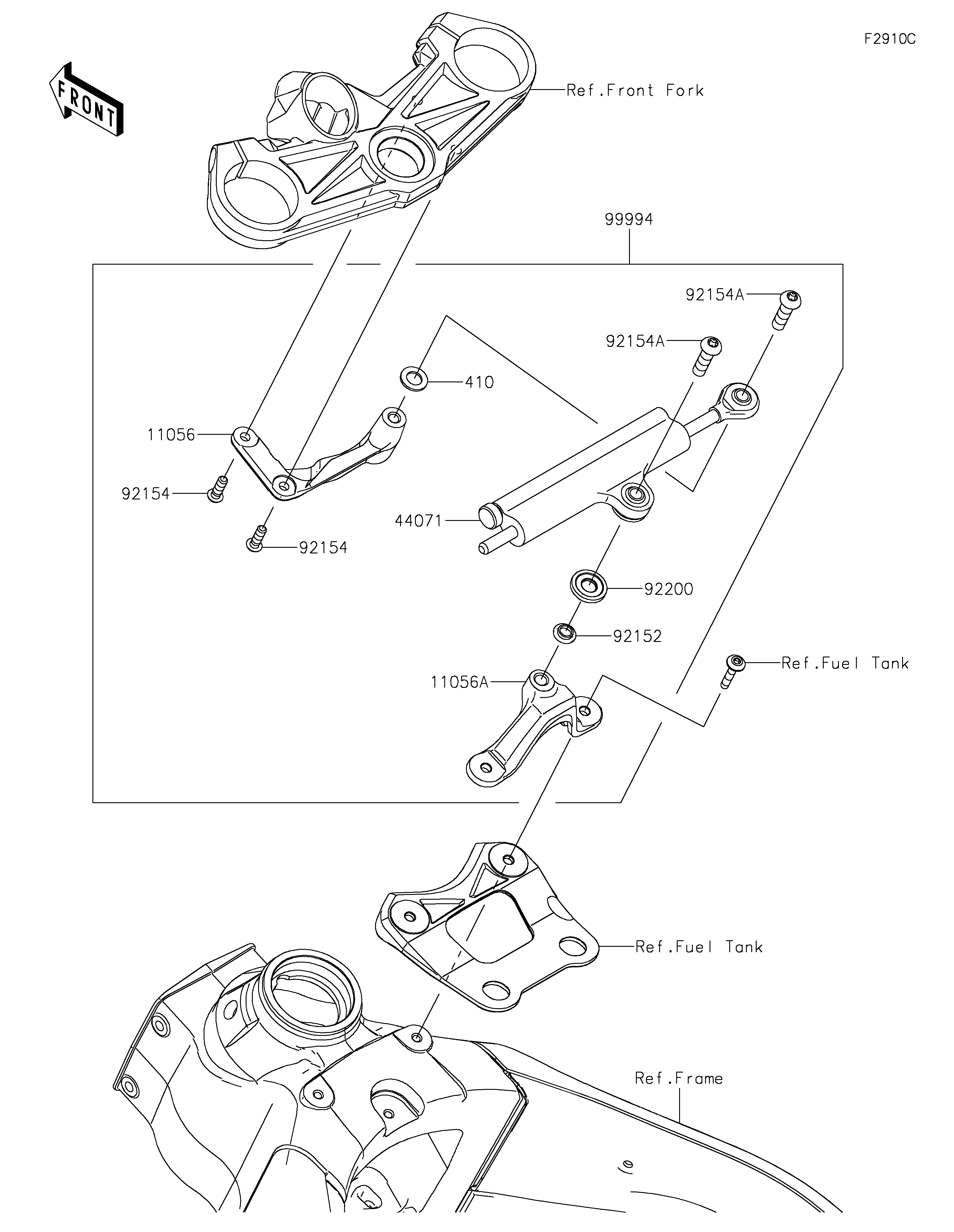

2022 Ninja ZX-6R (CA) - Accessory(Steering Damper)

11056
11056A
44071
92152
92154
92154
92154A
92154A
92200
99994
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-2308 1
BRACKET 11056A 11056-2315 1
DAMPER-ASSY,STEERING 44071 44071-0673 1
COLLAR,L=3.3 92152 92152-0834 1
BOLT,TORX,6X16 92154 92154-1188 2
BOLT,TORX,8X25 92154A 92154-1263 2
WASHER 92200 92200-0293 1
KIT-ACCESSORY,STRG. DAMPER 99994 99994-0350 1
WASHER-PLAIN-SMALL,8MM 410 410AA0800 1
