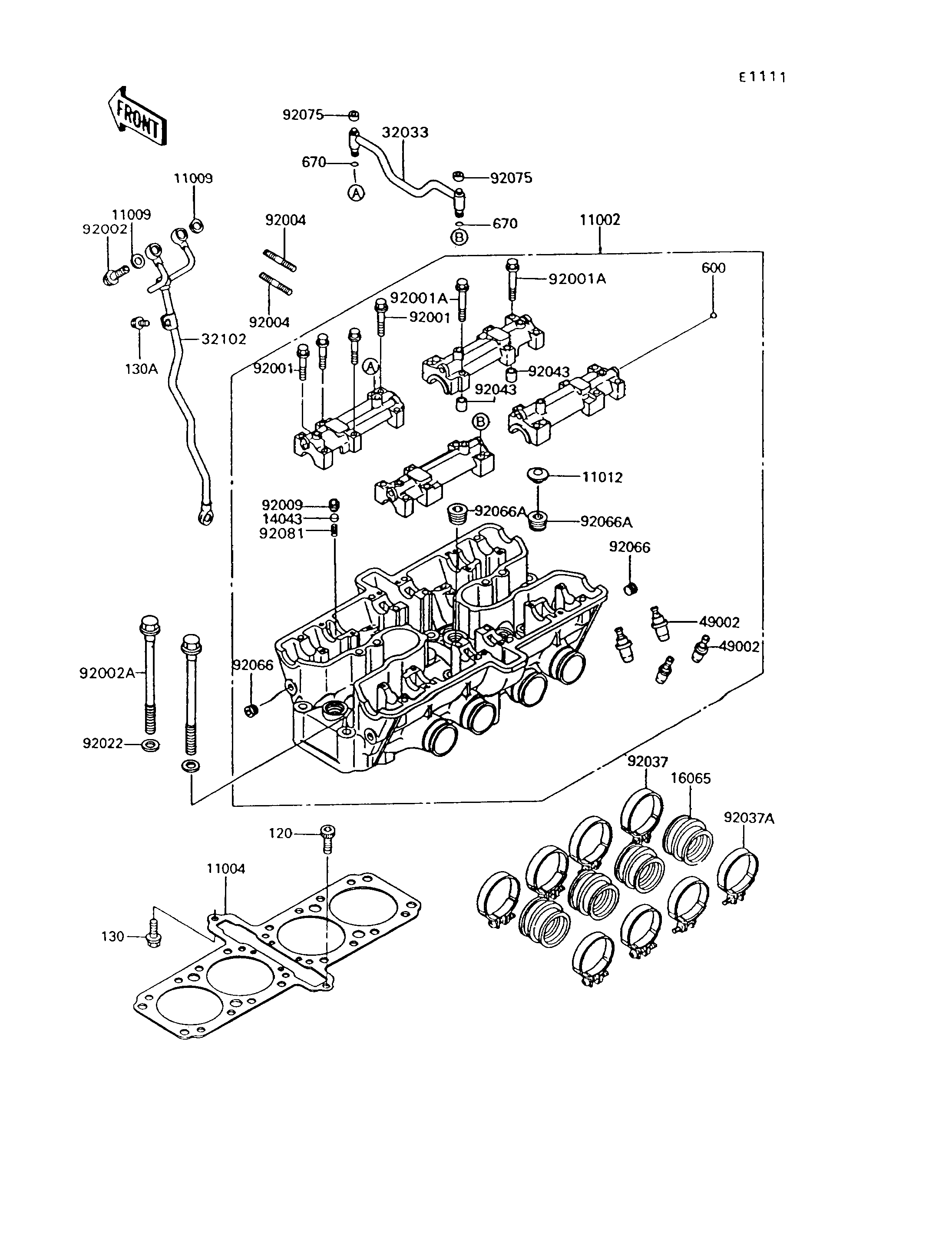

1992 Voyager XII - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
120
130
130A
600
670
670
11002
11004
11009
11009
11012
14043
16065
32033
32102
49002
49002
92001
92001
92001A
92001A
92002
92002A
92004
92004
92009
92022
92037
92037A
92043
92043
92066
92066
92066A
92066A
92075
92075
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X30 120 120P0830 1
BOLT-FLANGED,8X30 130 130G0830 1
BOLT-FLANGED,6X10 130A 130N0610 1
BALL-STEEL,1/4" 600 600A0800 8
O RING,6MM 670 670D1506 4
HEAD-ASSY-CYLINDER 11002 11002-1239 1
GASKET-HEAD 11004 11004-1146 1
GASKET,12.4X17X1.5 11009 11009-1376 6
CAP,PLUG 11012 11012-1493 2
FILTER,OIL 14043 14043-1056 4
HOLDER-CARBURETOR 16065 16065-1140 4
PIPE,OIL 32033 32033-1939 2
PIPE,OIL 32102 32102-1331 1
GUIDE-VALVE 49002 49002-1052 16
BOLT,FLANGED,6X38 92001 92001-1105 16
BOLT,6X46 92001A 92001-1872 8
BOLT,BANJO,12X27 92002 92002-1655 3
BOLT,11X164 92002A 92002-1660 12
STUD,8X28 92004 92004-1110 8
SCREW 92009 92009-1410 4
WASHER,11.5X20.5X1.6 92022 92022-1768 12
CLAMP 92037 92037-1523 4
CLAMP 92037A 92037-1843 4
PIN,6.2X8X14 92043 92043-1263 8
PLUG,OIL LINE,1/8X7 92066 92066-1227 4
PLUG 92066A 92066-1253 4
DAMPER,OIL PIPE 92075 92075-1802 4
SPRING 92081 92081-1943 4
