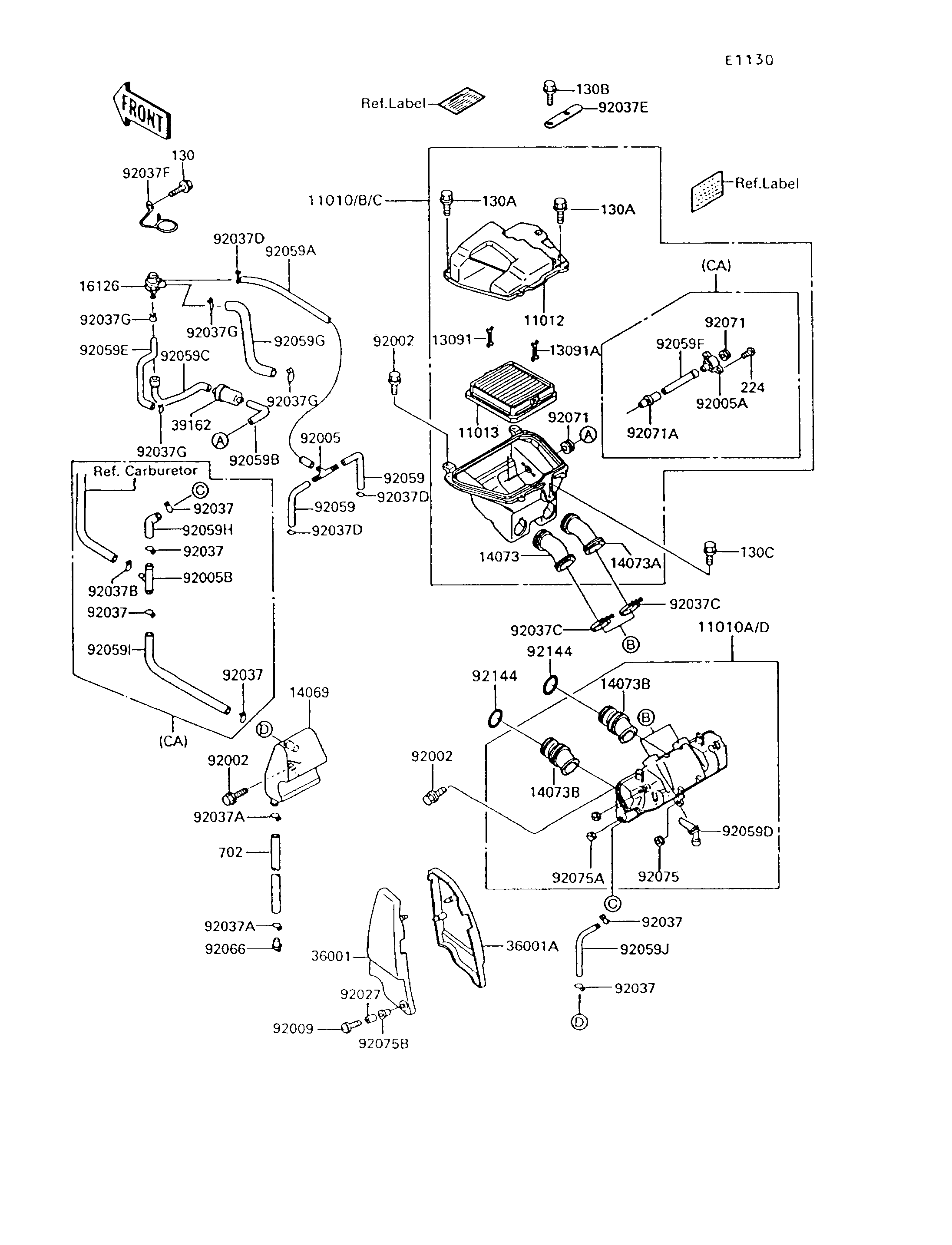

1992 Voyager XII - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11013
11013
11013
13091
13091
13091
13091A
13091A
13091A
14069
14069
14069
14073
14073
14073
14073A
14073A
14073A
14073B
14073B
14073B
14073B
14073B
14073B
16126
16126
16126
36001
36001
36001
36001A
36001A
36001A
39162
39162
39162
92002
92002
92002
92002
92002
92002
92002
92002
92002
92005
92005
92005
92009
92009
92009
92027
92027
92027
92037A
92037A
92037A
92037A
92037A
92037A
92037C
92037C
92037C
92037C
92037C
92037C
130
130
130
130A
130A
130A
130A
130A
130A
130B
130B
130B
92037D
92037D
92037D
92037D
92037D
92037D
92037D
92037D
92037D
92037E
92037E
92037E
92037F
92037F
92037F
92037G
92037G
92037G
92037G
92037G
92037G
92037G
92037G
92037G
92037G
92037G
92037G
92059
92059
92059
92059
92059
92059
92059A
92059A
92059A
92059B
92059B
92059B
92059C
92059C
92059C
92059D
92059D
92059D
92059E
92059E
92059E
92059G
92059G
92059G
92066
92066
92066
92071
92071
92071
92071
92071
92071
92075
92075
92075
92075A
92075A
92075A
92075B
92075B
92075B
92144
92144
92144
92144
92144
92144
130C
130C
130C
702
702
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,AIR FILTER 11012 11012-1490 1
ELEMENT-AIR FILTER 11013 11013-1137 1
HOLDER,FR 13091 13091-1420 1
HOLDER,RR 13091A 13091-1432 1
BREATHER,TANK 14069 14069-1053 1
DUCT,LH 14073 14073-1241 1
DUCT,RH 14073A 14073-1242 1
DUCT,CARBURETOR 14073B 14073-1255 4
VALVE,AIR SWITCH 16126 16126-1005 1
COVER-SIDE,AIR FILTER,LH 36001 36001-1334 1
COVER-SIDE,AIR FILTER,RH 36001A 36001-1335 1
SILENCER-INTAKE 39162 39162-1003 1
BOLT,6X16 92002 92002-1188 5
FITTING,TUBE,T-TYPE 92005 92005-1017 1
SCREW,6X22 92009 92009-1441 2
COLLAR,L=13.1,BLACK 92027 92027-1450 2
CLAMP,TUBE 92037A 92037-147 2
CLAMP 92037C 92037-1554 2
BOLT-FLANGED,6X12 130 130B0612 1
BOLT-FLANGED,6X16 130A 130B0616 4
BOLT-FLANGED 130B 130D0610 1
CLAMP 92037D 92037-1610 3
CLAMP 92037E 92037-1768 1
CLAMP 92037F 92037-1776 1
CLAMP,TUBE 92037G 92037-213 4
TUBE,4X9X155 92059 92059-1033 2
TUBE,VACUUM,LONG 92059A 92059-1162 1
TUBE 92059B 92059-1657 1
TUBE 92059C 92059-1658 1
TUBE 92059D 92059-1659 1
TUBE,AIR SWITCH VALVE,LH 92059E 92059-1668 1
TUBE,AIR SWITCH VALVE,RH 92059G 92059-1703 1
PLUG,DRAIN 92066 92066-1211 1
GROMMET,AIR FILTER 92071 92071-1028 1
DAMPER,FILTER COVER 92075 92075-1126 1
DAMPER 92075A 92075-1470 4
DAMPER,MALE 92075B 92075-174 2
SPRING,AIR FILTER DUCT 92144 92144-1771 4
BOLT-FLANGED,6X14 130C 130G0614 1
TUBE-RUBBER,7X10X120 702 702A07120 1
FILTER-ASSY-AIR,UPP 11010 11010-1273 1 US
FILTER-ASSY-AIR,LWR 11010A 11010-1274 1 US
FILTER-ASSY-AIR,UPP 11010B 11010-1297 1 CA
FILTER-ASSY-AIR,LWR 11010D 11010-1314 1 CA
FITTING 92005A 92005-1139 1 CA
FITTING 92005B 92005-1149 1 CA
CLAMP,HOSE 92037 92037-1104 2 US
CLAMP,HOSE 92037 92037-1104 4 CA
CLAMP,TUBE 92037B 92037-1482 1 CA
TUBE 92059F 92059-1699 1 CA
TUBE 92059H 92059-1742 1 CA
TUBE 92059I 92059-1743 1 CA
TUBE,7X12X230 92059J 92059-1750 1 US
GROMMET 92071A 92071-1132 1 CA
SCREW-PAN-WP-CROS 224 224C0614 2 CA
