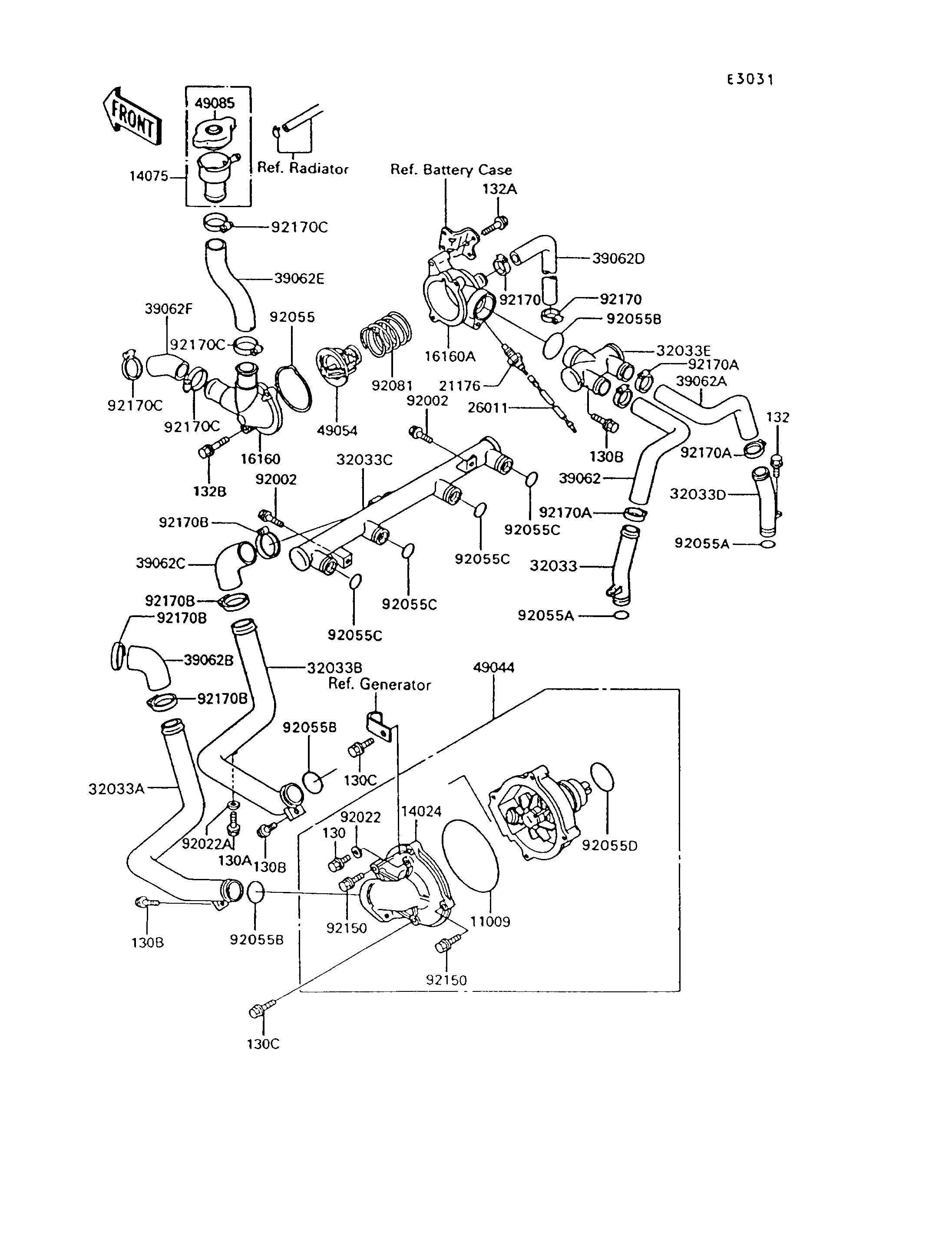

1992 Voyager XII - Water Pump

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
130B
130B
130B
130B
130B
130B
11009
11009
14024
14024
14075
14075
16160
16160
16160A
16160A
21176
21176
26011
26011
32033
32033
32033A
32033A
32033B
32033B
32033C
32033C
32033D
32033D
32033E
32033E
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
49044
49044
49054
49054
49085
49085
92002
92002
92002
92002
92022
92022
92022A
92022A
92055
92055
92055A
92055A
92055A
92055A
92055B
92055B
92055B
92055B
92055B
92055B
92055C
92055C
92055C
92055C
92055C
92055C
92055C
92055C
92055D
92055D
92081
92081
92150
92150
92150
92150
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92170A
92170A
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170C
92170C
92170C
92170C
92170C
92170C
92170C
92170C
130C
130C
130C
130C
132
132
132A
132A
132B
132B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10,BLACK 130 130C0610 1
BOLT-FLANGED,6X10 130A 130N0610 1
BOLT-FLANGED,6X12 130B 130N0612 3
GASKET,WATER PUMP 11009 11009-1621 1
COVER,WATER PUMP 14024 14024-1348 1
CAP-ASSY,RADIATOR 14075 14075-1083 1
BODY,THERMOSTAT,UPP 16160 16160-1103 1
BODY,THERMOSTAT,LWR 16160A 16160-1104 1
SENSOR,WATER 21176 21176-1054 1
WIRE-LEAD,SENSOR 26011 26011-1364 1
PIPE,HEAD,LH 32033 32033-1968 1
PIPE,HOSE-PUMP 32033A 32033-1934 1
PIPE,PUMP-HOSE 32033B 32033-1935 1
PIPE,CYLINDER 32033C 32033-1936 1
PIPE,HEAD,RH 32033D 32033-1933 1
PIPE,THERMOSTAT 32033E 32033-1990 1
HOSE-COOLING,LH 39062 39062-1149 1
HOSE-COOLING,RH 39062A 39062-1150 1
HOSE-COOLING,RADIATOR-PIPE 39062B 39062-1151 1
HOSE-COOLING,PIPE-PIPE 39062C 39062-1152 1
HOSE-COOLING,BY-PASS 39062D 39062-1153 1
HOSE-COOLING,THERMO-CAP 39062E 39062-1154 1
HOSE-COOLING,THERMO-RADIATOR 39062F 39062-1174 1
PUMP-WATER 49044 49044-1056 1
THERMOSTAT 49054 49054-1001 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
BOLT,FLANGED,6X12 92002 92002-1350 2
WASHER,6MM 92022 92022-1976 1
WASHER,6.2X11X1 92022A 92022-304 1
RING-O,THERMOSTAT 92055 92055-1324 1
RING-O,18.8X2.4 92055A 92055-1325 2
RING-O,27.6X3.2 92055B 92055-1328 3
RING-O,18.54X2.6 92055C 92055-1350 4
RING-O,33.2X2.4 92055D 92055-1424 1
SPRING,THERMOSTAT 92081 92081-1104 1
BOLT,6X22 92150 92150-1379 2
CLAMP,COOLING HOSE 92170 92170-1032 2
CLAMP,COOLING HOSE 92170A 92170-1034 4
CLAMP 92170B 92170-1036 4
CLAMP,COOLING HOSE 92170C 92170-1284 4
BOLT-FLANGED 130C 130N0645 2
BOLT-FLANGED-SMALL 132 132E0612 2
BOLT-FLANGED-SMALL 132A 132J0614 2
BOLT-FLANGED-SMALL 132B 132J0620 2
