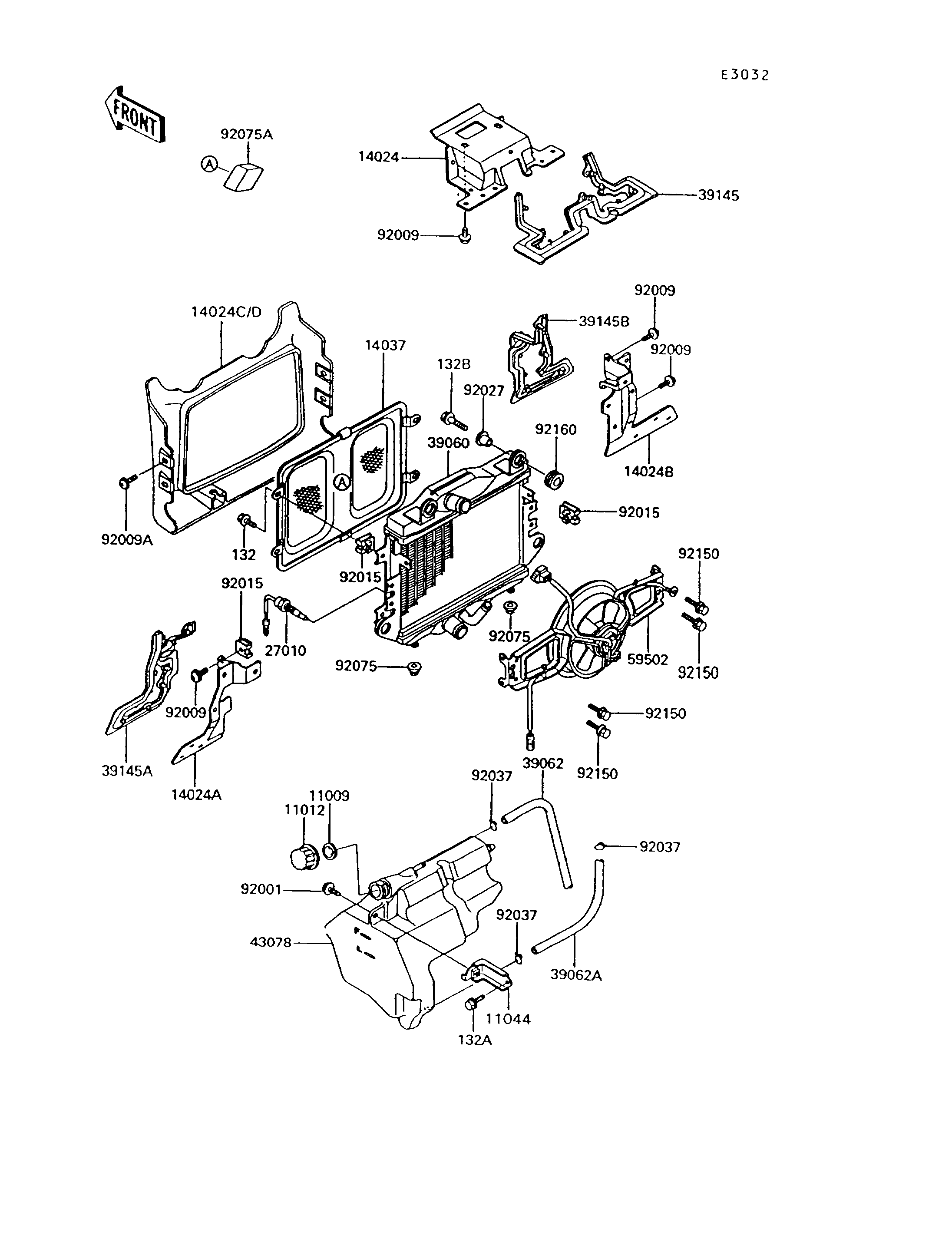

1992 Voyager XII - Radiator

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132B
11009
11012
11044
14024
14024A
14024B
14024C
14037
27010
39060
39062
39062A
39145
39145A
39145B
43078
59502
92001
92009
92009
92009
92009
92009A
92015
92015
92015
92027
92037
92037
92037
92075
92075
92075A
92150
92150
92150
92150
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X10 132 132J0610 4
BOLT-FLANGED-SMALL 132A 132J0612 1
BOLT-FLANGED-SMALL 132B 132J0825 2
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET,RESERVOIR 11044 11044-1744 1
COVER,RADIATOR UPP 14024 14024-1158 1
COVER,RADIATOR,LH 14024A 14024-1159 1
COVER,RADIATOR,RH 14024B 14024-1160 1
COVER,RADIATOR,EBONY 14024C 14024-1293-H8 1
SCREEN 14037 14037-1076 1
SWITCH,FAN 27010 27010-1180 1
RADIATOR 39060 39060-1066 1
HOSE-COOLING 39062 39062-1075 1
HOSE-COOLING,5.5X10.5X1160 39062A 39062-1155 1
TRIM-SEAL 39145 39145-1061 1
TRIM-SEAL,COVER,LH 39145A 39145-1063 1
TRIM-SEAL,COVER,RH 39145B 39145-1065 1
RESERVOIR 43078 43078-1067 1
FAN-ASSY 59502 59502-1060 1
BOLT,W/WASHER,6X12 92001 92001-1516 1
SCREW,6X18,BLACK 92009 92009-1181 6
SCREW,6X14 92009A 92009-1662 4
NUT 92015 92015-1487 6
COLLAR,L=14 92027 92027-1134 4
CLAMP,TUBE 92037 92037-147 3
DAMPER,RADIATOR GUARD 92075 92075-1469 2
DAMPER,SCREEN 92075A 92075-1981 1
BOLT,6X12 92150 92150-1186 4
DAMPER 92160 92160-1007 4
